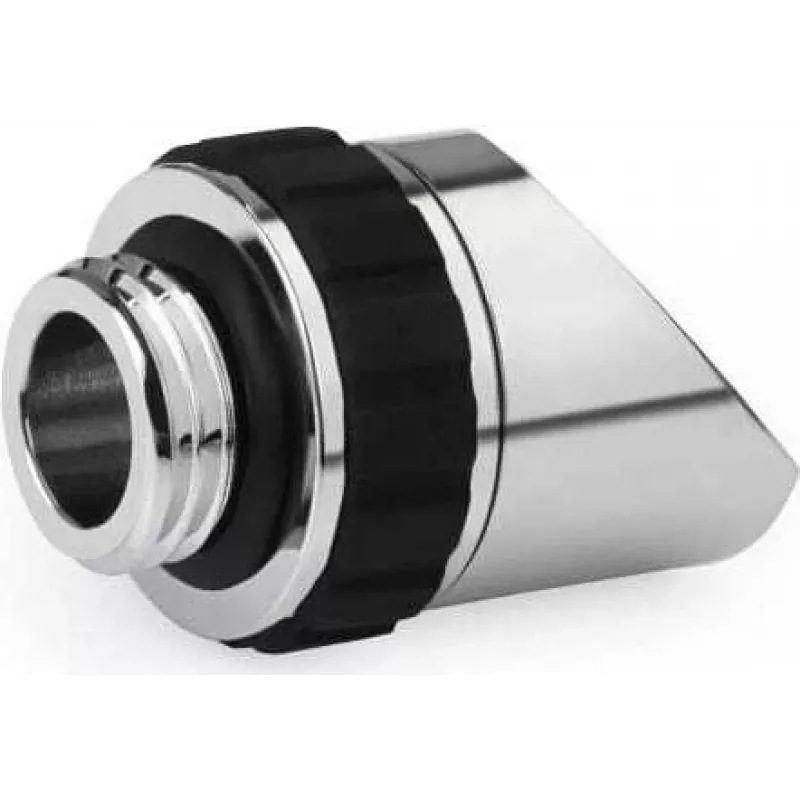

Alphacool Apex Grip 45° draaibare adapter G1/4 buitendraad naar binnendraad - chroom 14890

Rotatable 45° adapters are common, but the Alphacool Apex Grip stands out with its knurled grip ring and robust chrome-plated brass construction. This fitting solves tight bends in custom loops without kinking tubing, allowing you to position connections exactly where you need them—even in cramped cases.

Highlights

• 45° angled adapter with G1/4 male to female thread
• 360° rotatable joint for flexible tube routing
• Knurled grip surface for easy hand-tightening
• Durable chrome-plated brass body with EPDM O-rings
• Compatible with all standard PC water cooling components

In daily use

The Apex Grip adapter threads directly into any G1/4 female port—on radiators, blocks, reservoirs, or pumps—and provides a female G1/4 port at a 45° angle. The rotatable joint lets you orient the outlet in any direction, reducing stress on tubing and preventing leaks. The chrome finish resists corrosion and matches polished fittings, while the grip ring ensures a secure hold even with wet hands.

Full specifications

• Product type: Adapter fitting
• Angle: 45 degrees
• Thread: G1/4" male (AG) to G1/4" female (IG)
• Rotatable: Yes, 360°
• Material: Brass, chrome plated
• Colour: Chrome
• Seal type: EPDM O-rings
• Max operating temperature: 60 °C
• Max operating pressure: 1.5 bar
• Overall length: 31 mm
• Outer diameter: 23 mm
• Series: Alphacool Apex Grip
• Compatibility: PC water cooling systems

Final note

For builders who value both performance and aesthetics, the Apex Grip 45° adapter delivers leak-free reliability with a premium chrome look that complements any loop.
