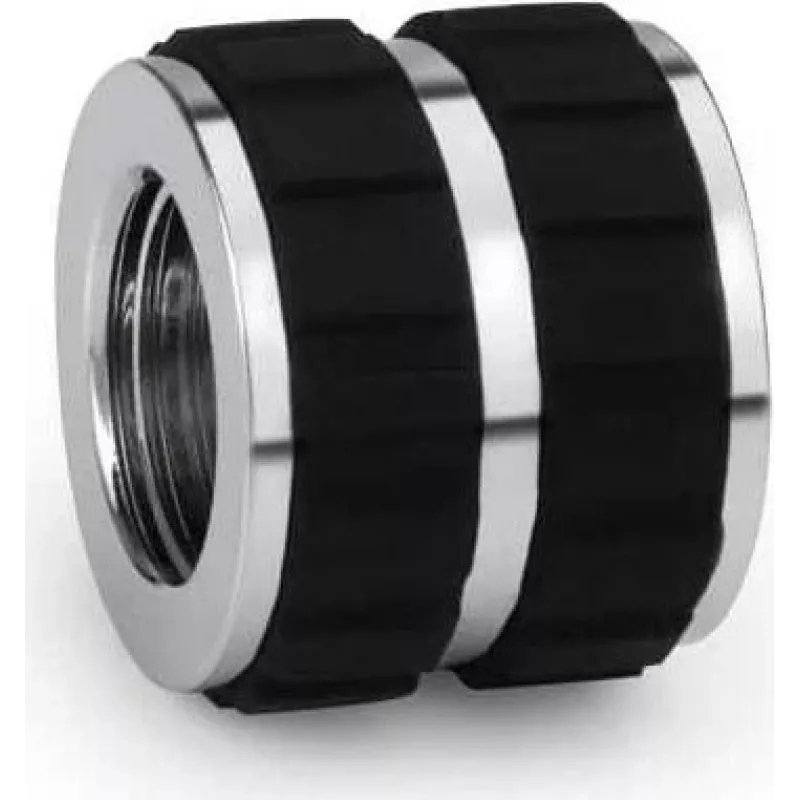

Alphacool Apex Grip aansluiting 16mm bus/bus G1/4 chroom (14946)

For builds where a standard G1/4 extender is too bulky or too short, the Alphacool Apex Grip Connector 16mm IG/IG G1/4 chrome delivers exactly the right amount of thread extension in a compact, knurled brass body. Its dual female G1/4 threads let you join two male G1/4 components directly, while the 16 mm overall length provides just enough clearance to avoid interference between adjacent fittings, blocks, or sensors. The chrome-plated finish not only looks clean in any loop but also adds a layer of corrosion resistance, making it a reliable choice for long-term water cooling setups.

Highlights

• Dual female G1/4 BSPP threads for connecting male-threaded components
• 16 mm overall length for precise spacing in tight areas
• Knurled outer surface for easy finger-tightening, even with wet hands
• Solid brass construction with chrome plating for durability and corrosion resistance
• Includes O-ring seal on each side for leak-free connections

In daily use

Installing the Apex Grip Connector is straightforward: screw one male G1/4 fitting into each end, then tighten by hand using the knurled grip. The O-rings compress to form a reliable seal, so you can attach components like temperature sensors, quick-disconnect couplings, or male-to-male adapters without the need for additional sealing tape. Because the connector is only 16 mm long, it adds minimal height to your loop, which is especially useful in compact cases or when mounting a pump/reservoir combo close to a radiator. The chrome surface resists tarnishing and wipes clean easily, keeping your build looking sharp over time.

Full specifications

• Brand: Alphacool
• Model: 14946
• MPN: 14946
• EAN: 4250197149464
• Product type: Connector / Extender
• Thread standard: G1/4" BSPP
• Thread type: Internal (female)
• Number of threads: 2
• Material: Brass
• Finish: Chrome plated
• Colour: Chrome
• Overall length: 16 mm
• Outer diameter: 23 mm
• Seal type: O-ring
• Compatibility: PC water cooling systems
• Application: Connecting male G1/4 components, extending thread length
• Design features: Knurled grip for easy installation

Final note

Whether you are building a custom loop from scratch or fine-tuning an existing setup, the Alphacool Apex Grip Connector gives you the precision and reliability needed for clean, leak-free connections in confined spaces.
