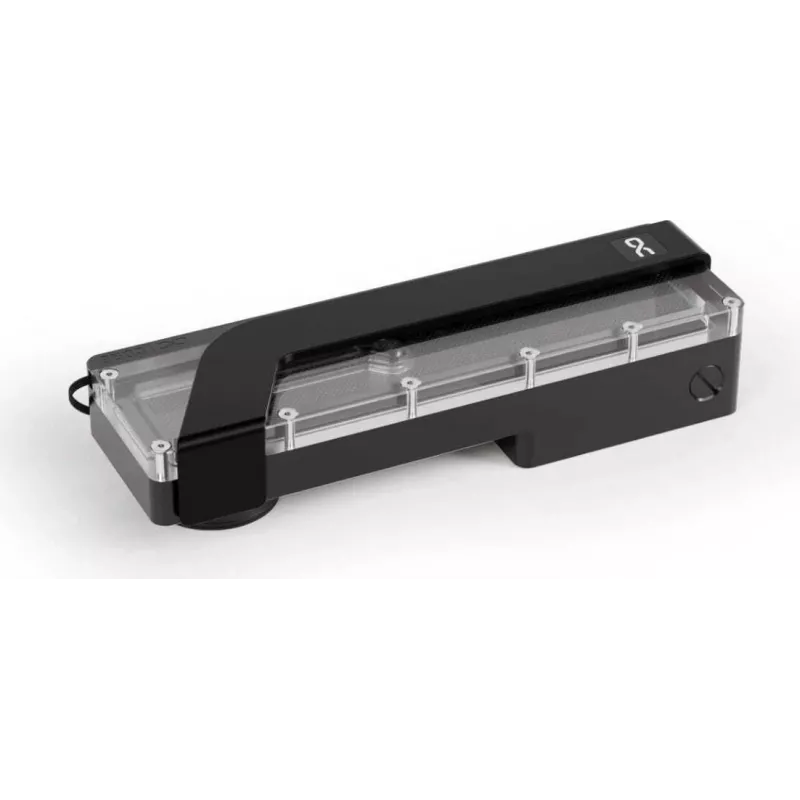

Alphacool Core 2x DDCzero Flat Reservoir 200 met pomp (14572)

Bulky reservoirs often clash with compact PC builds, leaving little room for a clean loop. The Alphacool Core 2x DDCzero Flat Reservoir 200 with Pump solves that by flattening the reservoir profile while still delivering solid flow and pressure for your cooling loop.

Who is it for

This unit is ideal for water-cooling enthusiasts who want a space-saving reservoir and pump combo without sacrificing performance. It suits small form factor cases, tight layouts, or anyone who values a tidy, low-profile loop.

Main features

• Flat PMMA reservoir body with acetal top and bottom for durability
• Integrated Alphacool DDCzero pump, pre-installed and ready to run
• Supports up to two DDCzero pumps for higher flow and redundancy
• Five G1/4" ports offer flexible loop routing and easy filling/draining
• Digital RGB lighting on the pump for a subtle glow
• Universal mounting holes fit 120 mm and 140 mm fan positions

Specifications

• Reservoir material: PMMA (acrylic)
• Top/bottom material: Acetal (POM)
• Pump type: Alphacool DDCzero
• Number of pumps included: 1 (supports 2)
• Reservoir capacity: approx. 100 ml
• Ports: 5x G1/4"
• Pump voltage: 12 V DC
• Power consumption: 6 W
• Max flow rate: 200 L/h
• Max head pressure: 1.8 m
• Pump connector: 4-pin PWM
• RGB connector: 3-pin JST (5 V, digital aRGB)
• Max operating temperature: 60 °C
• Max operating pressure: 0.8 bar
• Mounting: universal (120/140 mm fan compatible)

Tips

When filling the loop, use the integrated fill port on top and tilt the case slightly to help air escape. For best results, pair with a quality coolant and regularly check the O-rings for wear. If you need extra flow, a second DDCzero pump can be added to the same housing.
