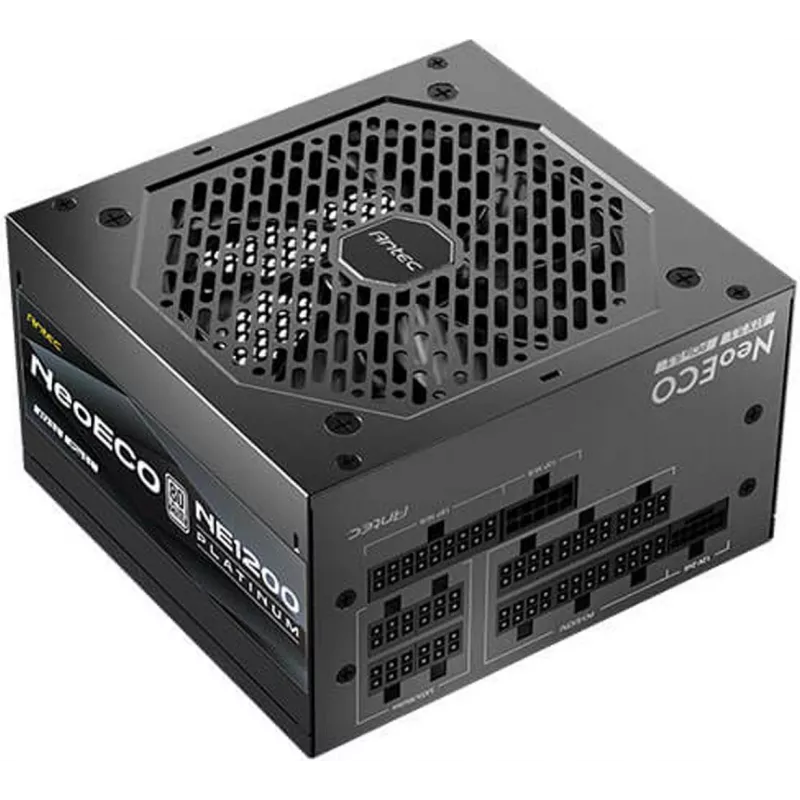

Antec NE1200P EC Voeding 1200W - PC/Server-voeding

The Antec NE1200P EC is a high-performance 1200W power supply designed for demanding PC and server builds. With 80 PLUS Platinum efficiency and fully modular cabling, it delivers reliable, clean power while minimizing heat and noise. Built with 100% Japanese capacitors and a fluid dynamic bearing fan, this PSU ensures long-term stability and durability.

Advantages

Exceptional 80 PLUS Platinum efficiency reduces energy waste and lowers operating costs. Fully modular design allows you to connect only the cables you need, improving airflow and simplifying cable management. The 120mm FDB fan operates quietly even under load, and the comprehensive protection suite safeguards your components.

Suitable for

• High-end gaming PCs with multiple GPUs
• Workstations and content creation rigs
• Server and NAS systems requiring stable power
• Enthusiast builds demanding top-tier efficiency

Key specifications

• Total Power: 1200W
• Efficiency: 80 PLUS Platinum
• Modularity: Fully Modular
• Form Factor: ATX
• Fan Diameter: 120mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• Capacitors: 100% Japanese
• PFC Type: Active PFC
• Input Voltage: 100-240 VAC
• Input Frequency: 50-60 Hz
• MTBF: 100,000 hours
• Protection Features: OCP, OVP, UVP, SCP, OPP, OTP, NLO, SIP
• ATX Connector: 1x 24-pin
• EPS (CPU) Connectors: 2x 4+4-pin
• PCIe (GPU) Connectors: 8x 6+2-pin
• SATA Connectors: 12x
• Molex Connectors: 5x 4-pin
• Operating Temperature: 0 - 50 °C
• Warranty: 10 Years
• Safety Certifications: cTUVus, TUV, CB, CE, FCC, KC, RCM, EAC, CCC, BSMI, UKCA

Recommendations

For users building a high-power system with multiple graphics cards or a server requiring stable 24/7 operation, the Antec NE1200P EC is an excellent choice. Its Platinum efficiency and fully modular design make it a future-proof investment.
