Name: be quiet! Dark Power 13 voeding 1000 W 20+4 pin ATX ATX zwart
Brand: BE QUIET
SKU: 28172
Price: 407.78 EUR
Availability: InStock

be quiet! Dark Power 13 voeding 1000 W 20+4 pin ATX ATX zwart

0 reviews • Review schrijven

407,78 €

Je ontvangt +1,53 €

DARK POWER 13 1000WNO COMPROMISE SILENCE AND PERFORMANCEThe be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.80 PLUS® TITANIUM CERTIFIEDThe highest efficiency certificate availableDark Power 13 100... Lees meer

Aantal

In winkelwagen

Op verlanglijst Vergelijk dit product

Voorraad 3 Code 28172 Merk BE QUIET Model BN335 Garantie 2 jaar

Bezorging & retourneren

Verwachte bezorgdatum dinsdag 3 november

Je blijft op de hoogte via ons uitgebreide trackingsysteem

Betaalopties

BetaalkaartVisaMastercardPayPalApple PayGoogle PayBankoverschrijving

Snel bekijken

Voeding White Shark GPSU-W500F Captain 3 500W

59,99 €

Excl. btw:49,58 €

In winkelwagen Op verlanglijst Vergelijk dit product

$Voeding fractal design FDE Ion 3 GOLD 850W 80+ Gold, zwart$

Snel bekijken

Voeding fractal design FDE Ion 3 GOLD 850W 80+ Gold, zwart

137,57 €

Excl. btw:113,70 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Antec GSK750 V2 EC - 750W 80+ Gold volledig modulair ATX 3.1 (0-761345-20139-1)

129,38 €

Excl. btw:106,93 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Voeding LC-Power Platinum Series LC850P V3.1 850W

130,35 €

Excl. btw:107,73 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Dell voeding (intern) - 280 Watt - PFC - refurbished - voor Dimension C521 (280 Watt)

109,57 €

Excl. btw:90,56 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Akyga AK-B1-500E Basic 500 W ATX-voeding, passieve PFC, 120mm-ventilator, grijs

26,67 €

Excl. btw:22,04 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Voeding Seasonic CORE BC-650 650W ATX 20+4-pins, 80 PLUS Bronze, zwart, 120mm-ventilator

58,76 €

Excl. btw:48,56 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Voeding MSI MAG A650BN PCIE5 II 650W 20+4 pin ATX 80 PLUS Bronze zwart

76,21 €

Excl. btw:62,98 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

Voeding DeepCool GAMERSTORM PQ850G WH 850W, 120mm ventilator, volledig modulair, 80+ Gold, ATX 3.1, wit

117,71 €

Excl. btw:97,28 €

In winkelwagen Op verlanglijst Vergelijk dit product

Snel bekijken

FSP MEGA TI 1350W voeding ATX ATX3.1 zwart, 1350 W, 100 - 240 V, 50/60 Hz, 8 - 15 A, 120 W, 1350 W

350,87 €

Excl. btw:289,98 €

In winkelwagen Op verlanglijst Vergelijk dit product

DARK POWER 13 1000W
NO COMPROMISE SILENCE AND PERFORMANCE
The be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.

80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power 13 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Dark Power 13 offers 1000W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

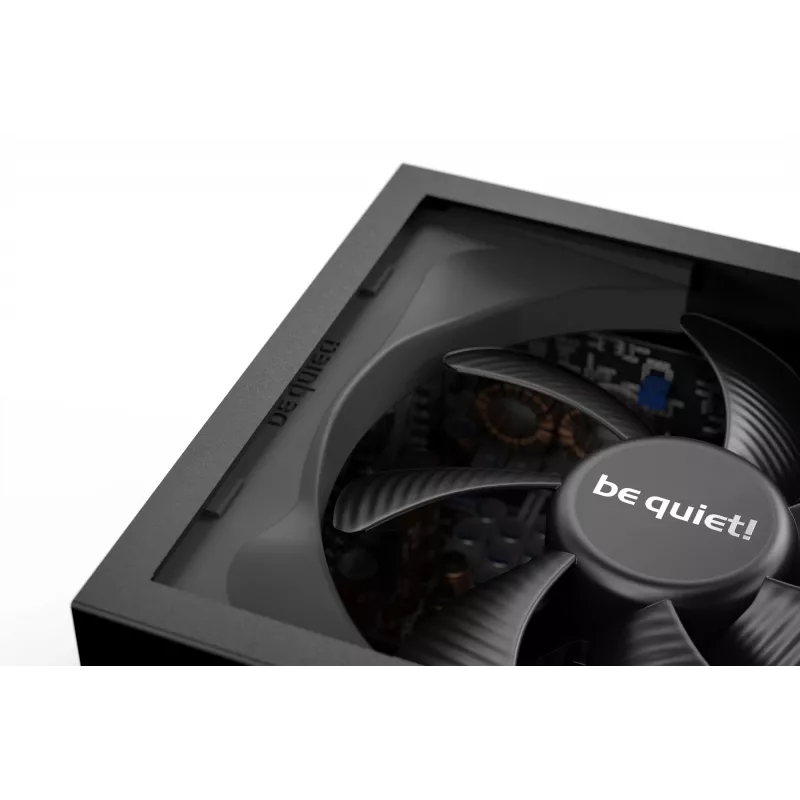

FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power 13 1000W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.

READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power 13 1000W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.

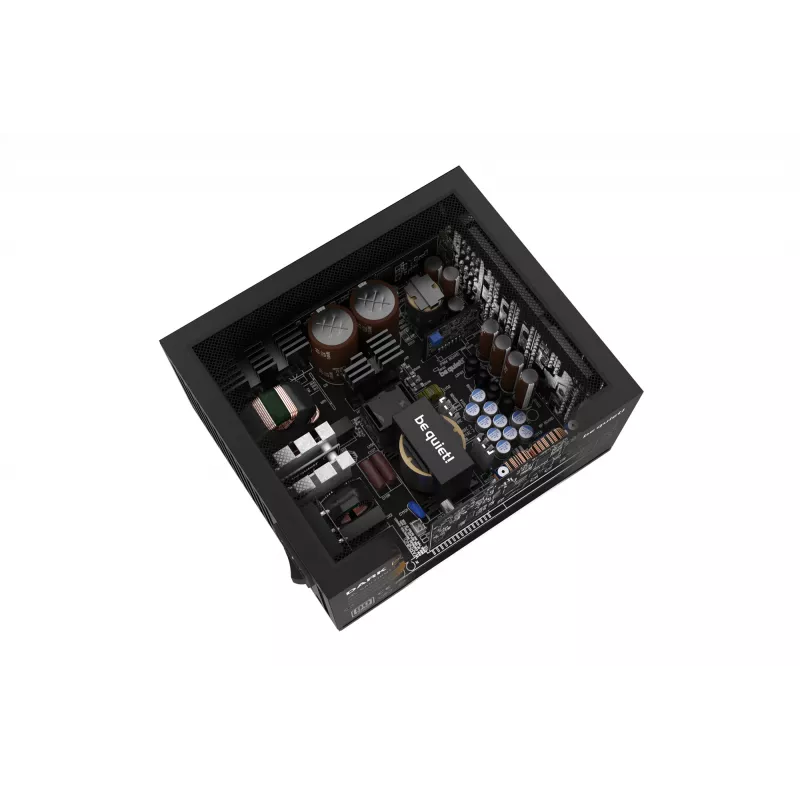

WORLD CLASS TOPOLOGY
State-of-the-art technology for extremely high efficiency
With an active rectifier and full bridge LLC technology Dark Power 13 1000W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power 13 1000W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.

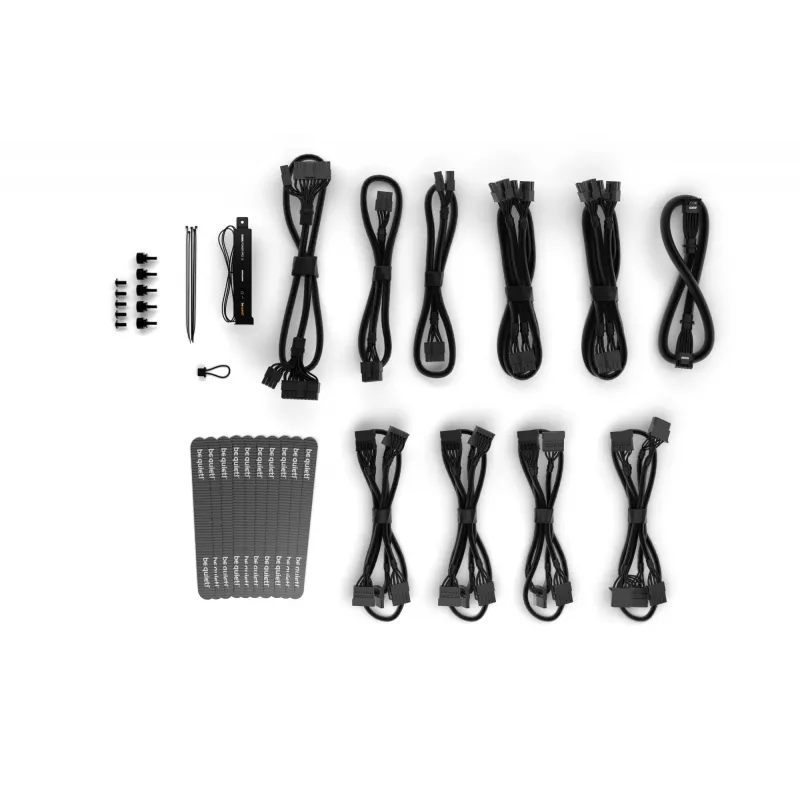

HIGHEST CONVENIENCE AND BEST CONNECTIVITY
Modular cables
Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases

How to use

Install the PSU into a compatible ATX case following the case and motherboard manufacturer guidelines. Connect the 20+4 pin ATX cable to the motherboard, attach required PCIe power connectors to the graphics card (use the native 12VHPWR connector for supported next-gen GPUs), and connect SATA/Molex cables to drives as needed. Use the modular cable system to route cables cleanly and improve airflow. Ensure AC mains are disconnected while connecting cables and secure the PSU with the supplied screws.

Recommendations

For optimal performance, place the PSU so the fan intake has clear airflow and use the overclocking key only when you need single-rail operation for high transient GPU/CPU loads. Keep firmware and GPU/MB power specs in mind when pairing with next-gen graphics cards and maintain good case ventilation to preserve component lifespan.

Belangrijkste kenmerken

High-end gaming PCs with current and next-generation graphics cards
Workstations requiring stable power for CPUs and GPUs under heavy load
Systems where low noise and high efficiency are priorities
Overclocked systems using the overclocking key for single-rail operation
Total power: 1000 W (continuous), peak power up to 1100 W
80 PLUS certification: Titanium
Efficiency: up to 95.2% (manufacturer stated), typical 93.3%
ATX standard: ATX 3.0 compliant; native 12VHPWR connector and PCIe 6+2-pin connectors
Motherboard connector: 20+4 pin ATX
Fan: Frameless Silent Wings, 135 mm
Modular sleeved cables: up to 120 cm length
Capacitors: Japanese 105°C rated
Weight: 2.03 kg
Input voltage: AC 100–240 V

Specificaties

80 PLUS-certificering

80 PLUS Titanium

Aantal PATA-stroomconnectoren

Aantal SATA-stroomconnectoren

Aantal ventilatoren

1 fan(s)

AC-ingangsfrequentie

50 - 60 Hz

AC-ingangsspanning

100 - 240 V

ATX-stroomconnector (20+4-pins)

Yes

ATX-versie

3.0

Breedte

150 mm

Breedte binnendoos

30.5 cm

Breedte verpakking

120 mm

Brutogewicht pallet (luchtvracht)

19.3 kg

Certificering

BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman

Conformiteitscertificaten

CCC, CE, RoHS, WEEE

Connector floppydrive

CPU P4-connector (4-pins)

CPU-voedingsaansluiting (4+4-pins)

Yes

Diepte

86 mm

Diepte verpakking

350 mm

Doel

Duurzaamheidscertificaten

ENERGY STAR, ErP

ECC

Yes

EPS-versie

2.92

Garantieperiode

10 year(s)

Gecombineerd vermogen (+12V)

996 W

Gecombineerd vermogen (+3,3V)

125 W

Gecombineerd vermogen (+5V)

125 W

Gecombineerd vermogen (+5Vsb)

15 W

Gecombineerd vermogen (-12V)

6 W

Geluidsniveau

25.8 dB

Gewicht

2.03 kg

Gewicht verpakking

4.48 kg

Hold-up time

23.2 ms

Hoogte

175 mm

Hoogte binnendoos

36.8 cm

Hoogte verpakking

270 mm

Ingangsstroom

13/6 A

Ingebouwd display

Kabelbinders inbegrepen

Yes

Kabellengte moederbordvoeding

60 cm

Kabels inbegrepen

DC, SATA

Kabeltype

Fully-Modular

Lagertechnologie

FDB

Led-indicatoren

Lengte binnendoos

50.4 cm

Lengte SATA-stroomkabel

1050 mm

Locatie ventilator

Top

Max. uitgangsstroom (+12V1)

32 A

Max. uitgangsstroom (+12V2)

32 A

Max. uitgangsstroom (+12V3)

40 A

Max. uitgangsstroom (+12V4)

40 A

Max. uitgangsstroom (+3,3V)

25 A

Max. uitgangsstroom (+5Vsb)

3 A

Max. uitgangsstroom (-12V)

0.5 A

Maximale ingangsstroom (@110V)

6 A

Maximale ingangsstroom (@220V)

13 A

Ondersteunde vormfactoren moederbord

ATX

PCI Express-stroomconnectoren (6+2-pins)

Perifere (Molex) stroomconnectoren (4-pins)

Piekvermogen

1100 W

Productkleur

Black

Rendement

93.3%

Stille modus

Yes

Stroombeveiligingsfuncties

Over current, Over voltage, Overheating, Short circuit, Under voltage

Totaalvermogen

1000 W

Type koeling

Active

Type Power Factor Correction (PFC)

Active

Type verpakking

Box

Ventilatordiameter

13.5 cm

Ventilatorsnelheid

0 - 1800 RPM

Verlichting

Vermogensfactor

Voedingsaansluiting moederbord

20+4 pin ATX

Vormfactor voeding (PSU)

ATX

WEEE-conformiteit (afgedankte elektr. en elektron. apparatuur)

Yes

Handleiding

Document openen

Folder

Document openen

Prijsverloop van de afgelopen 6 maanden

be quiet! Dark Power 13 voeding 1000 W 20+4 pin ATX ATX zwart

Actueel

407,78 €

Laagste

283,47 €

Hoogste

407,78 €

Wijziging 24 uur

+5,45 € +1%

Week

+14,06 € +4%

Maand

+42,78 € +12%

Onafhankelijke reviews van techmedia

nikktech.com2023-02-04

“The arrival of PCIe 5.0 compatible motherboards and graphics cards was obviously going to usher a new age in power supply units as well, not just with the addition of the new 16-pin 12VHPWR connectors (which are also available in some previous…”

Pluspunten

Excellent Build Quality
Solid Rail Stability
ATX 3.0 & PCIe 5.0
80 Plus Titanium Certified
Electrical Protections (OCP/OVP/SSP/OPP/UVP/OTP)
Low Noise Levels
Frameless Silent Wings 135mm Fan
Multi & Single Rail Mode (32A/40A & 83A)

Minpunten

Price (For Some)
Current Availability (USA)
