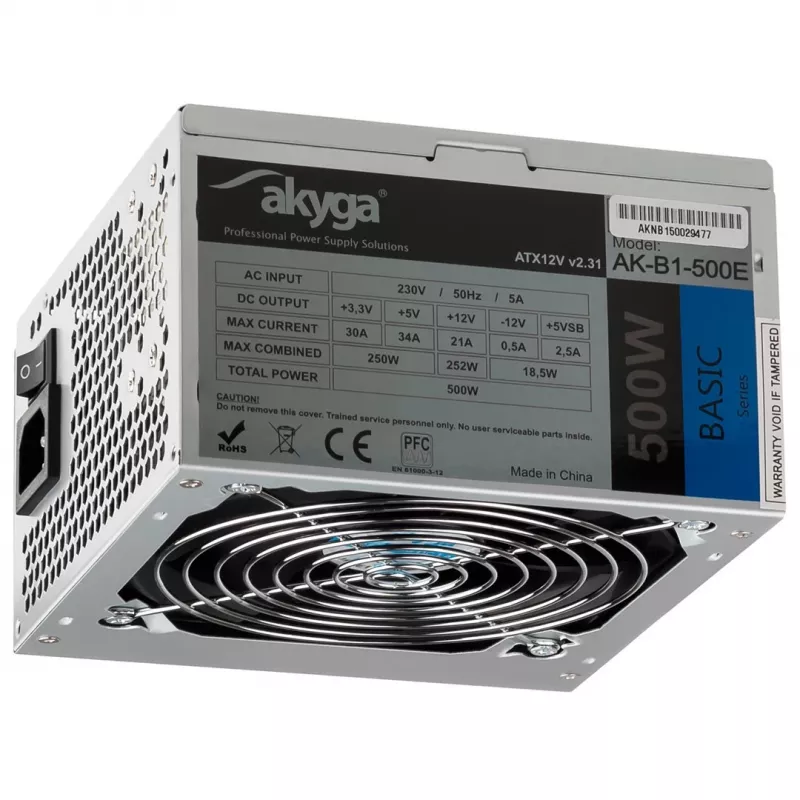

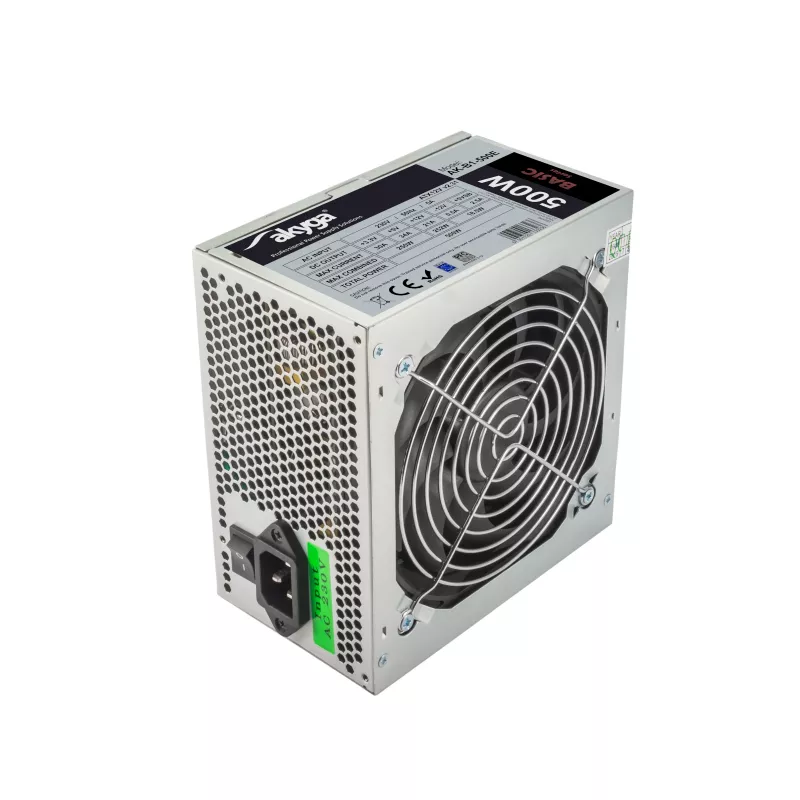

Akyga AK-B1-500E Basic 500 W ATX-voeding, passieve PFC, 120mm-ventilator, grijs

The Akyga AK-B1-500E is a 500 W ATX power supply designed for desktop computers. It features a 120 mm fan, passive PFC, and a non-modular cabling design.

Key features

• 500 W total power
• ATX 2.31 form factor
• 120 mm fan
• Passive PFC
• Non-modular cabling
• Manual on/off switch
• Power protection: OVP, OCP, OPP, OTP, SCP
• Grey colour

Specifications

• Purpose: PC
• Supported motherboard form factors: ATX
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Total power: 500 W
• AC input voltage: 220 V
• Input current: 5 A
• Power Factor Correction (PFC) type: Passive
• Combined power (+3.3V): 250 W
• Combined power (+5V): 250 W
• Combined power (+12V): 252 W
• Max output current (+3.3V): 30 A
• Max output current (+5V): 34 A
• Max output current (+12V): 21 A
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 3
• Peripheral (Molex) power connectors (4-pin): 2
• CPU P4 connector (4-pin): Yes
• EPS power connector (8-pin): No
• SATA power cable length: 300 mm
• Peripheral (Molex) power cable length: 300 mm
• Number of fans: 1 fan(s)
• Fan diameter: 120 mm
• Fan controller: Yes
• On/off switch: Yes
• Power protection features: Over voltage, Over current, Over power, Overheating, Short circuit
• Mean time between failures (MTBF): 100000 h
• Product colour: Grey
• Width: 150 mm
• Depth: 140 mm
• Height: 85 mm
• Weight: 1.01 kg
• Operating temperature (T-T): 5 - 50 °C
• Certification: CE, RoHS, REACH
• Compliance certificates: RoHS
• Manual: Yes
• Warranty card: Yes
• Power cord included: No
• Country of origin: China
