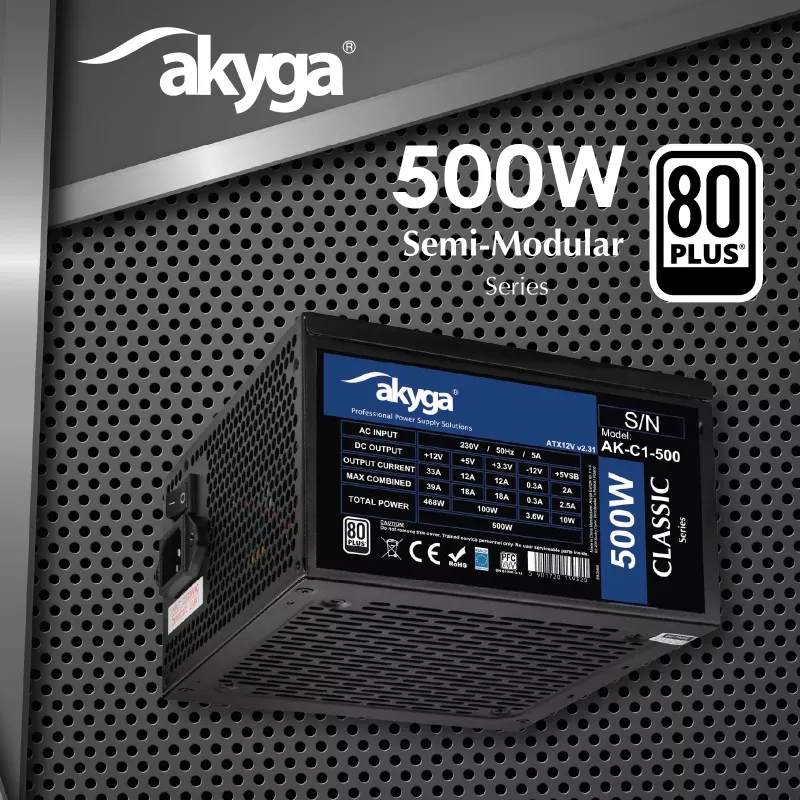

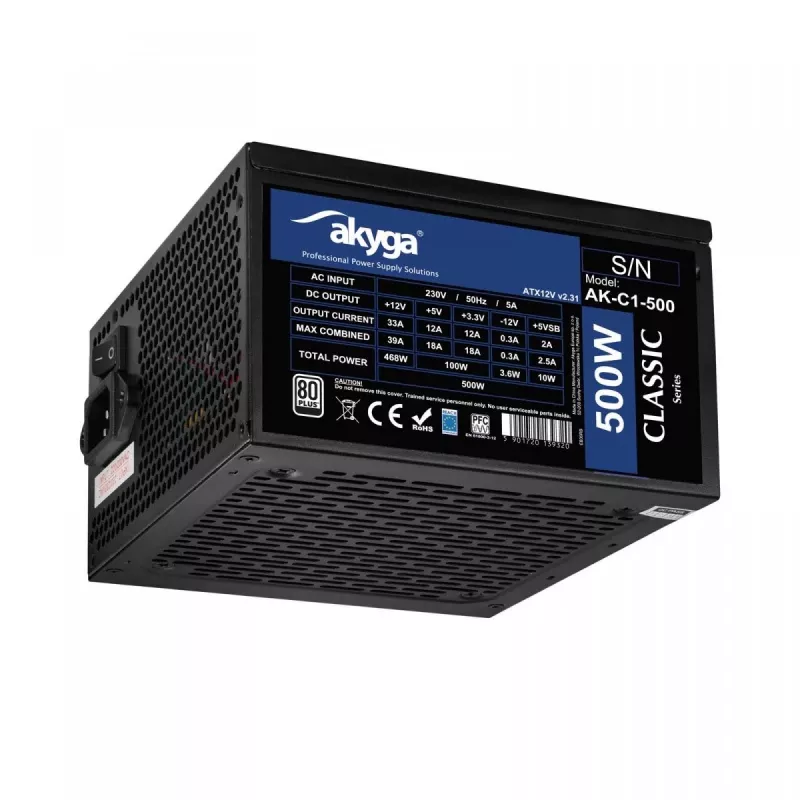

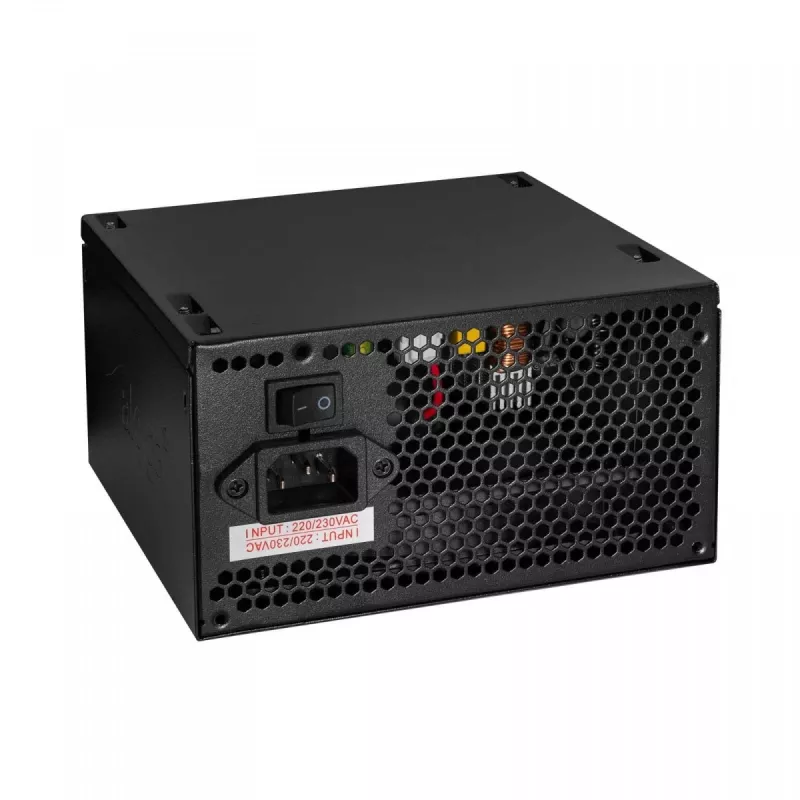

Akyga Classic AK-C1-500 ATX-voeding 500 W, 80 PLUS, actieve PFC, 120-mm-ventilator

The Akyga Classic AK-C1-500 is an ATX power supply delivering 500 W of true power with 80 PLUS certification and active PFC. It features a 120 mm fan and a comprehensive set of connectors on flat cables.

Key features

• 500 W true power output
• 80 PLUS certified for high energy efficiency
• Active PFC (APFC) filter
• Low-noise 120 mm fan

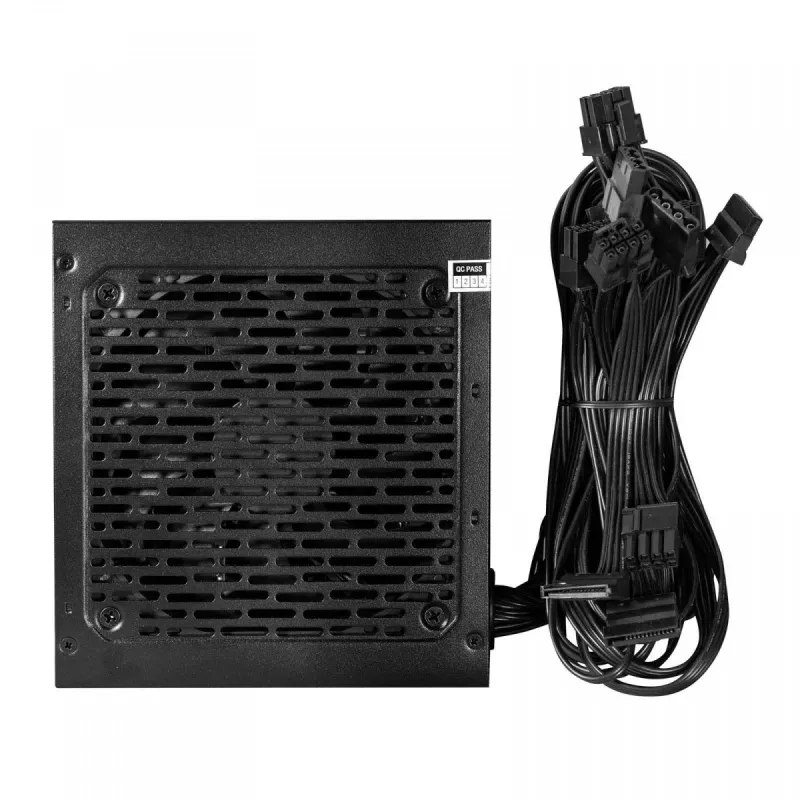

• Flat cables for easy cable management
• Protection mechanisms: OVP, OCP, OPP, OTP, SCP
• Non-modular design

Specifications

• Brand: Akyga
• Model: AK-C1-500
• Format: ATX 2.31
• Series: Classic
• Power supply: 500 W
• Max output current (+12V): 33 A
• Max load on 12V line: 468 W
• Current on +3.3V rail: 12 A
• Current on +5V rail: 12 A
• Max load on +3.3V and +5V line: 100 W
• Supply voltage: 230 V
• Power consumption: < 5 A
• Efficiency: > 80 %
• PFC: Active
• Fan: 12 cm
• Fan adjustments: Automatic

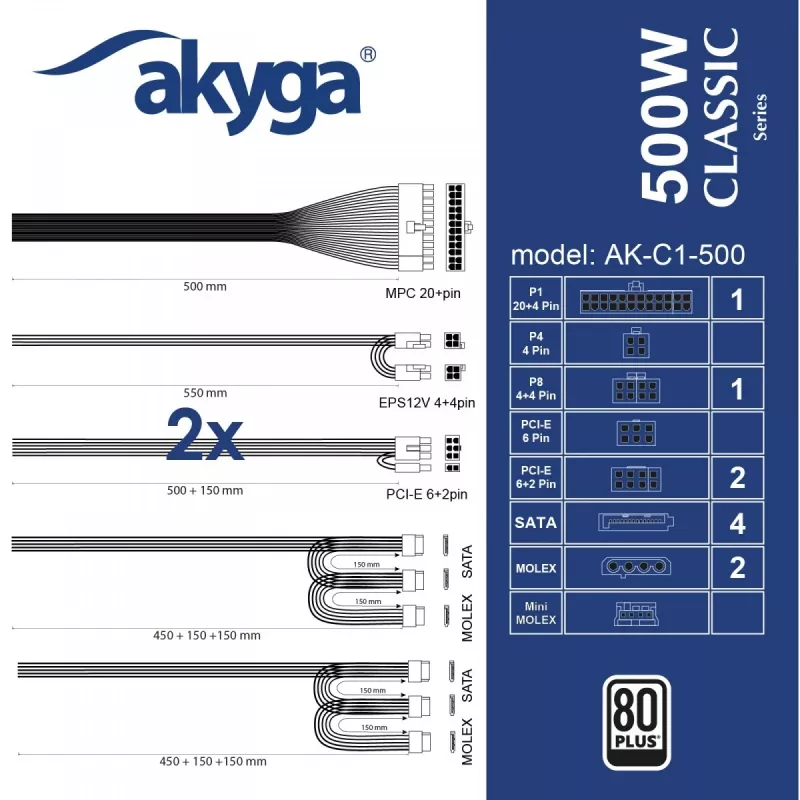

• Cable length: 45 - 75 cm
• MB power connector: 24 pin
• Number of power supply connector 4+4-pin 12V: 1
• Number of power supply connectors PCI-E 6+2 pin: 2
• SATA power connectors: 4
• MOLEX power connectors: 2
• Modular Power Supply: No
• Filters / protection: OVP, OCP, OPP, OTP, SCP
• Material: Galvanized steel
• Product color: Black
• Temperature: 5 - 50 °C
• Dimensions: 150 x 145 x 85 mm
• Weight: 1.32 kg
