Akyga Basic AK-B1-600 ATX-voeding 600 W, 120mm-ventilator, passieve PFC, grijs

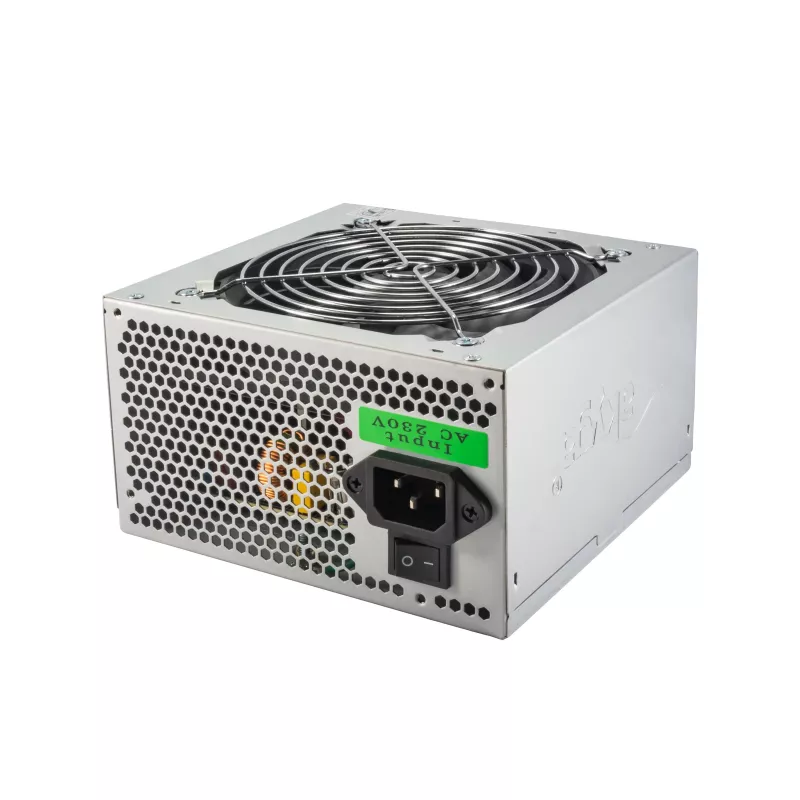

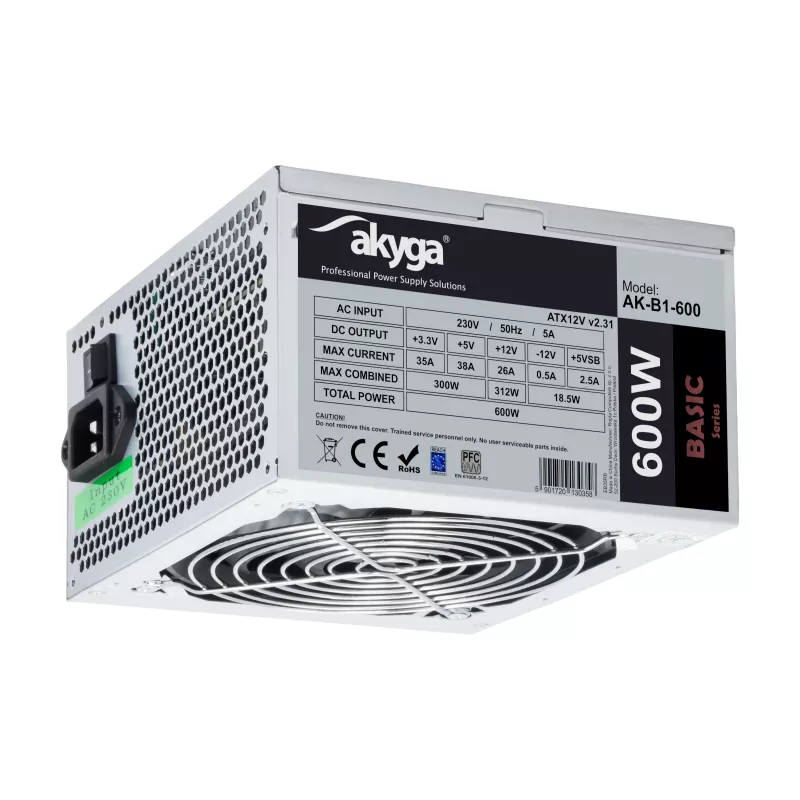

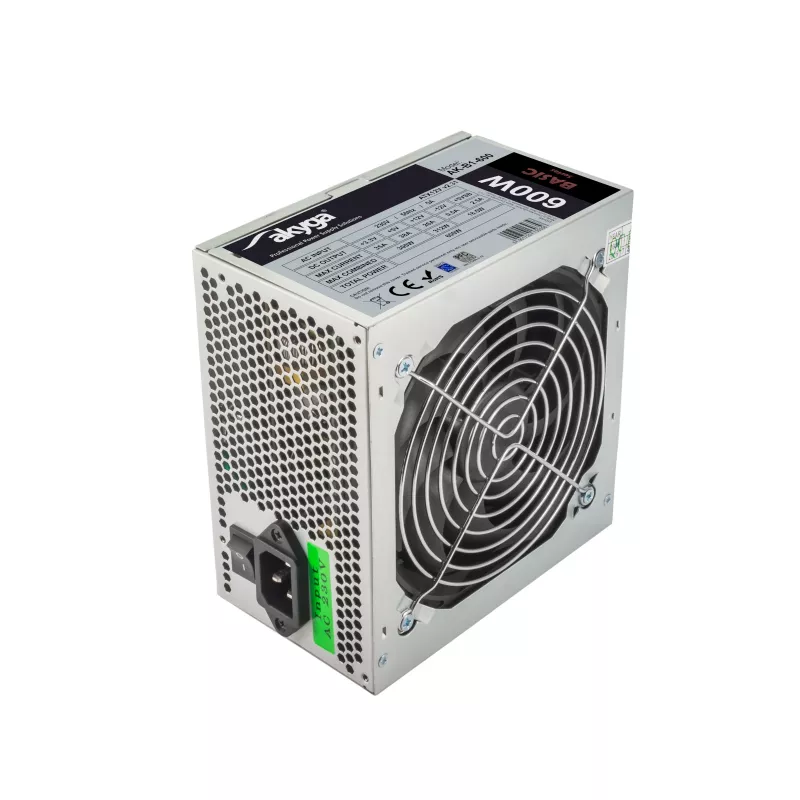

The Akyga Basic AK-B1-600 is a 600 W ATX power supply designed for desktop computers. It features a 120 mm fan, passive PFC, and a grey galvanized steel housing.

Key features

• 600 W total power
• 120 mm fan with automatic adjustment
• Passive PFC
• Non-modular cabling
• ATX 2.31 form factor
• Protection features: over current, over power, over voltage, overheating, short circuit
• Manual on/off switch
• MTBF: 100,000 hours

Specifications

• Product colour: Grey
• Material: Galvanized steel
• Dimensions (L x W x H): 140 x 150 x 85 mm
• Weight: 1.12 kg
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Input current: 5 A
• Efficiency: 70%
• Power Factor Correction (PFC) type: Passive

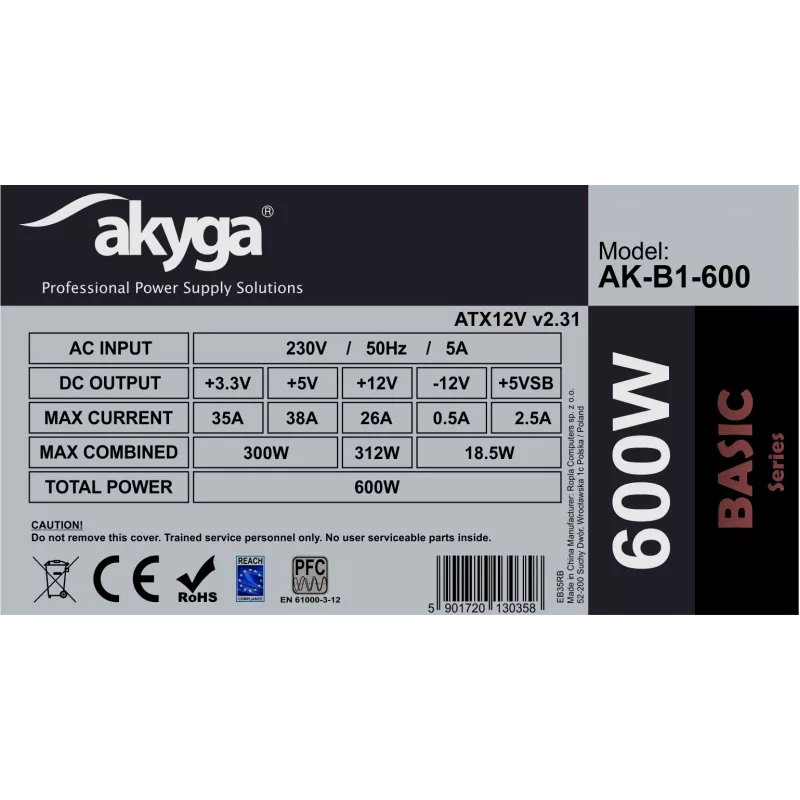

• Combined power (+3.3V): 300 W
• Combined power (+12V): 312 W
• Combined power (+5V): 300 W
• Combined power (-12V): 18.5 W
• Combined power (+5Vsb): 18.5 W
• Max output current (+3.3V): 35 A
• Max output current (+12V): 26 A
• Max output current (+5V): 38 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 4
• PCI Express power connectors (6+2 pin): 1
• Peripheral (Molex) power connectors (4-pin): 2
• EPS power connector (8-pin): No
• Operating temperature (T-T): 5 - 50 °C
• Certification: REACH, CE, RoHS
