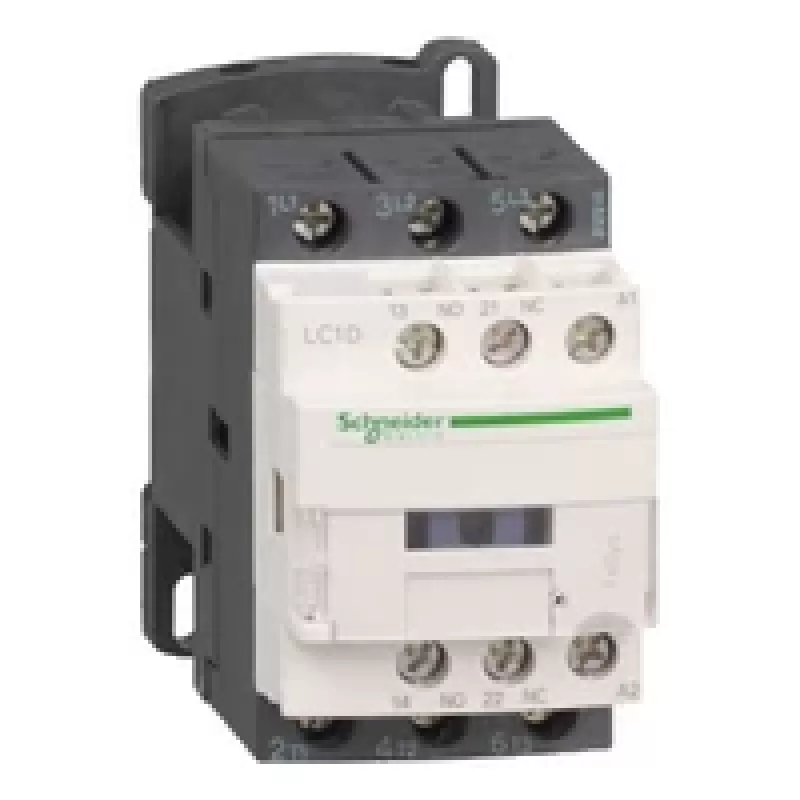

APC Schneider Electric LC1D12BD TeSys D contactor, 3P, 12A AC-3, 24V DC-spoel, 1NO+1NC hulpcontacten, schroefklemmen

The APC Schneider Electric LC1D12BD is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a compact design and robust construction, it ensures long-lasting performance in industrial environments.

Advantages

This contactor offers excellent electrical and mechanical durability, with up to 2 million electrical cycles and 15 million mechanical cycles. Its screw clamp terminals provide secure and easy wiring, while the IP20 protection ensures safety against solid objects. The 24V DC coil allows for efficient control in low-voltage systems.

Suitable for

• Motor starting and stopping in AC-3 applications up to 5.5 kW at 400/415V
• Resistive and lighting loads in AC-1 applications up to 25A
• Industrial automation and control panels
• DIN rail or plate mounting

Key specifications

• Product Type: Contactor
• Series: TeSys D
• Number of Poles: 3P
• Rated Operational Current (AC-3): 12 A at ≤60°C, ≤440V
• Rated Operational Current (AC-1): 25 A at ≤60°C, ≤690V
• Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 NO + 1 NC
• Motor Power (AC-3, 400/415V): 5.5 kW
• Mounting Type: Plate, DIN rail
• Terminal Type: Screw clamp terminals
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Insulation Voltage (Ui): 690 V (IEC 60947-4-1)
• Operating Temperature: -5...60 °C
• IP Rating: IP20
• Standards: IEC 60947, UL 508, CSA C22.2 No 14
• Electrical Durability (AC-3): 2 Mcycles
• Mechanical Durability: 15 Mcycles
• Power Dissipation per Pole (AC-1): 1.5 W
• Power Dissipation per Pole (AC-3): 0.8 W

Recommendations

For optimal performance, ensure the coil voltage matches your control system. Use appropriate overload relays and circuit protection devices. This contactor is suitable for a wide range of industrial applications requiring reliable switching.
