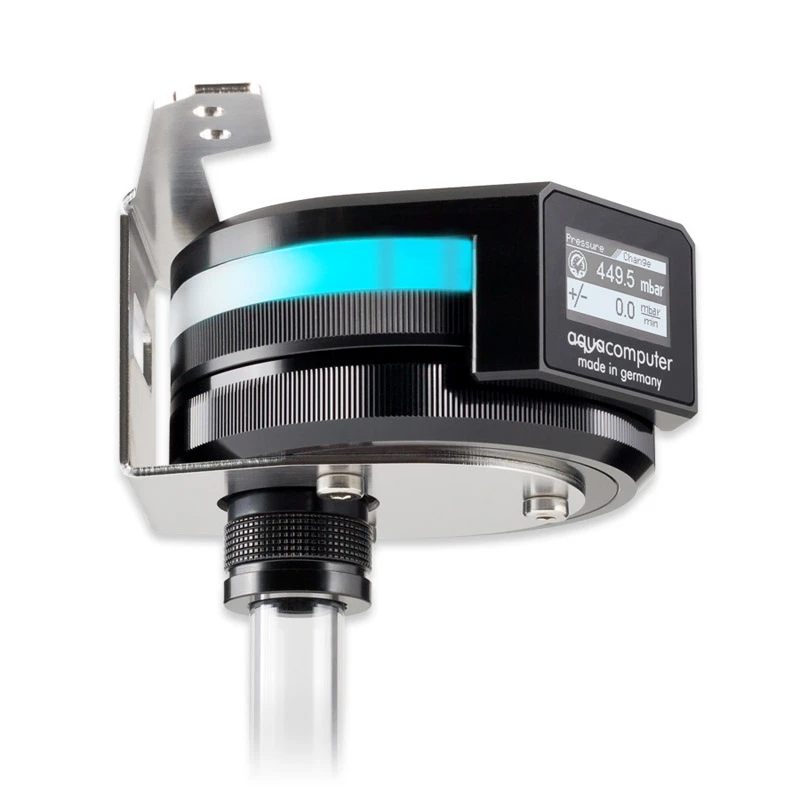

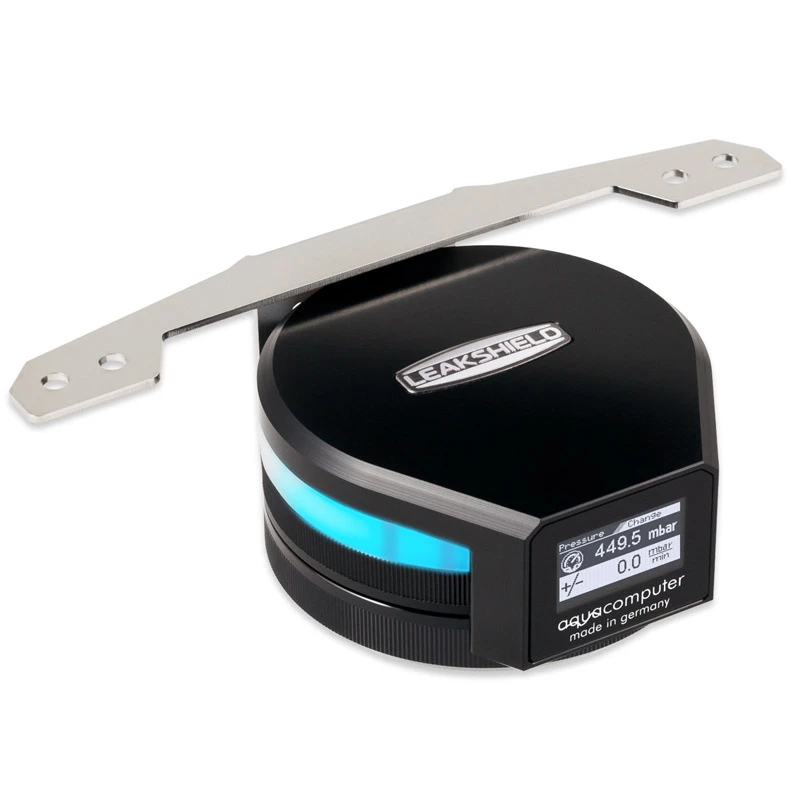

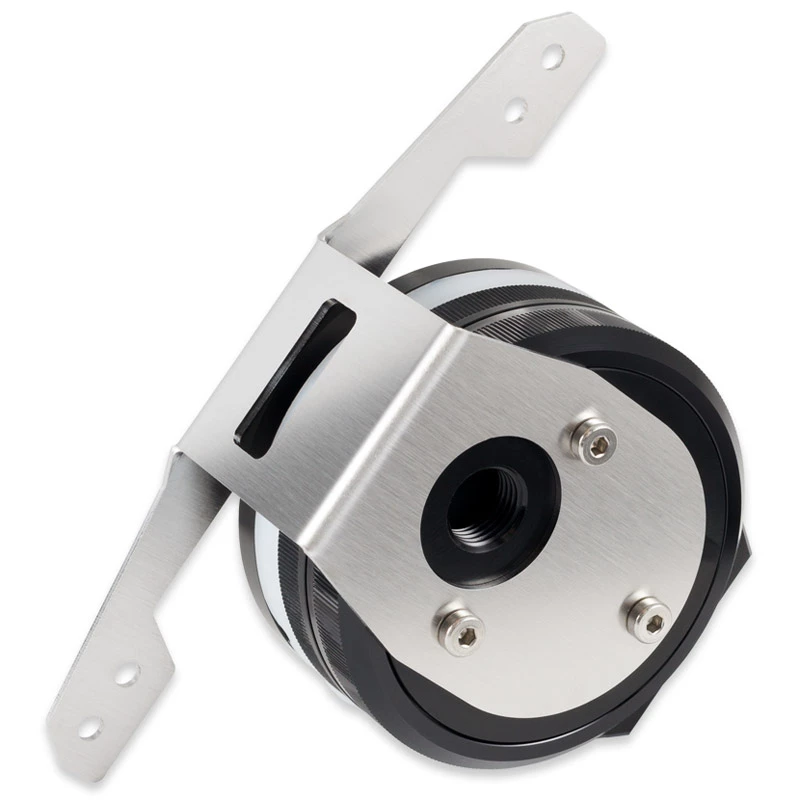

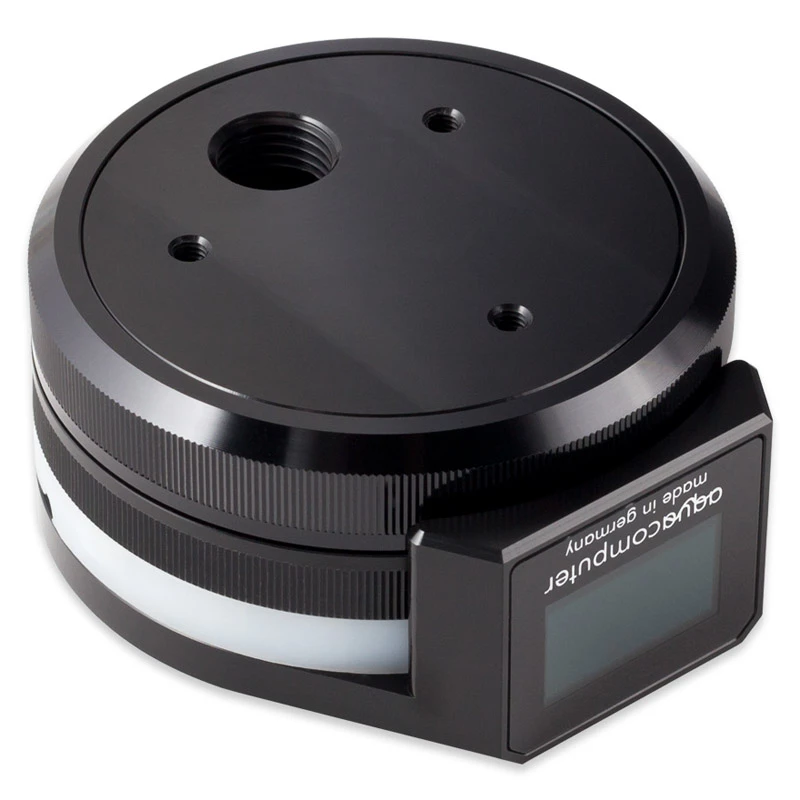

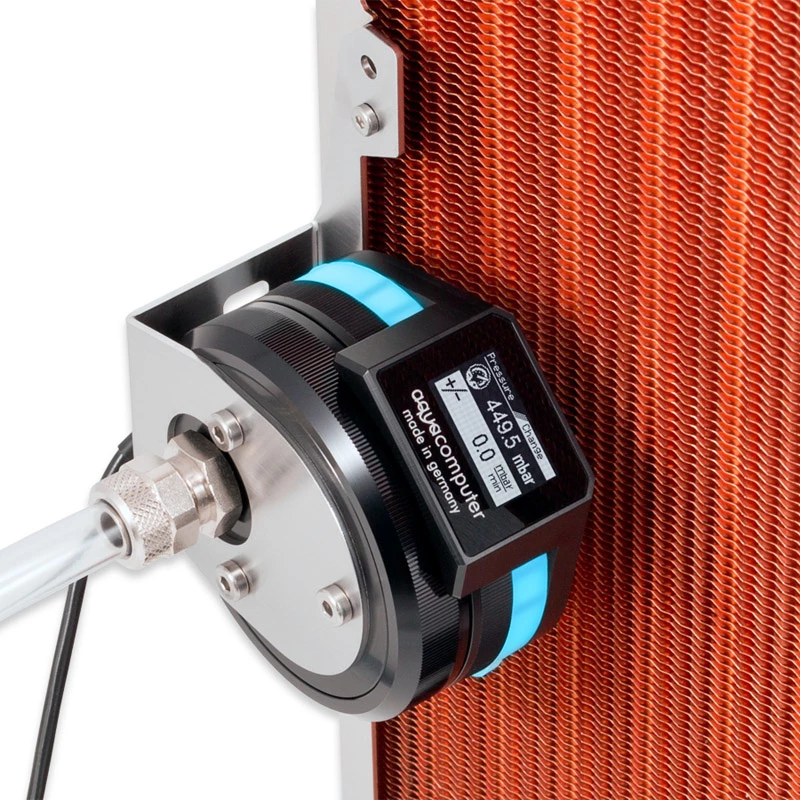

AQUA COMPUTER LEAKSHIELD lekvrij beveiligingssysteem standalone

Protect your custom water-cooling loop with negative-pressure monitoring that reacts in milliseconds. The AQUA COMPUTER LEAKSHIELD Standalone continuously measures system pressure and automatically cuts pump power the instant a leak is detected—before a single drop can damage your hardware.

Overview

This standalone unit requires no external controller. An integrated high-precision pressure sensor monitors the circuit in real time, while the built-in OLED display gives you immediate visual feedback. When pressure drops unexpectedly, the LEAKSHIELD triggers a loud audible alarm, shows a clear warning on screen, and shuts down the pump to minimise potential damage. Connect it to your PC via Micro-USB and use Aqua Computer's aquasuite software for detailed monitoring, logging, and firmware updates.

What stands out

• Standalone operation – no separate controller needed for basic leak protection.
• Integrated OLED display for quick status checks at a glance.
• Automatic pump shutdown on leak detection helps safeguard your components.
• Audible buzzer and software alerts keep you informed even when you're not watching.
• USB 2.0 connection with user-upgradable firmware via aquasuite.

Technical details

• Operating principle: Negative pressure monitoring
• Pressure measurement range: 0 to 1.5 bar absolute
• Integrated sensor: High-precision pressure sensor
• Display: Integrated OLED
• Interface: USB 2.0 (Micro-USB port)
• Power input: 5V DC via USB or external adapter
• Alarm indication: Visual (OLED), audible (buzzer), and software alerts
• Housing material: ABS plastic
• Mounting: Standard mounting holes (e.g., M3)
• Coolant compatibility: All standard PC water cooling coolants

Our verdict

The LEAKSHIELD Standalone is a must-have safety net for any serious water-cooling enthusiast. Its fast reaction time and automatic pump shutdown provide peace of mind that a tiny leak won't turn into an expensive disaster.
