Aristo isometrische tekensjabloon oranje

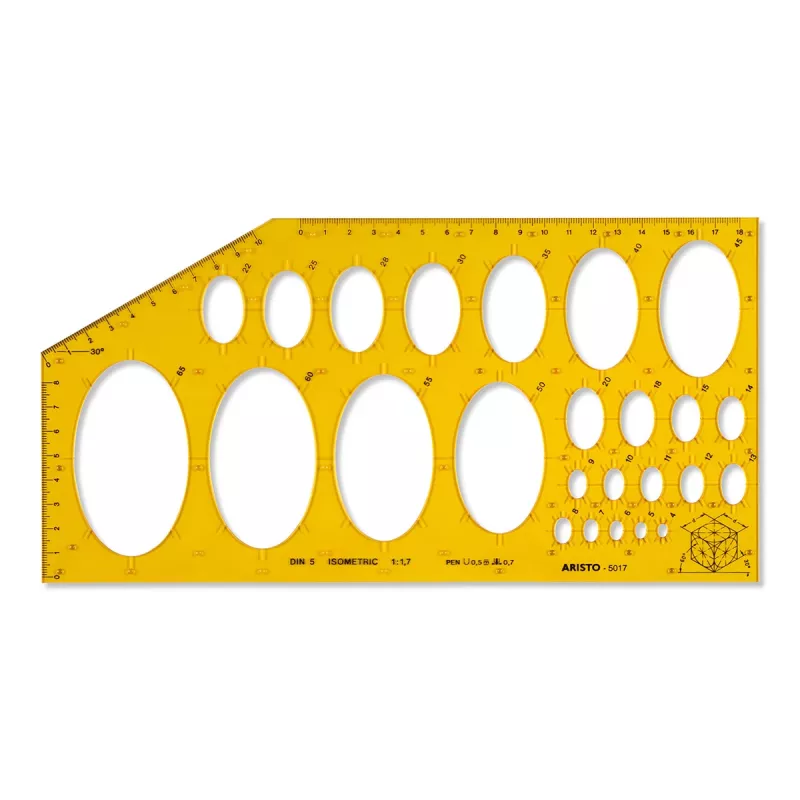

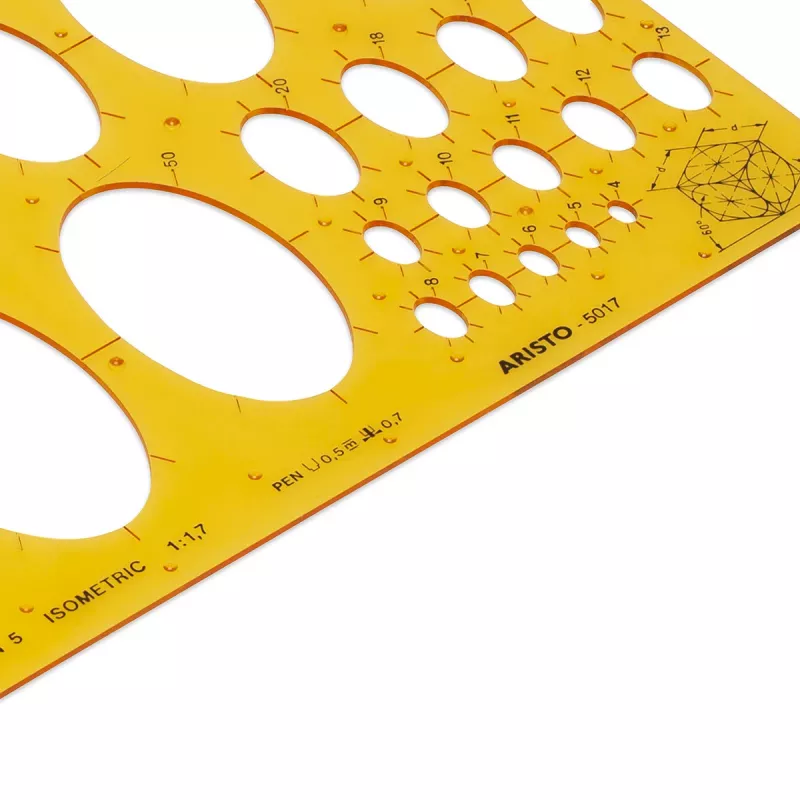

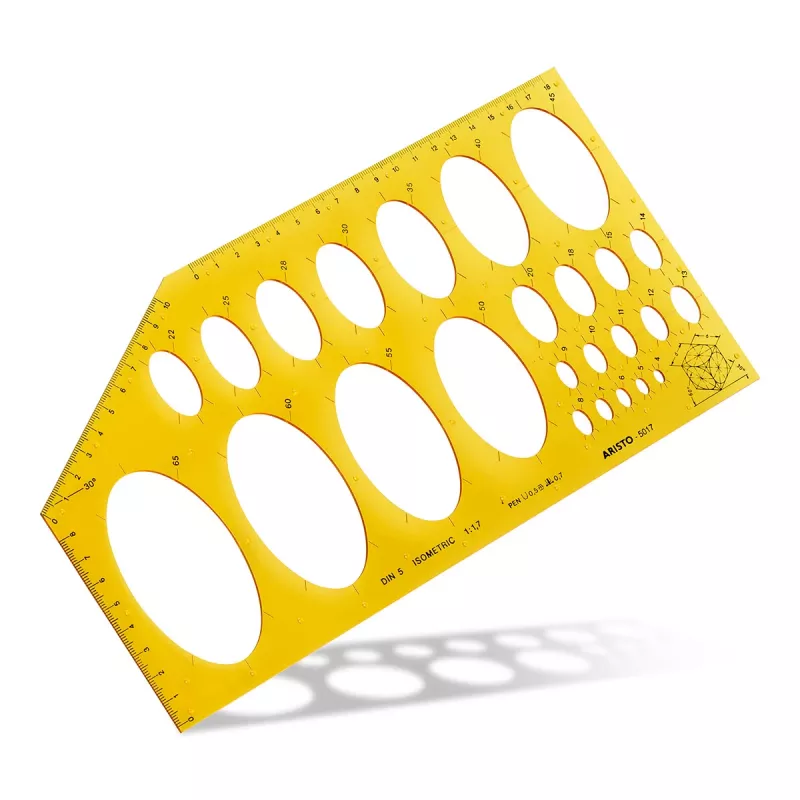

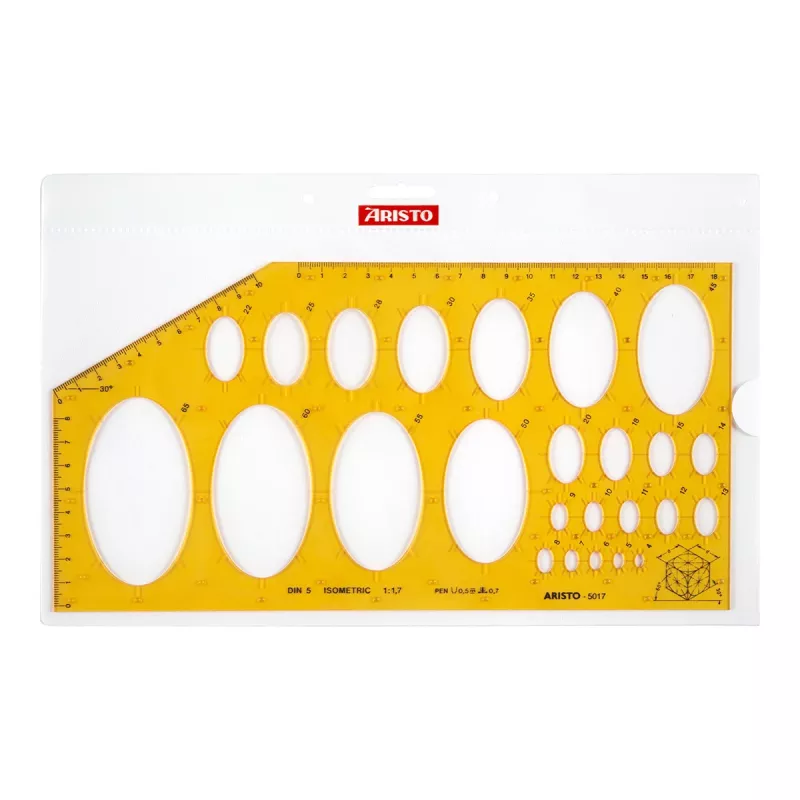

The Aristo Isometric Drawing Template is a precision-milled tool designed for technical drawing, engineering, and architectural applications. Made from transparent polystyrene plastic with ink edges and nibs, it ensures smudge-free, accurate isometric projections. The template features ellipse axes at 35°, 42°, and 60°, with various ellipse sizes (e.g., 4-50mm major axis) and angle markings for 30°, 60°, and 90°. Its high transparency and break-resistant construction guarantee long-lasting performance. Ideal for professionals and students alike, this German-made template is a reliable addition to any drafting kit.

Advantages

Precision milled for exact isometric drawings; raised edges prevent smudging; durable and dimensionally stable; high transparency for easy alignment; includes essential ellipse and angle guides.

Suitable for

• Technical drawing and drafting
• Engineering and architectural plans
• School and university projects
• Isometric projection tasks

Key specifications

• Product Type: Drawing Template
• Template Type: Isometric Projection
• Scale: 1:1
• Material: Transparent Polystyrene Plastic
• Color: Transparent (Slightly tinted orange)
• Ellipse Axes: 35°, 42°, 60°
• Ellipse Sizes: Various (e.g., 4-50mm major axis)
• Angle Markings: 30°, 60°, 90°
• Edge Type: Ink Edges with Nibs
• Transparency: High
• Durability: Dimensionally Stable, Break-Resistant
• Application: Technical Drawing, Engineering, Architecture, School
• Manufacturing Process: Precision Milled
• Smudge Protection: Yes (raised edges)
• Country of Origin: Germany

Recommendations

For best results, use with a fine-tipped technical pen or pencil. Store flat to maintain shape.
