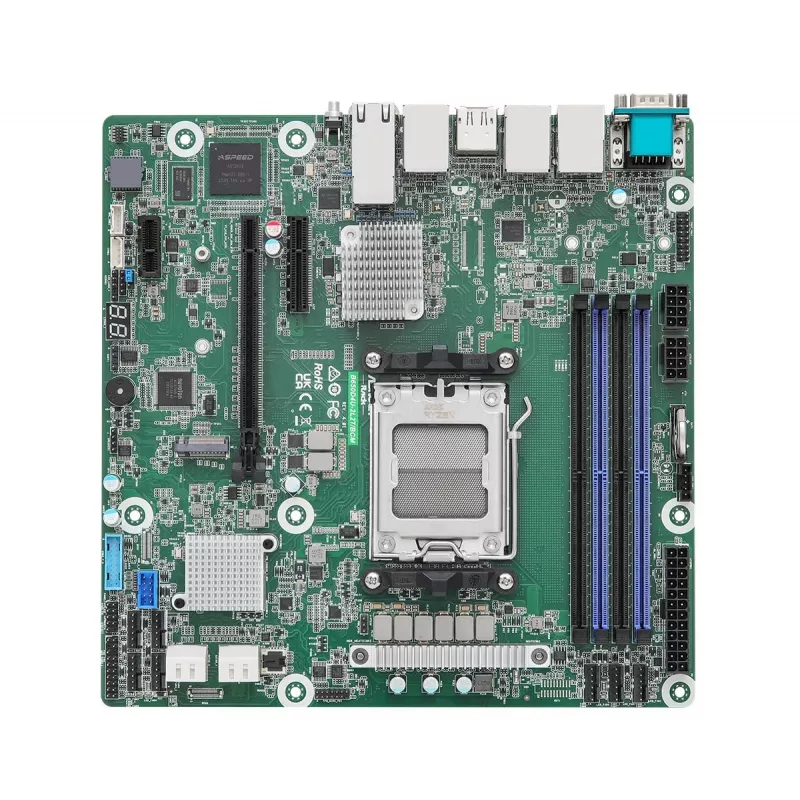

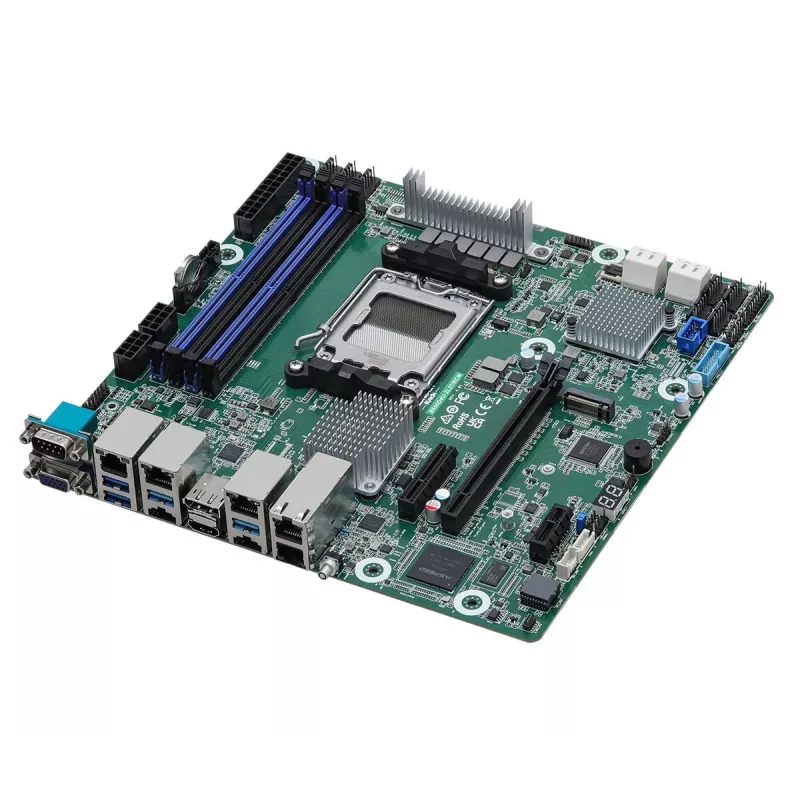

ASRock B650D4U-2L2T/BCM moederbord AMD B650 Express Socket AM5 Micro ATX

The ASRock B650D4U-2L2T/BCM is a high-performance micro ATX motherboard designed for AMD Ryzen 7000 Series processors. Built on the AMD B650 chipset with Socket AM5, it supports DDR5 memory and offers a robust feature set for server and workstation applications. With dual Intel i210 1GbE LAN ports and a dedicated IPMI LAN, this board provides reliable networking and remote management capabilities.

Advantages

This motherboard delivers exceptional stability and performance for demanding workloads. The ASPEED AST2600 BMC controller enables full remote management via IPMI, while the dual Intel i210 LAN ports ensure low-latency networking. Support for ECC DDR5 memory enhances data integrity, making it ideal for mission-critical environments.

Suitable for

• Small to medium business servers
• Workstations for content creation and engineering
• Network attached storage (NAS) systems
• Virtualization and cloud computing nodes

Key specifications

• CPU Socket: AMD Socket AM5
• Chipset: AMD B650
• Form Factor: Micro-ATX
• Supported Processors: AMD Ryzen 7000 Series Desktop Processors
• Memory Type: DDR5
• Memory Slots: 4 x DIMM
• Max Memory Capacity: 192 GB
• Memory Features: Supports ECC and Non-ECC, Unbuffered Memory
• PCIe 5.0 x16 Slots: 1
• PCIe 4.0 x4 Slots: 1
• M.2 Slots: 2 x M.2 (PCIe Gen4 x4)
• SATA III Ports: 4
• LAN Ports: 2 x 1GbE (Intel i210)
• Dedicated IPMI LAN: 1 x 1GbE
• BMC Controller: ASPEED AST2600
• Video Output: 1 x D-Sub (VGA) via BMC
• Rear USB 3.2 Gen1 Ports: 2
• Rear USB 2.0 Ports: 2

Recommendations

For optimal performance, pair this motherboard with AMD Ryzen 7000 series processors and DDR5 ECC memory. Use the dedicated IPMI LAN for out-of-band management in server deployments.
