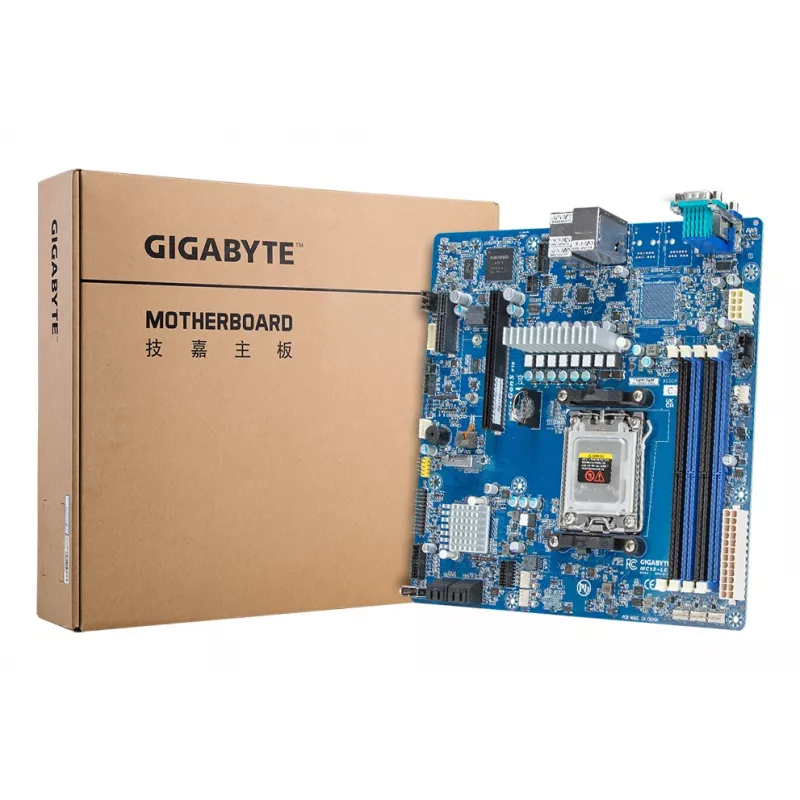

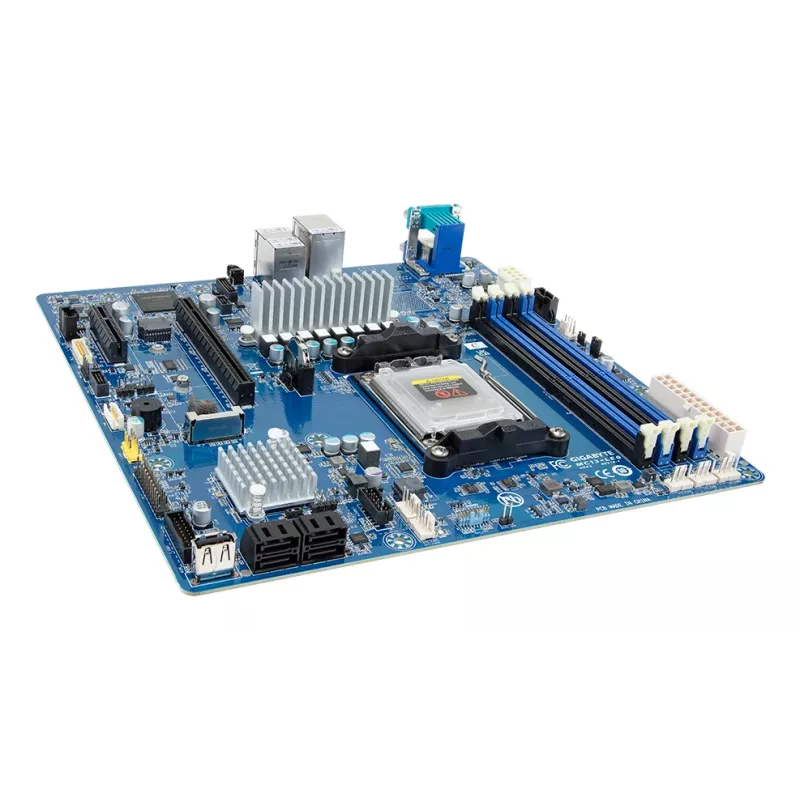

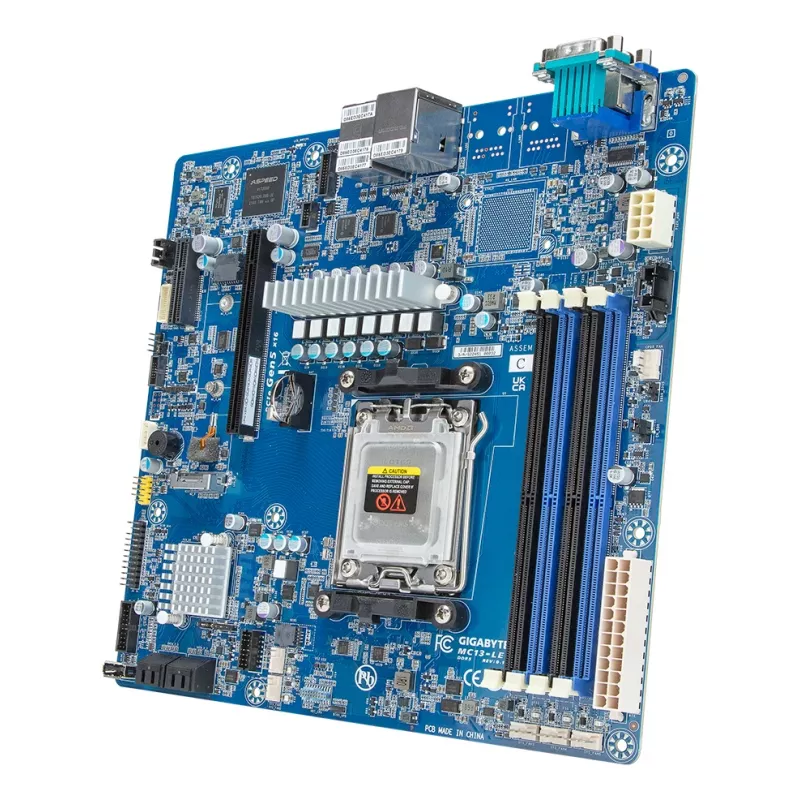

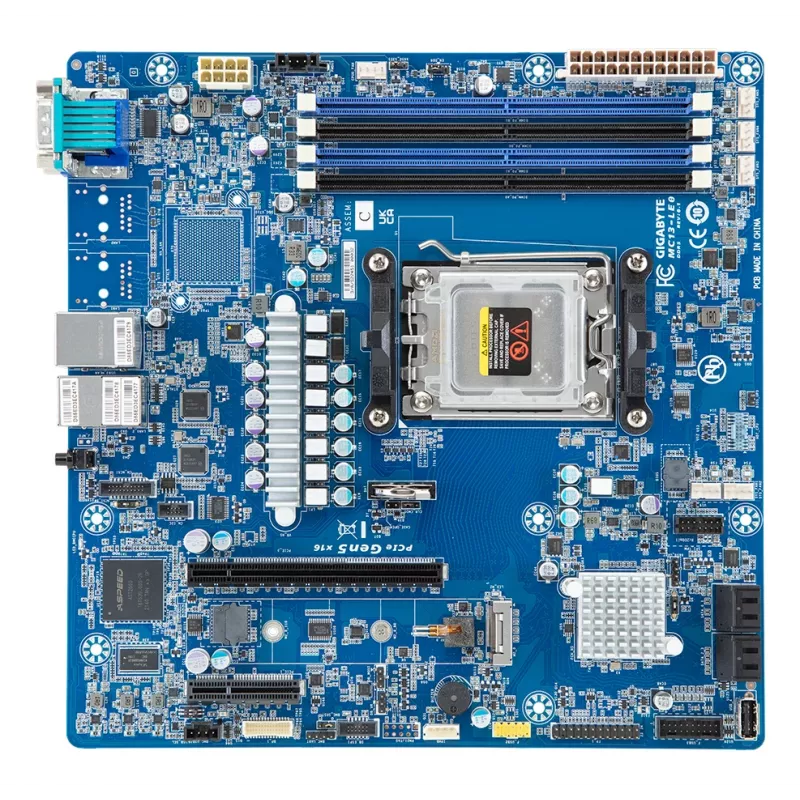

Moederbord GIGABYTE MC13-LE0 AMD B650 Socket AM5 micro ATX, 4× DDR5, M.2, SATA III, RAID 0/1/10

GIGABYTE MC13-LE0 is a micro ATX motherboard based on the AMD B650 chipset with Socket AM5 support for AMD EPYC™ 4004, Ryzen™ 7000 and Ryzen™ 9000 series processors. The board provides four DDR5 UDIMM slots with ECC/non‑ECC support, M.2 and SATA III storage interfaces with RAID 0/1/10 capability, and integrated Aspeed AST2600 management graphics. The compact micro ATX design makes it suitable for space‑constrained servers, workstations, and compact PCs that require modern AM5 compatibility and enterprise features.

Advantages

The MC13-LE0 combines AM5 platform flexibility with server‑oriented features such as support for AMD EPYC™ 4004 processors, ECC memory options and onboard management graphics. PCIe Gen5‑ready connectors and an M.2 PCIe Gen5 x4 slot provide high bandwidth for next‑generation NVMe storage and expansion cards. Optional TPM 2.0 support and hardware management tools from GIGABYTE enhance security and system manageability for continuous 24x7 operation.

Suitable for

• Compact servers and hosting nodes requiring AM5 platform compatibility
• Small business workstations and compute nodes with ECC memory support
• Home or office compact PCs that need modern DDR5 performance and M.2 Gen5 storage
• Systems needing basic remote management and hardware security (TPM)

Key specifications

• Supported processors: Single AMD EPYC™ 4004 / Ryzen™ 7000 / Ryzen™ 9000 Series
• Form factor: Micro ATX (PC micro ATX AMD B650)
• Memory: Dual channel DDR5 ECC/Non‑ECC UDIMM, 4 DIMM slots
• LAN: 2 × 1 Gb/s via Intel® I210‑AT
• Storage: 4 × SATA 6 Gb/s ports; M.2 slot with PCIe Gen5 x4 interface; M.2 and SATA III RAID support (RAID 0/1/10)
• Expansion slots: 1 × PCIe Gen5 x16, 1 × PCIe Gen4 x4
• Chipset and socket: AMD B650 chipset, AMD Socket AM5
• Onboard management: Aspeed AST2600 graphics; optional TPM 2.0 module (SPI or LPC)

How to use

Install a compatible AM5 processor (AMD EPYC™ 4004, Ryzen™ 7000 or Ryzen™ 9000 series) and populate DDR5 UDIMMs according to the motherboard manual for dual‑channel operation. Connect storage devices to the M.2 slot and SATA ports; configure RAID arrays in the firmware if RAID is required. Attach the required expansion cards to PCIe Gen5 or Gen4 slots and connect network cables to the onboard LAN ports. If hardware TPM is needed, install the optional TPM 2.0 module into the designated header and enable it in BIOS.

Recommendations

For stable 24x7 operation, use ECC memory with server‑class processors like AMD EPYC™ 4004 and ensure adequate cooling for the AM5 platform. Update firmware to the latest GIGABYTE BIOS and use GIGABYTE Management Console (GMC) or GIGABYTE Server Management (GSM) for monitoring and remote management.
