ATEN 2-poorts USB DVI Dual Link KVM-switch met audio & USB 2.0-hub (KVM-kabel inbegrepen)

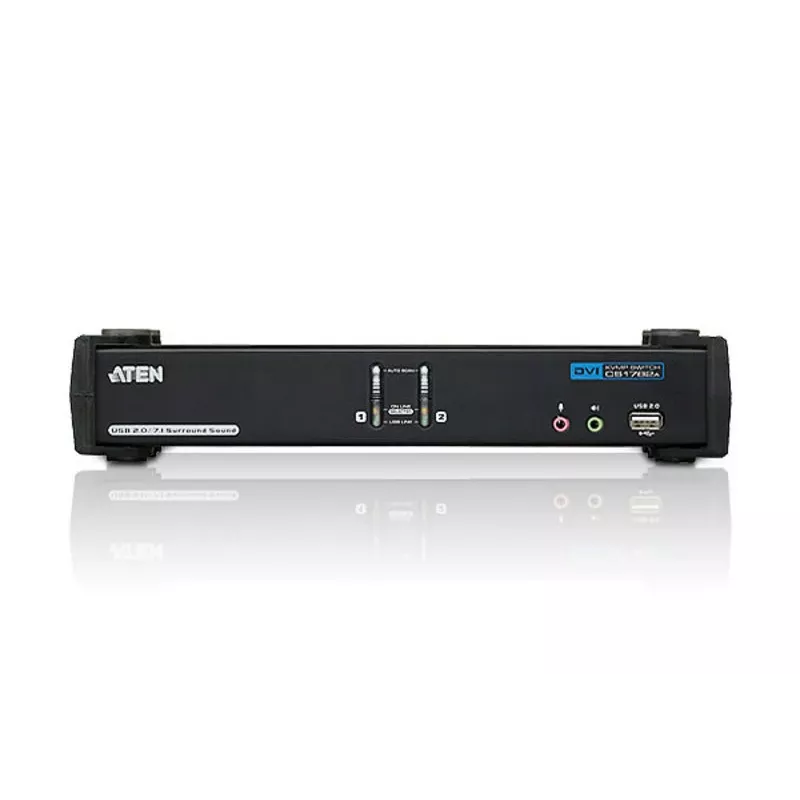

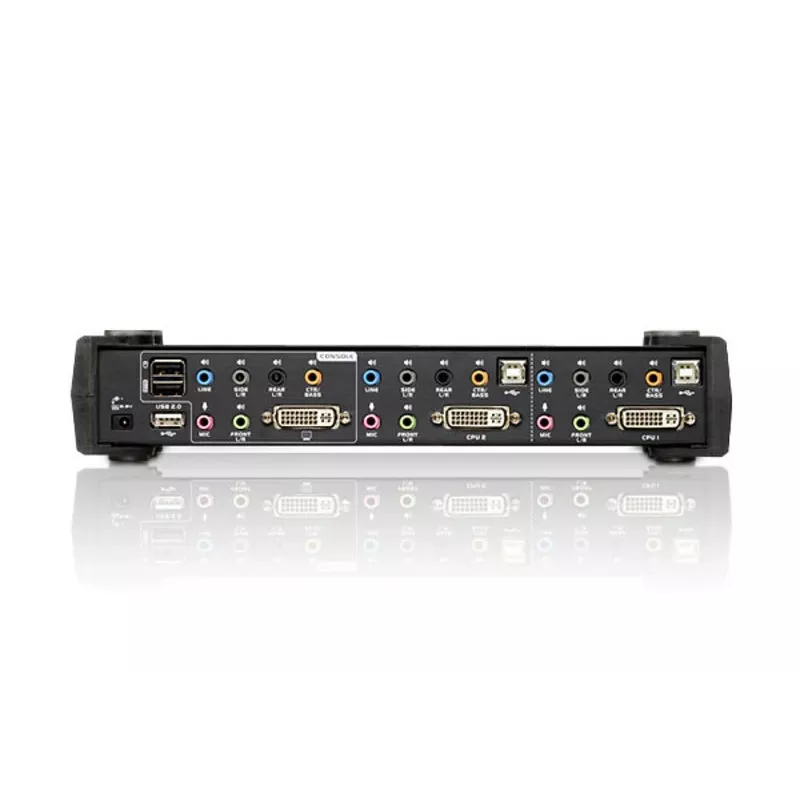

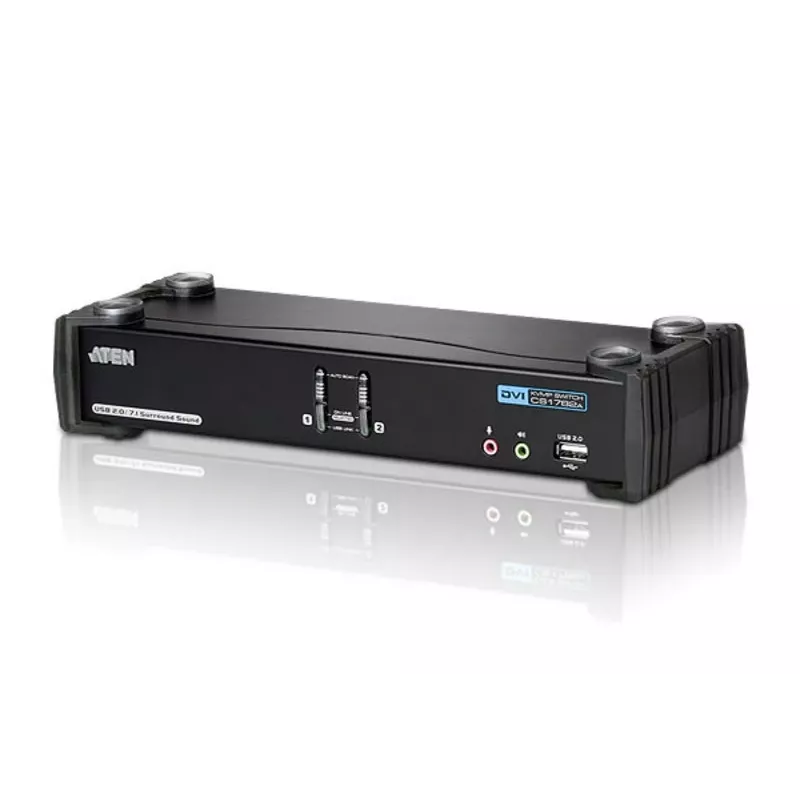

The ATEN CS1782A 2-Port USB DVI Dual Link KVM Switch with Audio & USB 2.0 Hub lets you control two computers with a single keyboard, mouse and DVI monitor. It supports dual-link DVI video up to 2560 x 1600 at 60 Hz, provides audio support and includes USB hub functionality for peripheral sharing. The switch comes in a compact metal housing and is designed for reliable desktop use.

Advantages

The CS1782A integrates KVM switching and a two-port USB hub in one device, reducing desktop clutter and simplifying multi-computer workflows. It supports high-resolution dual-link DVI, audio passthrough and low power consumption (typical operation around 3.3 W). The unit includes necessary DVI and audio cable sets and a power adapter for straightforward setup.

Suitable for

• Controlling two desktop computers from one workstation
• Workflows requiring high-resolution DVI output (up to 2560 x 1600 @ 60 Hz)
• Setups that need shared USB peripherals and stereo audio between systems
• Environments where a compact, metal-housed KVM is preferred

Key specifications

• Brand: ATEN
• Model / MPN: CS-1782A
• Controlled systems: 2 computers
• Video interface: DVI Dual Link (DVI-I), up to 2560 x 1600 @ 60 Hz
• Keyboard / Mouse ports: USB
• Audio: stereo audio support (7.1 cable sets included)
• USB Hub: built-in 2-port USB 2.0 hub for peripherals
• Housing: metal, colour: black
• Power consumption: approx. 3.3 W
• Weight: 1.88 kg
• EAN: 4710423777088

How to use

Connect the included DVI and audio cables from each computer to the corresponding KVM cable sets, plug the keyboard and mouse into the local USB console ports, and attach your DVI monitor and speakers to the console outputs. Use the front-panel or on-screen switching methods (USB mouse switching supported) to select between the two connected computers. Connect the provided power adapter to power the unit. No additional drivers are required for standard keyboard, mouse and display operation.

Recommendations

For best video performance, use high-quality dual-link DVI cables and ensure connected graphics cards support the target resolution. When using 3D Vision or high refresh-rate applications, verify compatibility with your GPU and monitor. Keep firmware up to date per ATEN support if available.
