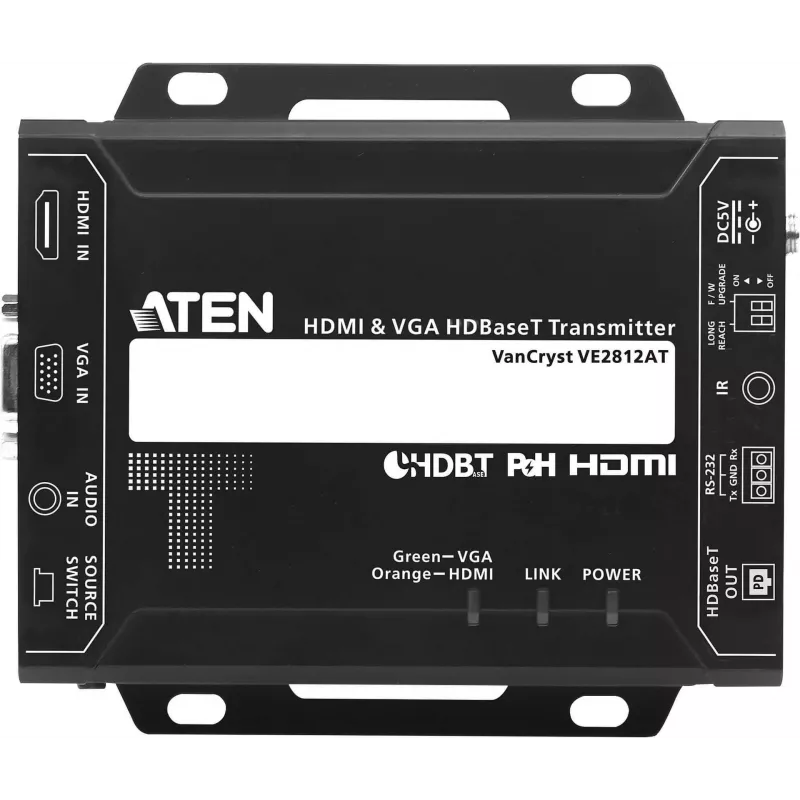

ATEN VanCryst VE2812AT HDMI HDBaseT extender transmitter - 150m

The ATEN VanCryst VE2812AT is a high-performance HDBaseT extender transmitter designed to extend HDMI, audio, IR, and RS-232 signals up to 150 meters over a single Cat5e/6 cable. Ideal for professional AV installations, it supports 4K resolutions at 30Hz (4:4:4) and 1080p at 60Hz, with Power over HDBaseT (POH) eliminating the need for a local power supply at the receiver.

Advantages

Simplifies cabling by combining video, audio, control, and power over one cable. Supports long-distance transmission without signal degradation. HDCP 2.2 compliant for protected content. Metal housing ensures durability in commercial environments.

Suitable for

• Digital signage and advertising displays
• Conference rooms and boardrooms
• Education and training facilities
• Retail and hospitality AV systems
• Home theater installations

Key specifications

• Extension Technology: HDBaseT-Lite (Class B)
• Max Resolution: 4096 x 2160 @ 30Hz (4:4:4), 3840 x 2160 @ 60Hz (4:2:0)
• Max Distance (4K): 35 m; (1080p): 70 m
• Supported Signals: HDMI, Audio, IR, RS-232
• HDCP Support: HDCP 2.2
• Audio Support: Dolby Digital 5.1, DTS HD Master Audio
• Power over HDBaseT (POH): Yes (Transmitter powers Receiver)
• Video Input: 1 x HDMI Type A Female
• Video Output: 1 x HDBaseT RJ-45 Female
• Audio Input: 1 x 3.5mm Stereo Mini Jack Female
• Control Ports: 1 x RS-232 DB-9 Female, 1 x IR Receiver 3.5mm, 1 x IR Transmitter 3.5mm
• Power Consumption: 4.5W
• Housing Material: Metal
• Operating Temperature: 0 - 50°C
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, use Cat6 cables and ensure proper termination. Pair with ATEN VE2812AR receiver for a complete solution.
