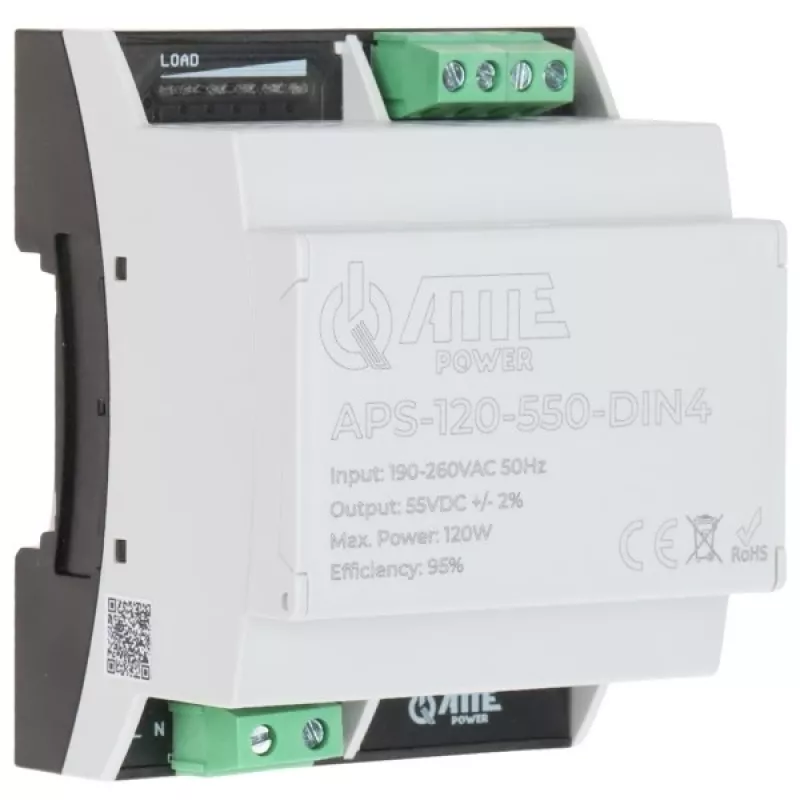

ATTE APS-120-550-DIN4 DIN-rail schakelende voeding, 55 V 120 W

The ATTE APS-120-550-DIN4 is a DIN rail switching power supply delivering a stable 55 V output with 120 W continuous power. It features a 190–260 VAC input, screw-type DC_OUT terminals, and mounts on a TH35 DIN rail (4 modules).

Key features

• Stable 55 V output voltage
• 120 W continuous output power
• DIN4 housing for DIN rail mounting
• Screw-type DC_OUT output connectors
• Redundant power supply possible with a second 55 V module
• LED indicators for status monitoring
• Overload and overheat protection
• High electromagnetic interference resistance
• Wide operating temperature range

Specifications

• Brand: ATTE
• Model: APS-120-550-DIN4
• Power type: Switching power supply
• Input voltage: 190–260 VAC, 50 Hz
• Output voltage: 55 V ±2% (DC_OUT)
• Continuous output current: 2.2 A
• Continuous output power: 120 W
• Efficiency: 95%
• Mounting: DIN rail TH35 (4 modules)
• Redundant power supply: Yes (with a second 55 V module)
• Output connectors: Screw-type DC_OUT
• Operating temperature: -20°C to +50°C
• Application: Automation, PoE monitoring
• Dimensions: DIN4 (rail standard)
