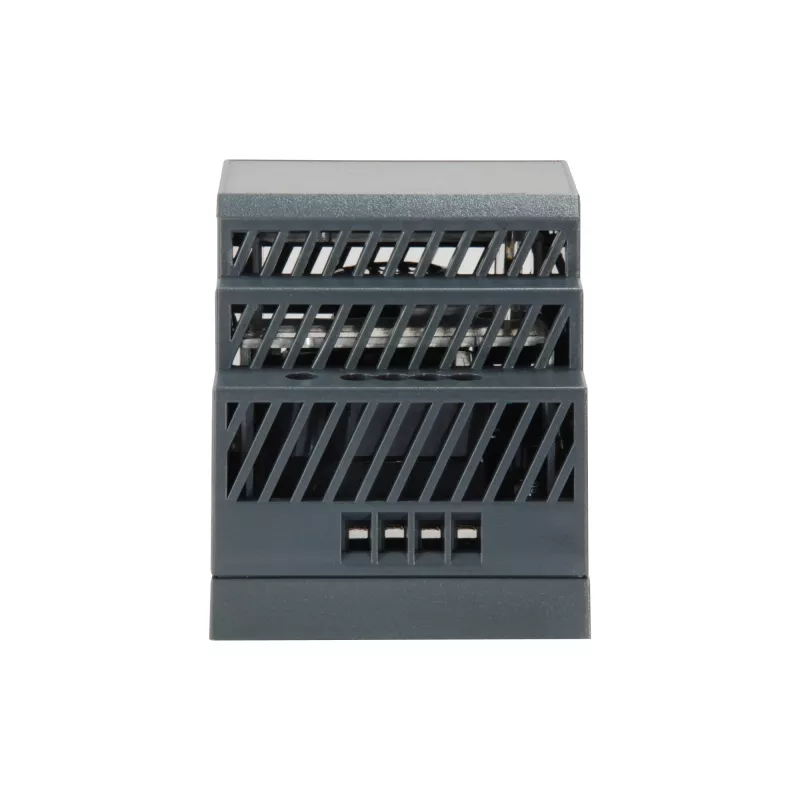

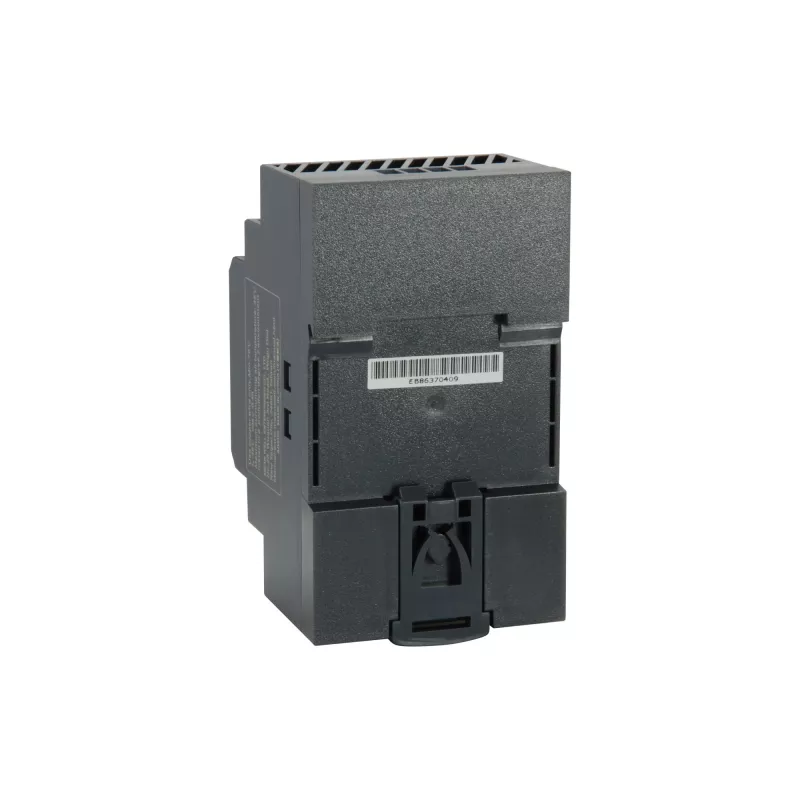

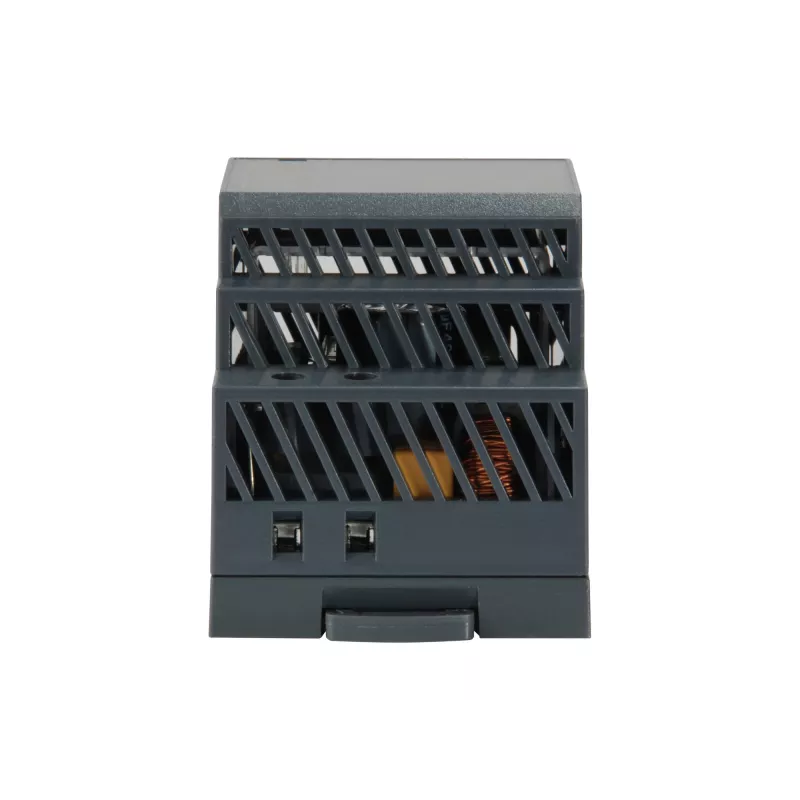

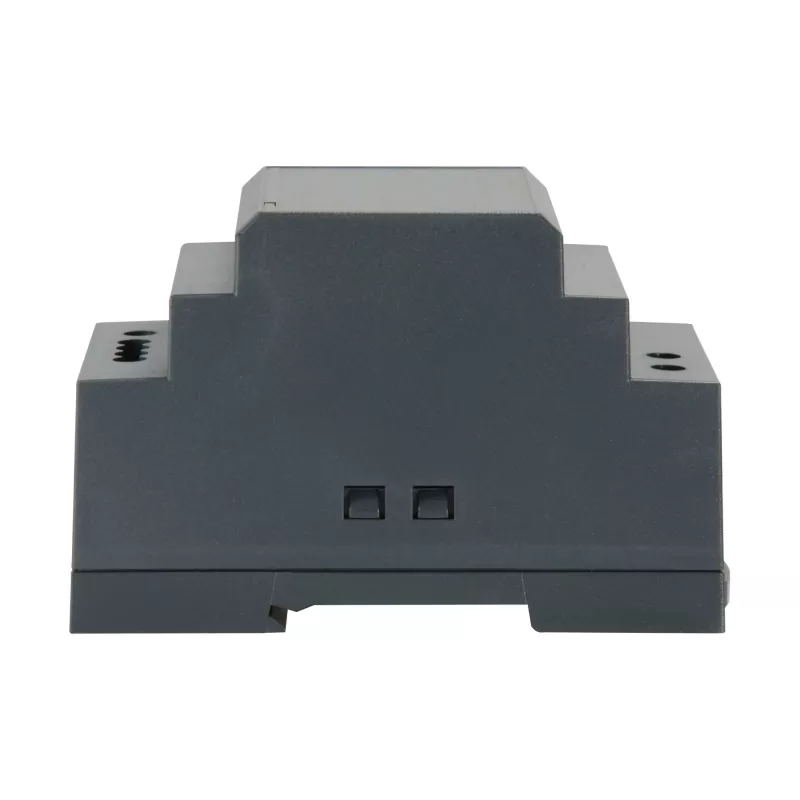

LevelOne 24V DC industriële voeding, 60W, DIN-rail

The LevelOne POW-2421 is a DIN-rail industrial power supply delivering a stable 24V DC output and 60W maximum power in a compact enclosure. It accepts a wide AC input range (85–264V) and meets common safety standards, making it suitable for use in harsh industrial environments. The unit supports continuous operation from -30°C to 70°C without additional cooling and features a high MTBF for long service life.

Advantages

The POW-2421 offers universal AC input compatibility, a compact DIN-rail form factor (90 × 54.5 × 52.5 mm) for flexible panel or cabinet mounting, and certified safety compliance (UL60950-1, TUV EN61558-2-16). It operates at full load over a wide ambient temperature range and provides reliable 24V DC power with a rated output of 60W and a high MTBF.

Suitable for

• Industrial controllers and PLCs
• Automation equipment and sensors
• DIN-rail electrical panels and distribution cabinets
• Low-voltage industrial modules and communication devices

Key specifications

• Output voltage: 24V DC
• Output power: 60W
• AC input voltage: 85–264V
• Operating temperature: -30°C to 70°C (full load)
• Dimensions: 90 × 54.5 × 52.5 mm
• Mounting: DIN-rail
• MTBF: 927,600 hours
• Safety certifications: UL60950-1, TUV EN61558-2-16
• Brand: LEVELONE, Model: POW-2421

How to use

Mount the POW-2421 on a standard DIN-rail inside the control cabinet or distribution panel. Connect the AC input (85–264V) to the designated input terminals and wire the 24V DC output to the load, observing correct polarity. Ensure proper grounding according to local electrical codes. Allow adequate clearance for wiring and service access; no additional cooling is required under specified ambient temperature conditions.

Recommendations

Install the power supply in an environment within the rated temperature range and protect it from direct exposure to liquids and excessive dust. Verify input voltage compatibility before powering on, and follow local safety and grounding practices. For long-term reliability, periodically inspect terminal connections and mounting integrity.
