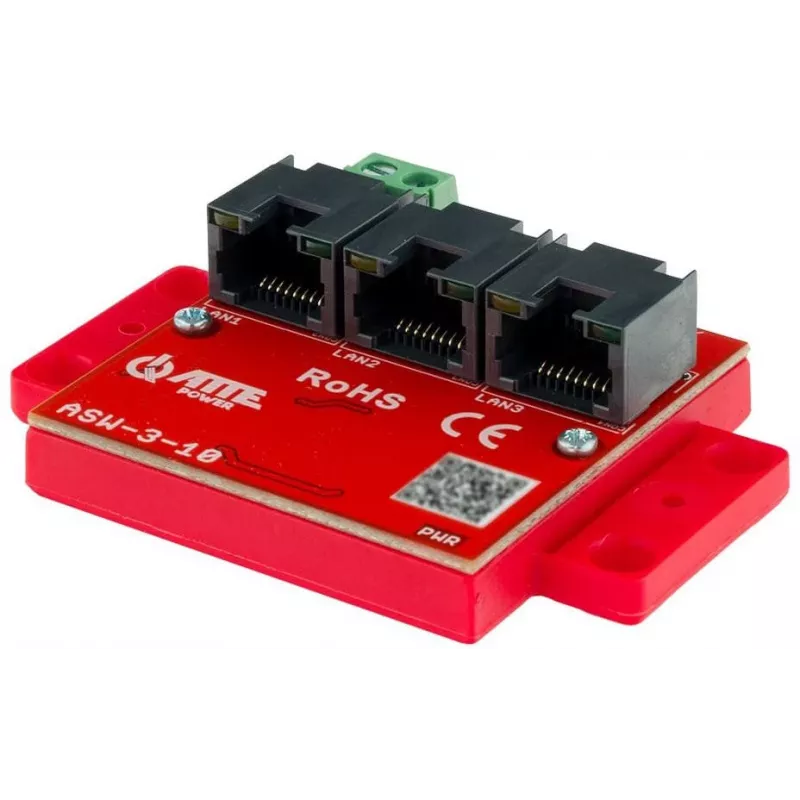

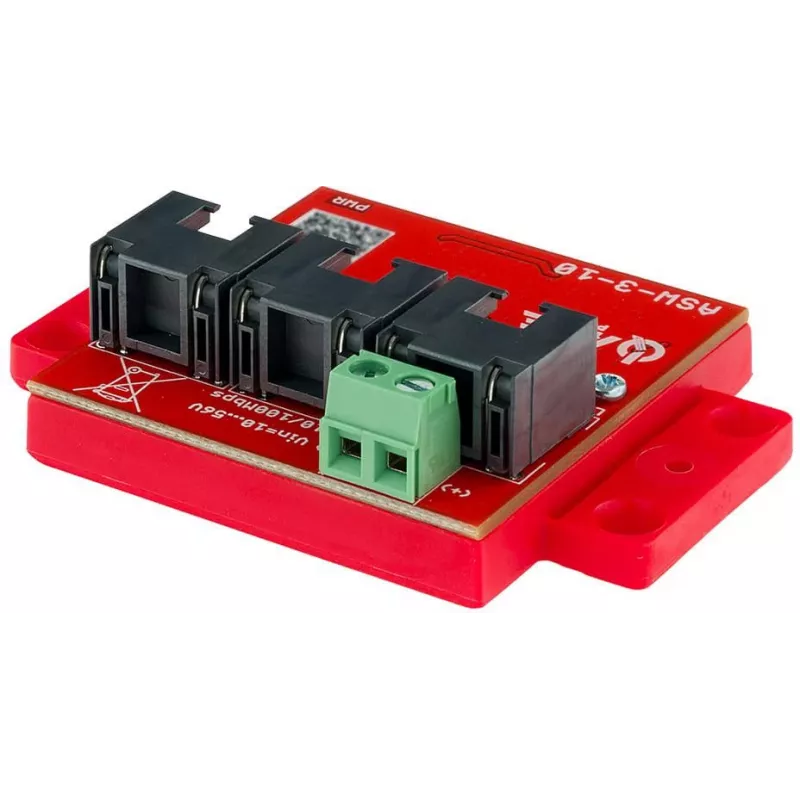

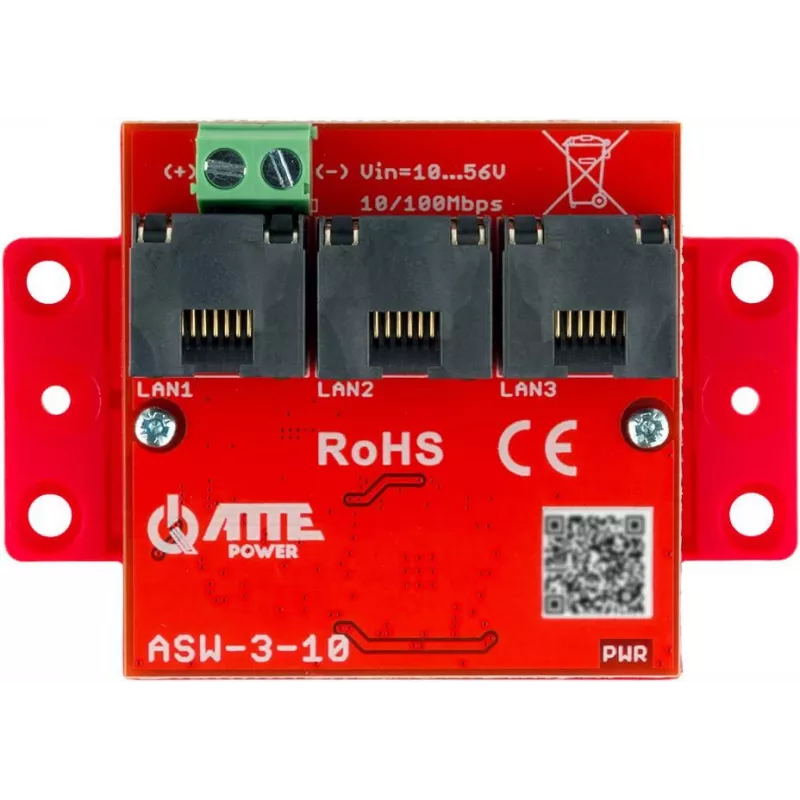

ATTE ASW-3-10 Unmanaged switch 10 poorten 10/100 Mbps desktop

The ATTE ASW-3-10 is a reliable and cost-effective unmanaged network switch designed for small office or home networks. With 10 Fast Ethernet ports, it provides seamless connectivity for computers, printers, and other network devices. Its plug-and-play design requires no configuration, making it ideal for users seeking a simple network expansion solution.

Advantages

This switch offers easy installation with auto MDI/MDIX on all ports, eliminating the need for crossover cables. Its compact desktop form factor saves space, and the low power consumption (<3W) ensures energy efficiency. The IEEE 802.3x flow control enhances data transfer reliability.

Suitable for

• Small offices requiring basic network connectivity
• Home networks with multiple wired devices
• Expanding network capacity in a cost-effective manner

Key specifications

• Product Type: Unmanaged Network Switch
• Number of Ports: 10
• Port Speed: 10/100 Mbps
• Switching Capacity: 2 Gbps
• MAC Address Table: 1K entries
• Auto MDI/MDIX: Yes
• Flow Control: IEEE 802.3x (Full-Duplex)
• Power Supply: External DC Adapter (5V DC)
• Max Power Consumption: <3W
• LED Indicators: Power, Link/Act per port
• Mounting Type: Desktop
• Housing Material: Plastic
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Plug and Play: Yes
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C

Recommendations

For optimal performance, use Cat5e or higher Ethernet cables. This switch is ideal for users who need a straightforward, no-fuss network switch without advanced management features.
