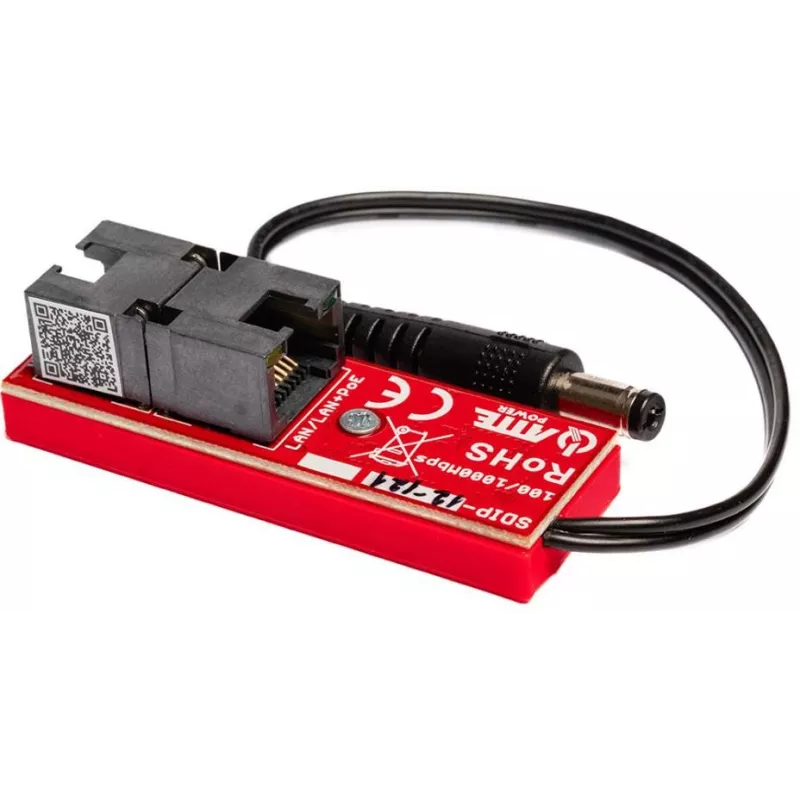

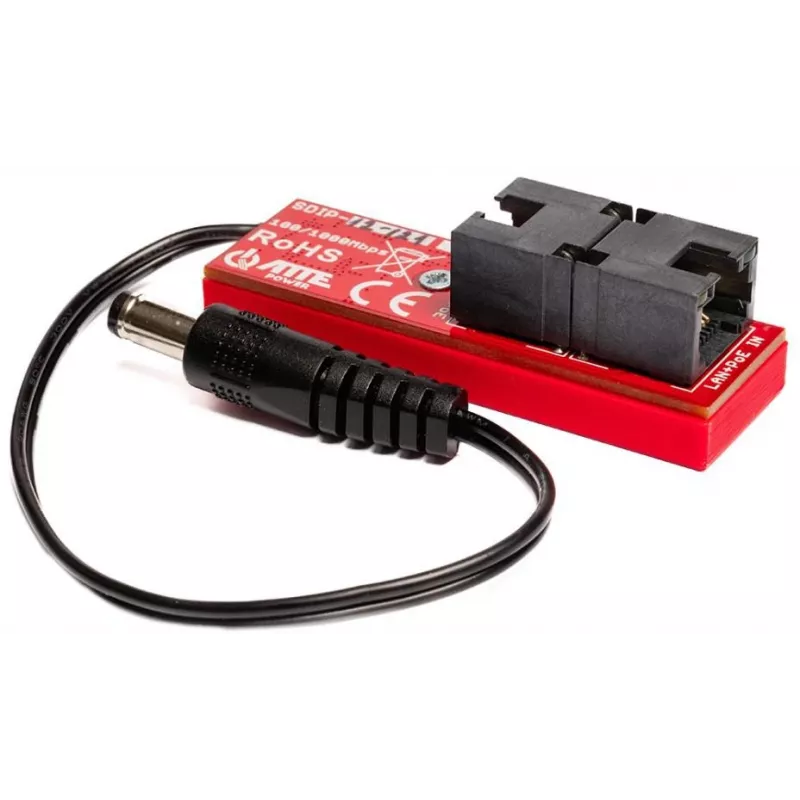

ATTE SDIP-12-121 PoE+ adapter 30W gigabit

The ATTE SDIP-12-121 is a high-performance Power over Ethernet (PoE+) adapter designed to deliver both data and power over a single Ethernet cable. Compliant with IEEE 802.3at standard, it provides up to 30W of power at 56V DC, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. With Gigabit Ethernet support (10/100/1000 Mbps), it ensures fast and reliable data transmission. The adapter features two RJ45 ports: one for data input and one for combined data and power output. Its compact plastic housing supports desktop or wall-mountable installation, and it includes protection against overload, short-circuit, and over-voltage. LED indicators for power and PoE status provide easy monitoring. Operating temperature range is -10°C to 40°C, with storage from -20°C to 70°C. Certifications: CE, RoHS.

Advantages

This PoE+ adapter simplifies network installations by eliminating the need for separate power cables near devices. It supports high-power devices up to 30W, ensuring compatibility with a wide range of equipment. The Gigabit Ethernet ports guarantee high-speed data transfer, while the robust protection features safeguard connected devices. Its versatile mounting options and compact design make it suitable for various environments.

Suitable for

• Powering IP cameras, wireless access points, and VoIP phones
• Extending network reach in offices, warehouses, and outdoor installations
• Replacing bulky power adapters in space-constrained setups

Key specifications

• PoE Standard: IEEE 802.3at (PoE+)
• Output Power: 30 W
• Output Voltage: 56 V DC
• Input Voltage: 100-240 V AC
• Data Rate: 10/100/1000 Mbps
• Ports: 2x RJ45 (Data In, Data+Power Out)
• PoE Pin Assignment: Mode A (1/2+, 3/6-)
• Protection: Overload, Short-circuit, Over-voltage
• LED Indicators: Power, PoE Status
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 5% to 90% non-condensing
• Housing Material: Plastic
• Mounting: Desktop, Wall-mountable
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with IEEE 802.3at compliant devices. Ensure proper ventilation when mounting on walls. This adapter is a reliable choice for upgrading network infrastructure to support PoE+.
