Austrian Audio OC818 studio set - grootmembraan condensatormicrofoon

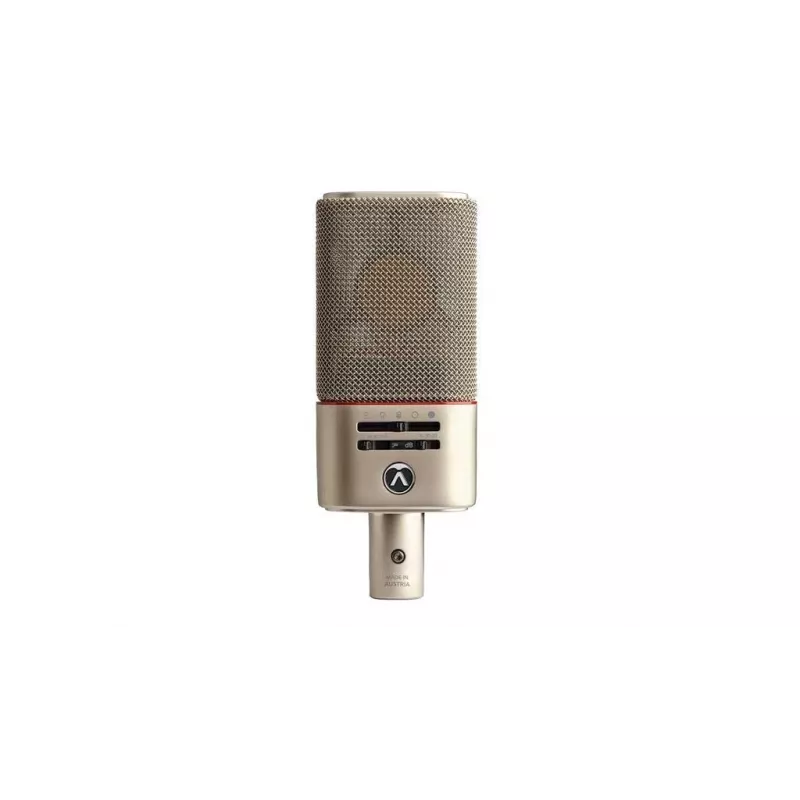

The Austrian Audio OC818 Studio Set is a professional large diaphragm condenser microphone designed for studio recording, broadcasting, and live sound applications. Featuring the innovative CKR12 ceramic dual capsule, it offers exceptional audio quality with multiple polar patterns including cardioid, figure-8, omni, hypercardioid, and user-defined via the PolarDesigner plugin. This set includes a comprehensive accessory package for versatile use.

Advantages

With an extremely low self-noise of 9 dB SPL (A-weighted) and a high maximum SPL of 158 dB, the OC818 captures every detail without distortion. The dual-output design (XLR and mini XLR) allows simultaneous recording of both capsules for advanced post-production flexibility. The included PolarDesigner plugin enables custom polar pattern creation.

Suitable for

• Studio vocal and instrument recording
• Broadcasting and podcasting
• Live sound reinforcement
• Field recording and sound design

Key specifications

• Microphone Type: Large Diaphragm Condenser
• Capsule: CKR12 Ceramic Dual Capsule
• Polar Patterns: Cardioid, Figure-8, Omni, Hypercardioid, User-Defined
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: 13 mV/Pa
• Maximum SPL: 158 dB SPL (with pad)
• Equivalent Noise Level: 9 dB SPL (A-weighted)
• Impedance: 275 Ohms
• Low-Cut Filter: 40 Hz, 80 Hz (2nd order)
• Pad Attenuation: -10 dB, -20 dB
• Power Requirement: 48V Phantom Power
• Main Output Connector: XLR 3-pin
• Second Output Connector: Mini XLR 5-pin
• Dimensions (HxWxD): 157 x 63 x 35 mm
• Weight: 360 g
• Manufacturing Location: Vienna, Austria

Recommendations

The OC818 Studio Set is ideal for professionals seeking a versatile, high-performance microphone with advanced features. Its dual-capsule design and included accessories make it a complete solution for demanding recording environments.
