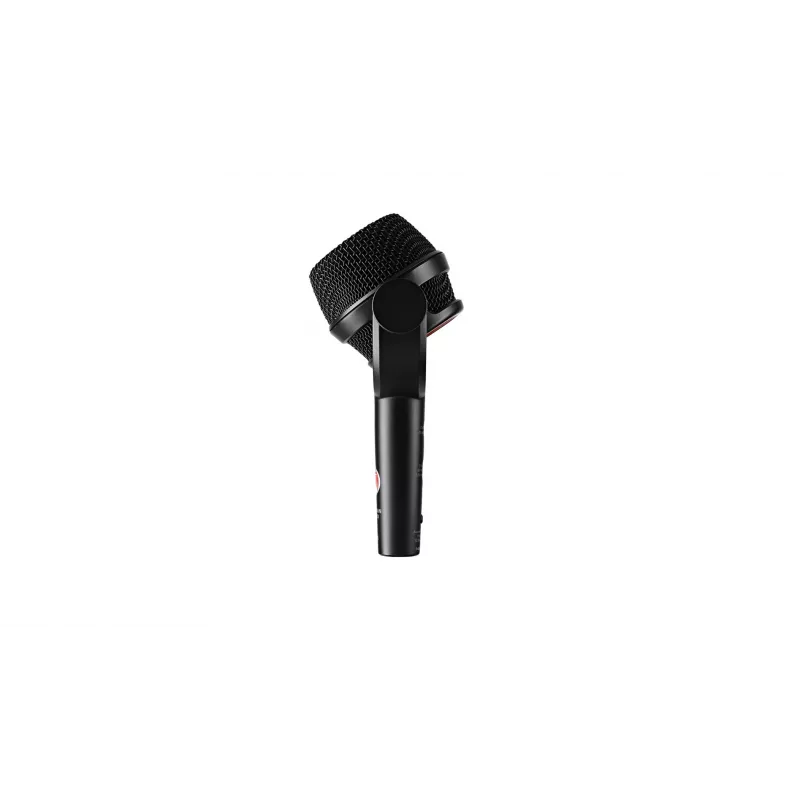

Austrian Audio OD5 instrumentmicrofoon

The Austrian Audio OD5 is a high-performance instrument microphone designed for professional audio applications. Featuring a small diaphragm condenser capsule with a cardioid polar pattern, it delivers exceptional clarity and detail for capturing a wide range of instruments. With a frequency response of 20 Hz to 20 kHz, sensitivity of 13.5 mV/Pa, and a maximum SPL of 142 dB, the OD5 is built to handle demanding sound sources. Its rugged metal housing ensures durability on stage and in the studio.

Advantages

The OD5 offers a switchable high-pass filter (60 Hz, 120 Hz) and a -10 dB pad for versatile recording. The included OCS01 mic clip and WS01 windscreen provide immediate setup convenience. With an equivalent noise level of just 14 dB SPL (A-weighted), it captures quiet nuances without unwanted noise.

Suitable for

• Recording and live sound reinforcement of acoustic and electric instruments
• Studio and stage applications requiring precise sound reproduction
• Musicians, sound engineers, and content creators seeking a reliable condenser microphone

Key specifications

• Microphone type: Small diaphragm condenser
• Polar pattern: Cardioid
• Frequency response: 20 Hz - 20 kHz
• Sensitivity: 13.5 mV/Pa
• Maximum SPL: 142 dB (1% THD)
• Equivalent noise level: 14 dB SPL (A-weighted)
• Impedance: 275 Ohms
• Phantom power: 48V DC
• Connector: XLR 3-pin
• Pad switch: -10 dB
• High-pass filter: 60 Hz, 120 Hz (switchable)
• Housing material: Metal
• Included accessories: OCS01 mic clip, WS01 windscreen

Recommendations

The Austrian Audio OD5 is an excellent choice for capturing instruments with precision and clarity. Its robust build and versatile features make it a valuable addition to any microphone collection.
