AV-zender ATEN VE811T

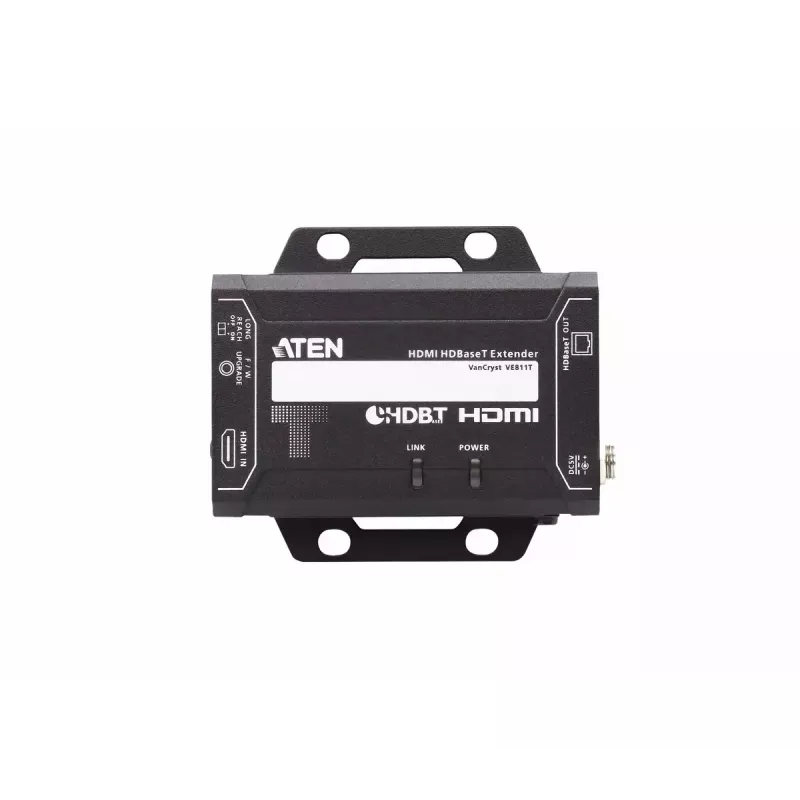

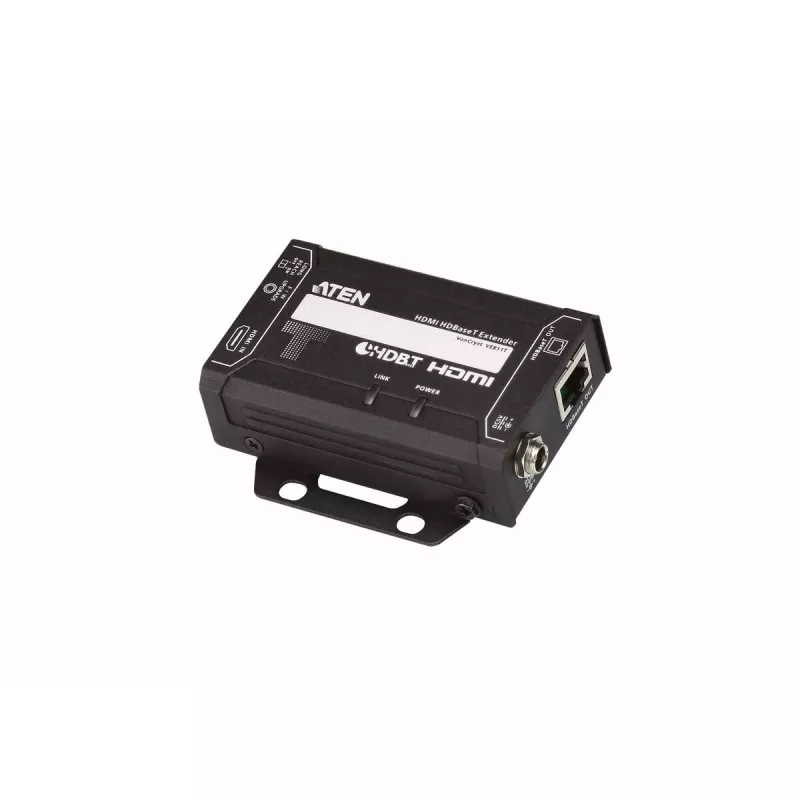

The ATEN VE811T AV transmitter extends HDMI signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, supporting up to 4K (4096 x 2160) resolution at distances up to 100 m. With Long Reach Mode it can carry 1080p signals up to 150 m. The compact black unit conforms to HDMI features including 3D, Deep Color, CEC pass-through and supports HD lossless audio formats such as Dolby Digital 5.1 and DTS HD.

Advantages

The VE811T offers reliable long-distance HDMI transmission using common Cat 5e/6/6a cabling, compact dimensions for flexible installation, and support for high-resolution video and multichannel audio. It operates from a 5V supply with low typical power consumption and is compatible with standard HDMI features for seamless AV integration.

Suitable for

• Meeting rooms and conference spaces
• Digital signage and AV distribution over distance
• Classroom and training environments
• Any installation requiring HDMI extension up to 100 m (4K) or up to 150 m (1080p, Long Reach Mode)

Key specifications

• Model: ATEN VE811T (VE811T-AT-G)
• Maximum resolution: 4096 x 2160 (4K)
• Transmission medium: single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• Range: up to 100 m for 4K; Long Reach Mode up to 150 m for 1080p
• Audio: Dolby Digital 5.1, DTS HD, HD lossless audio formats
• HDMI features: 3D, Deep Color, CEC pass-through

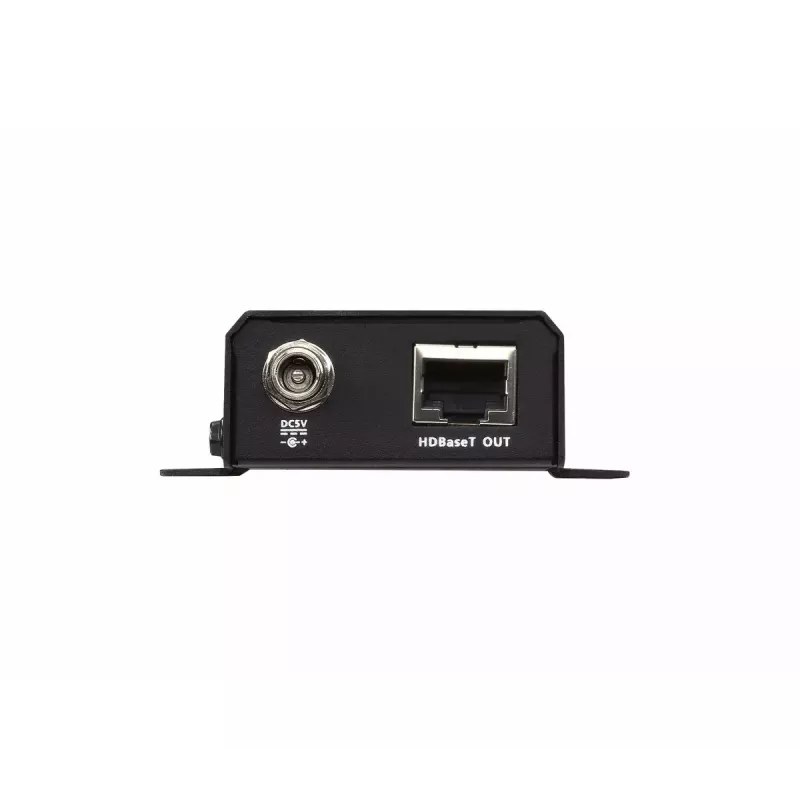

• Power: 5 V input, typical power consumption 3.77 W
• Dimensions: 82 x 52 x 23.7 mm; Weight: 160 g
• Colour: Black

How to use

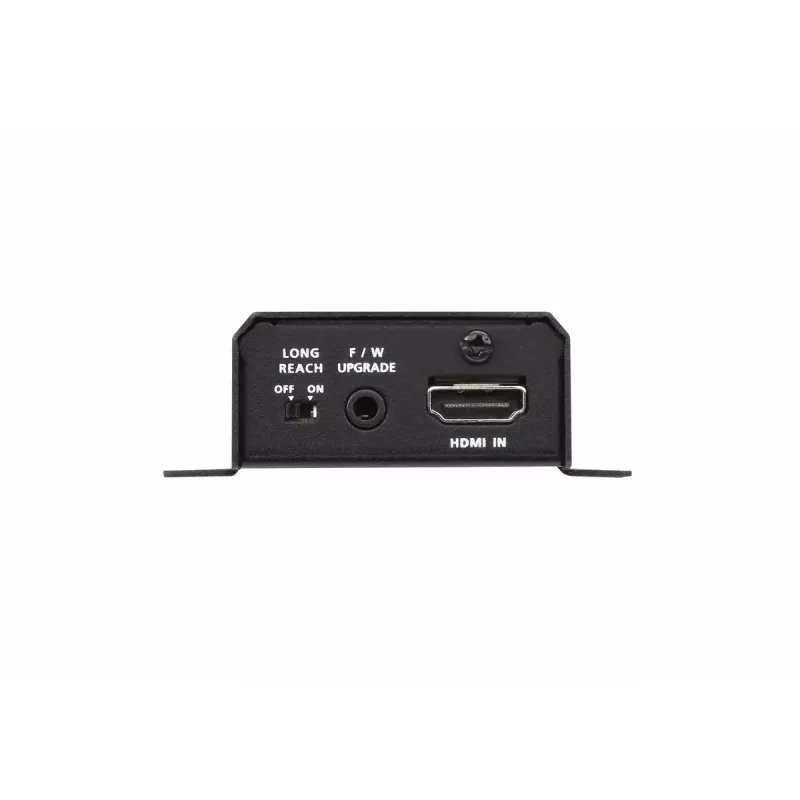

Connect the VE811T transmitter to a video source via HDMI and link it to the corresponding receiver using a single Cat 5e/6/6a or ATEN Cat 6 cable. Apply the appropriate power supply (5V) and verify HDMI settings on the source device. For 1080p over extended distances, enable Long Reach Mode on compatible equipment to achieve up to 150 m transmission.

Recommendations

For optimal performance use high-quality Cat 6 or better cable and keep cable runs away from strong electromagnetic interference. Ensure receivers and source devices support required HDMI audio/video formats and enable Long Reach Mode only when both ends support it.
