AV-zender en -ontvanger Kramer Electronics EXT3-XR-TR 3840x2160 100m

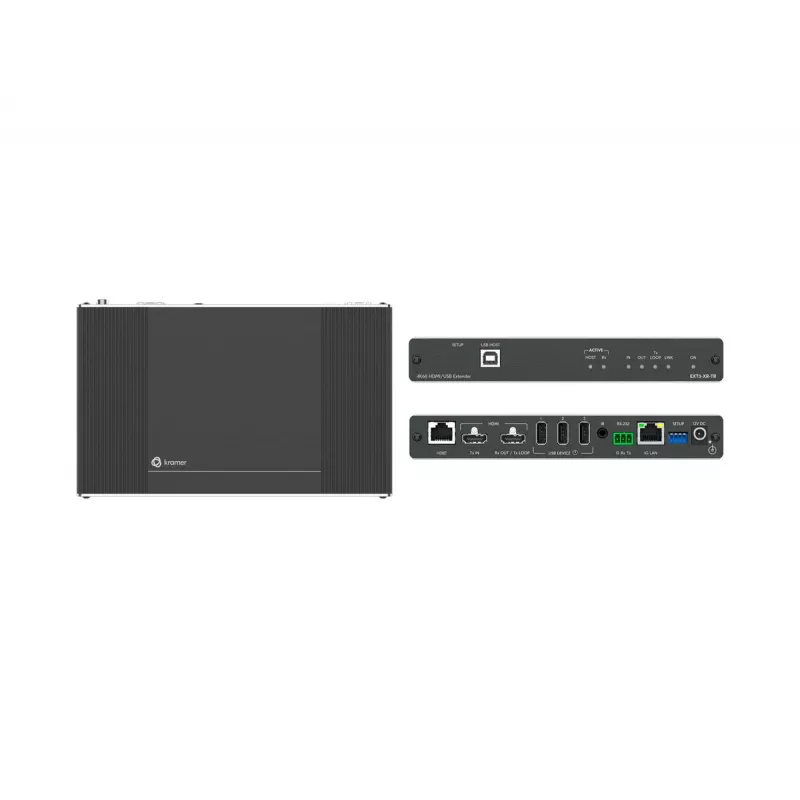

EXT3−XR−TR is a compact AV transmitter and receiver from Kramer Electronics that extends 4K@60Hz (4:4:4) HDMI, USB 2.0, Ethernet, RS‑232 and IR signals over twisted‑pair copper up to 100 m (330 ft). The unit can be configured as either the transmitter or the receiver: in transmitter mode it converts local input signals into an HDBaseT 3.0 stream and in receiver mode it converts the incoming HDBaseT 3.0 stream back to original HDMI, USB, Ethernet, RS‑232 and IR interfaces. The device supports HDMI 2.0 features including HDCP 2.3, EDID and CEC passthrough, HDR10, deep color, x.v.Color™ and multi‑channel uncompressed audio.

Advantages

The EXT3−XR−TR implements HDBaseT 3.0 for extended‑reach AV distribution over standard CAT copper cabling and is interoperable with HDBaseT‑compliant equipment. It supports HDMI mirroring via a loop‑out on the transmitter side, flexible USB 2.0 extension for cameras, audio devices or HID peripherals, up to 32 channels of digital audio, bidirectional Ethernet up to 1 Gbps, bidirectional RS‑232 and IR control. A fan‑less MegaTOOLS™ enclosure enables dropped‑ceiling or side‑by‑side 1U rack mounting, and front status LEDs simplify local maintenance and troubleshooting.

Suitable for

• AV distribution and signal extension in meeting rooms and lecture halls
• Remote camera and USB peripheral connection for conferencing systems
• Digital signage and display walls requiring 4K@60Hz extension
• Control systems that require Ethernet, RS‑232 and IR passthrough

Key specifications

• Maximum video resolution: 3840×2160 @60Hz (4:4:4)
• Extension distance: up to 100 m (330 ft) over CAT twisted‑pair
• HDBaseT version: 3.0
• HDMI version: 2.0 (supports HDCP 2.3, HDR10, CEC, EDID)
• USB: USB 2.0 extension (Type‑A / Type‑B connectivity)
• Audio: up to 32 channels digital uncompressed audio
• Ethernet: bidirectional up to 1 Gbps
• Control: bidirectional RS‑232 and IR
• Power: 12 V DC
• Brand / MPN / EAN: Kramer / 50-80572290 / 7291063098896

How to use

Set the unit to the required role (transmitter or receiver) and connect the source HDMI, USB host or local devices to the appropriate local ports. For transmitter mode, connect a CAT twisted‑pair cable from the unit’s HDBT port to the HDBT port of the remote receiver. For receiver mode, connect the incoming CAT cable to the HDBT port and attach the display, remote USB devices or control interfaces to the unit’s outputs. Use the HDMI loop‑out on the transmitter to feed a local monitor if needed. Apply 12 V DC power and verify link and port status via the front LEDs.

Recommendations

For optimal reach and signal performance use high‑quality CAT copper cables (shielded where appropriate) and Kramer‑recommended cables. Ensure compatible HDBaseT‑compliant devices at both ends, keep cable runs within the specified 100 m limit, and verify EDID/HDCP compatibility between source and display when using protected content.
