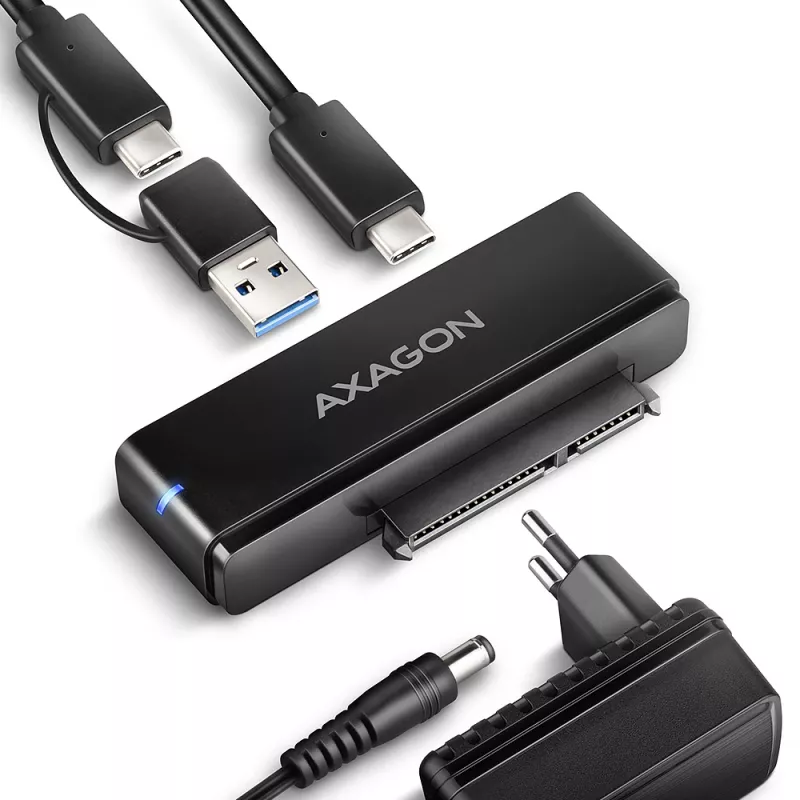

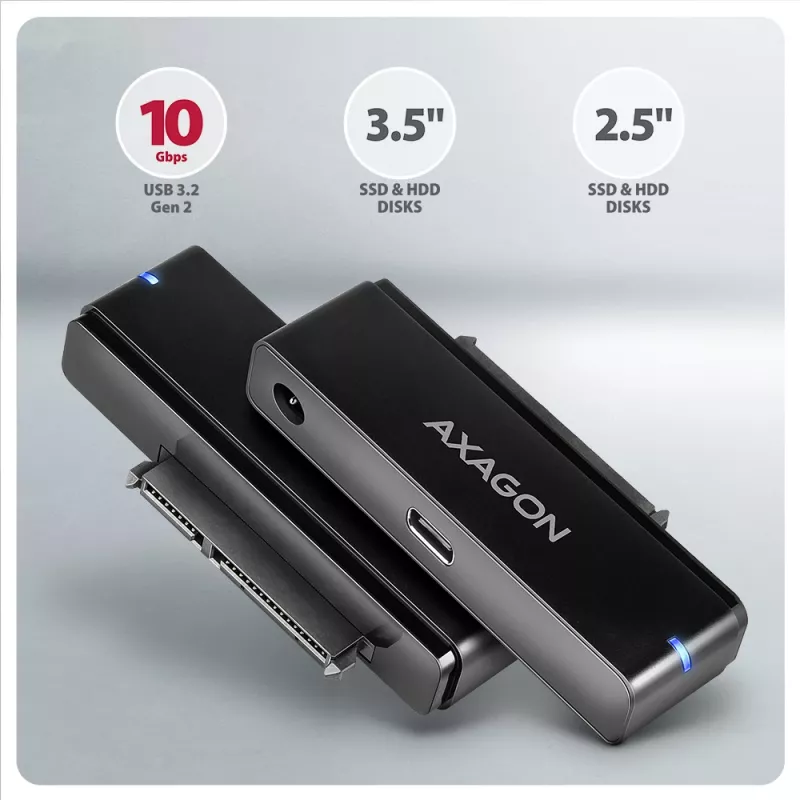

Axagon ADSA-FPX USB-C 10Gbps FAST PORT X adapter voor 2,5-inch/3,5-inch SSD/HDD

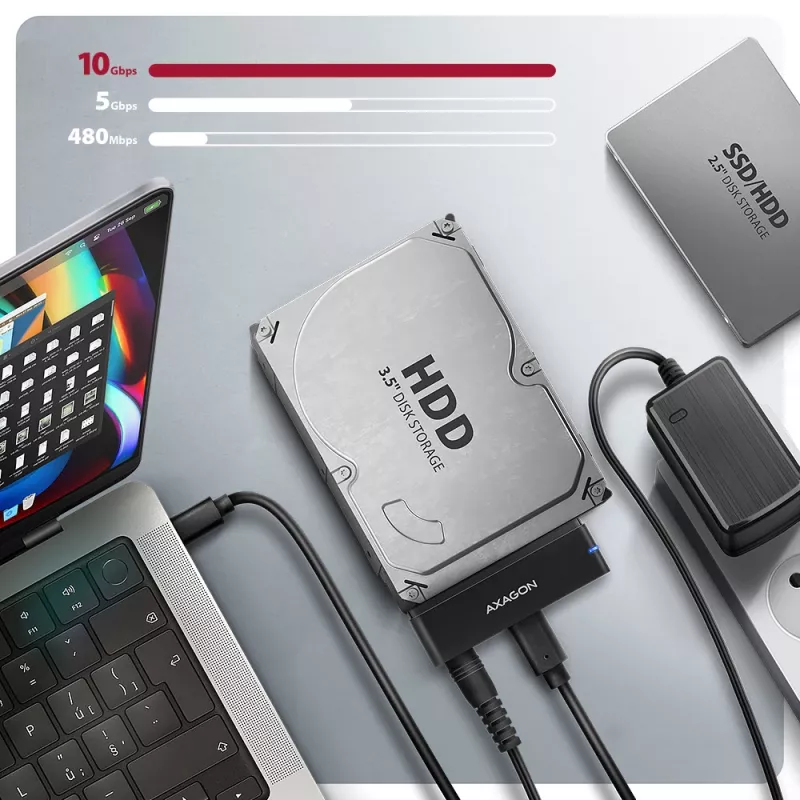

The AXAGON ADSA-FPX FAST PORT X universal adapter with USB-C 10Gbps and SATA 6G interface is designed to easily connect a 2.5" / 3.5" SATA hard drive or SSD to your computer. Thanks to the fast USB 3.2 Gen 2 interface with the transmission rate of up to 10 Gb/s, the speed of 2.5" SSDs is not limited and is approximately 20% faster than USB 3.2 Gen 1 (USB 3.0) adapters or boxes.

In the package you will find a USB-C <-> USB-C cable 60 cm with a fixed USB-C -> USB-A reduction. This solution enhances the versatility of the adapter, so you can connect it to any USB port on your computer, whether it's a double-sided USB-C connector or a traditional USB-A connector. Also included is a 12V/2A (24W) power adapter for powering 3.5" hard drives. The adapter with a 2.5" SSD/HDD just needs to be powered over the USB bus, so there is no need to manipulate the AC adapter.

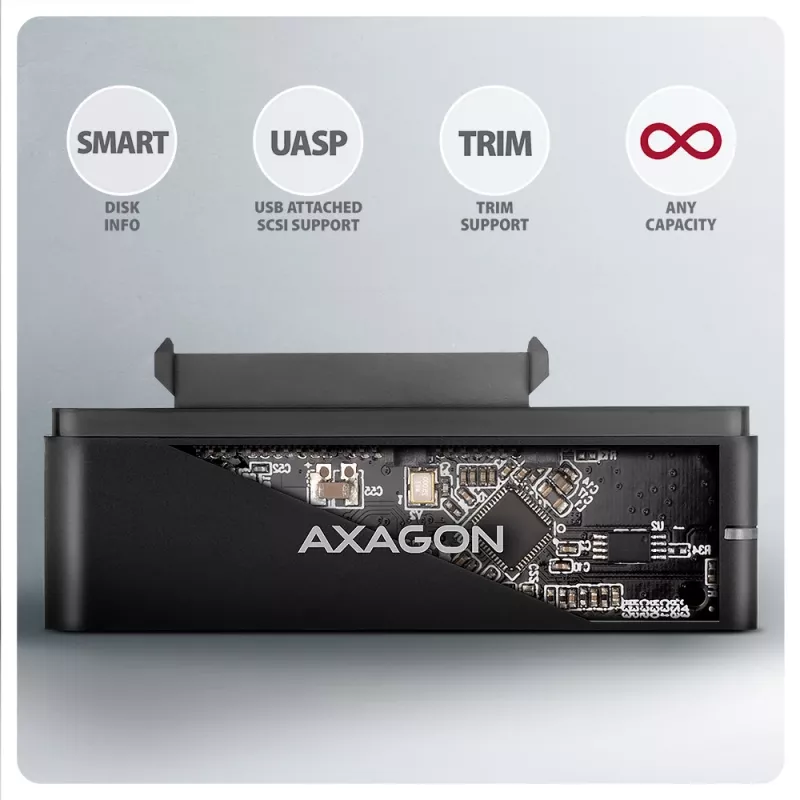

The USB to SATA reduction also supports all important features for seamless operation with different types of drives. Such as UASP for faster data transfer, TRIM for limiting the gradual degradation of SSD performance over time, S.M.A.R.T. for monitoring the status of the drives, BOOT for the ability to boot from drives connected to the reduction, Auto Spindown to automatically put drives to sleep during prolonged inactivity, Turn Off to shut down the drives after removing the device or putting the PC to sleep, and USB Bus Power to power the adapter including connected drives only from the USB port.

The slim and compact adapter enables easy and quick disc replacement without the need for assembly, and at the same time, thanks to its minimal dimensions, it can be readily at hand at any time. The matte design of the cover prevents unwanted fingerprints.

These features make the adapter a very handy and useful tool for frequent work with different types of drives. This makes it an ideal tool for backup, migration, data transfer, storage and recovery, discs testing, etc.

Input:
• USB 10Gbps (USB 3.2 Gen 2), connector USB-C female.
• Compatible with USB 480Mbps, USB 5Gbps, USB 20Gbps, USB4 and Thunderbolt 3/4.

Device support:
• 2.5" SSDs/HDDs,
• 3.5" HDDs,
• SATA M.2 SSD with M.2 -> SATA reduction e.g. AXAGON RSS-M2SD),
• SATA III - 6 Gb/s (600 MB/s) interface,
• max. disk capacity - all without limit.

Other features:
• Supports transmission rates 10.000 / 5.000 / 480 Mbit/s.
• Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).
• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
• The total bandwidth / transmission rate of the adapter is determined by the SATA interface used (theor. 6 Gbit/s).
• Compliant with USB Mass Storage Class specification.
• Supports BOT (Bulk-Only Transport).
• Supports UASP (USB Attached SCSI Protocol) for faster data transfer in Windows 8 and later.
• Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
• Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
• Supports booting from SSD/HDD connected via an USB adapter.
• HDD Auto Spindown - automatic spindown of a disk after period of inactivity lasting 10 minutes.
• HDD Turn Off - turns off the disk after removing the device or spinning down the PC.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Decently bright LED indicating the connection of USB power supply (permanent light) and data transmission (blinking).

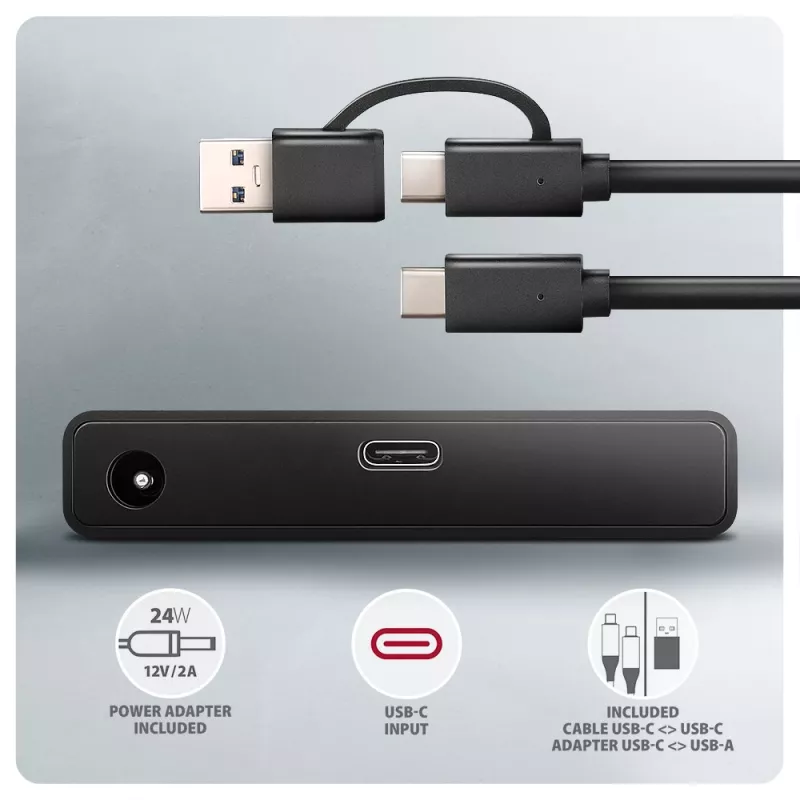

• Connection via USB 3.2 Gen 2 type C female connector.
• Cable USB type C male / USB type C male 60 cm long and reduction USB type C female / USB type A male included in the package.
• Adapter dimensions 14 x 72 x 29 mm (H x W x D).
• Adapter weight 19 g (without cable, without disk, without adapter).

Power supply:
• Power supply via USB bus up to 900mA from one USB port is sufficient for 2.5" HDD/SSD.
• To power the adapter with a 3.5" drive, a compact external AC/DC adapter 12V - 2A (24W) with a 150 cm long cable is included.
• AC adapter dimensions 65 x 65 x 40 mm (including fork).
• Weight of AC adapter 102 g (incl. power cord).

Supported OS:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Windows Server 2008 R2 / 2012 / 2016 / 2019 / 2022 / 2025 and later.

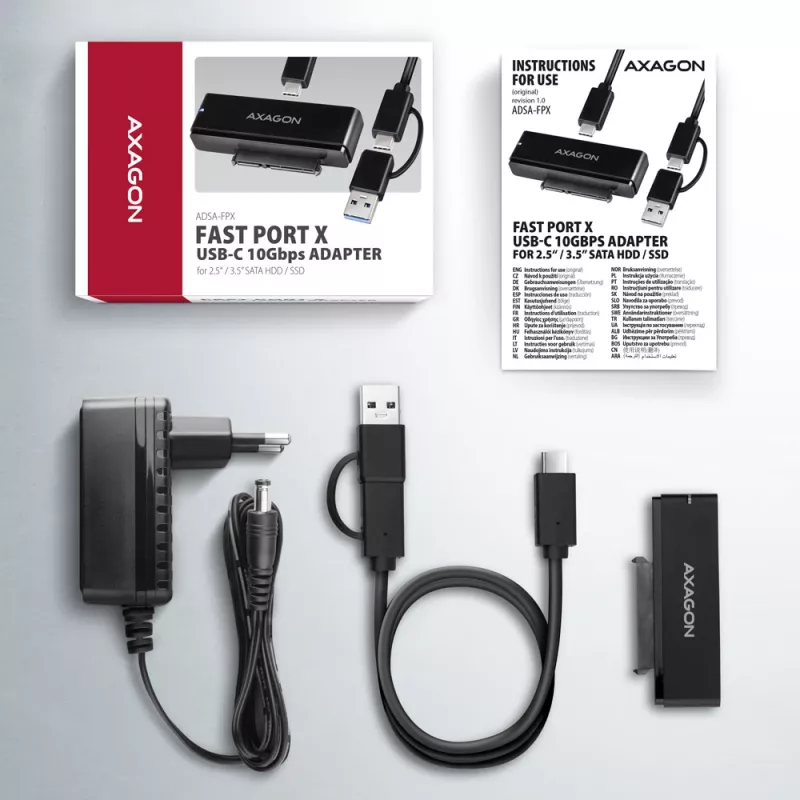

Package contains:
• USB-C 10 Gbps - SATA adapter,
• cable USB-C <-> USB-C 60 cm + USB-C -> USB-A reduction,
• AC adapter 100-240V / 12V-2A,
• multilingual guide CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• packed in a cardboard box.

Axagon ADSA-FPX USB-C 10Gbps FAST PORT X adapter for 2.5"/3.5" SSD/HDD. Host interface: USB Type-C, Output interface: SATA. Product colour: Black, Purpose: PC / Notebook / Tablet, Country of origin: China. Data transfer rate (max): 10 Gbit/s. Other operating systems supported: Android, ChromeOS. Width: 14 mm, Depth: 72 mm, Height: 29 mm
