AXING CFA2602 F-bus naar F-bus inbouwadapter met contramoer CFA02602

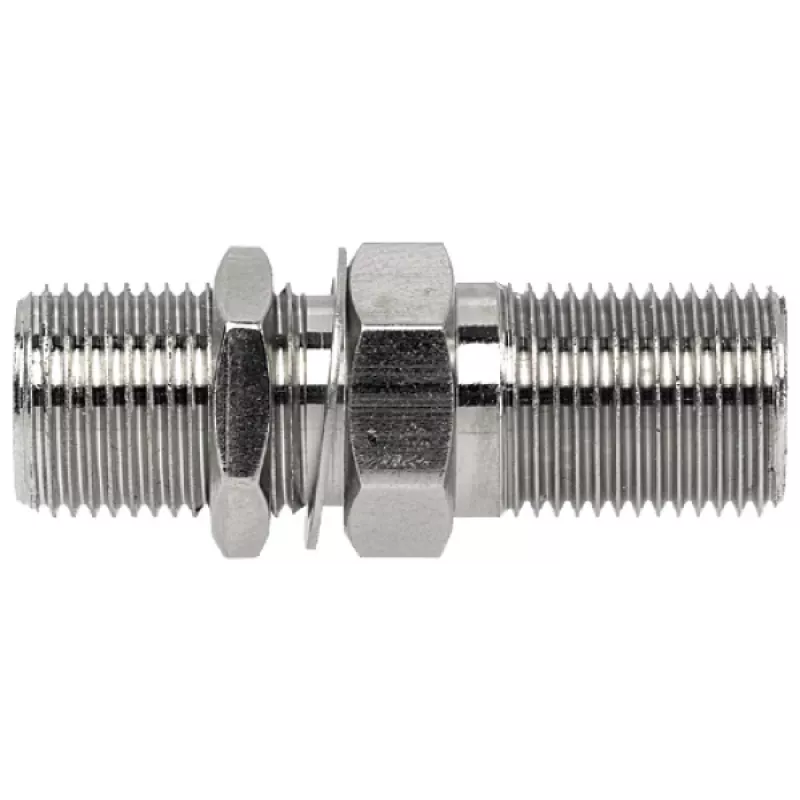

For satellite and cable TV installers, the AXING CFA2602 provides a reliable pass-through connection on panels or enclosures. This F-type female-to-female adapter features a threaded M10 bulkhead mount with lock nut and washer, allowing secure fixation. The nickel-plated brass body and PTFE dielectric ensure stable 75 Ohm impedance across 0–2400 MHz, with shielding over 90 dB.

Key specifications

• Connector type: F female to F female
• Impedance: 75 Ohm
• Frequency range: 0–2400 MHz
• Mounting: M10 bulkhead with lock nut and washer
• Material: Nickel-plated brass, PTFE dielectric
• Shielding factor: > 90 dB

Why choose it

Its compact inline design and included mounting hardware simplify panel installations. The robust metal construction withstands frequent connection cycles, while the high shielding prevents signal leakage in dense RF environments.

Ideal use cases

• Connecting coaxial cables through walls or equipment panels
• Satellite, cable TV, and terrestrial antenna systems
• Professional AV and RF distribution setups

Good to know

The adapter is silver in colour and sold as a single unit. It is compatible with standard F-type connectors and suitable for DVB-S/S2, DVB-C, and DVB-T/T2 signals.
