Axis 01535-001 netwerkswitch Fast Ethernet PoE aluminium 4 poorten

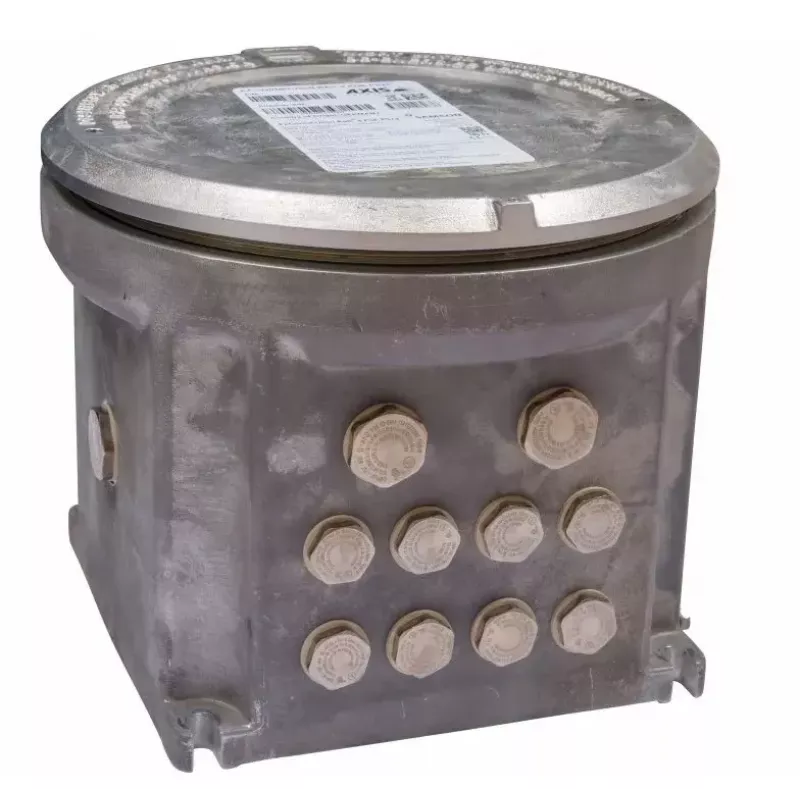

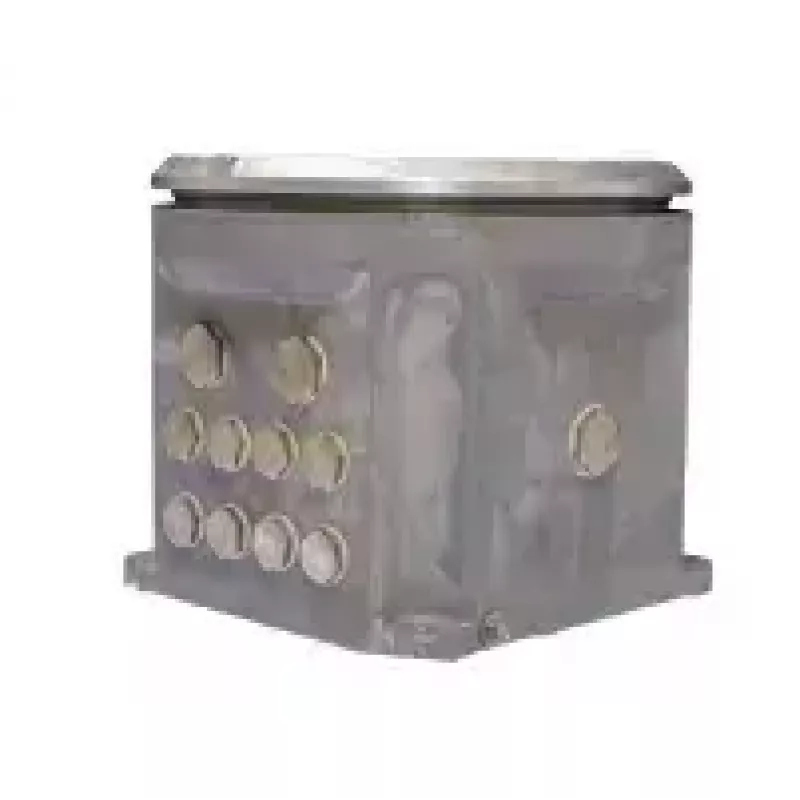

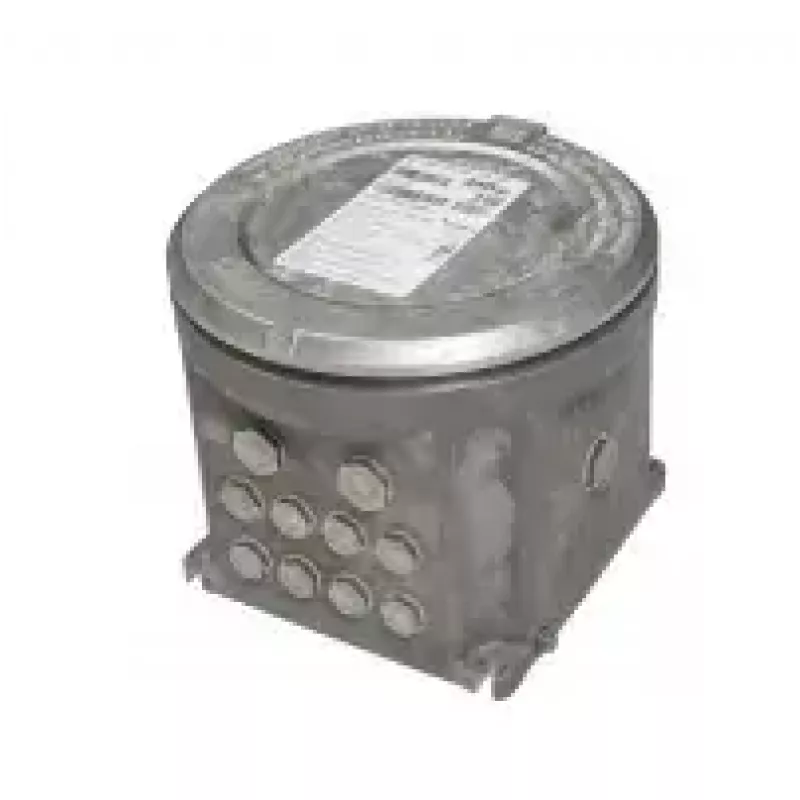

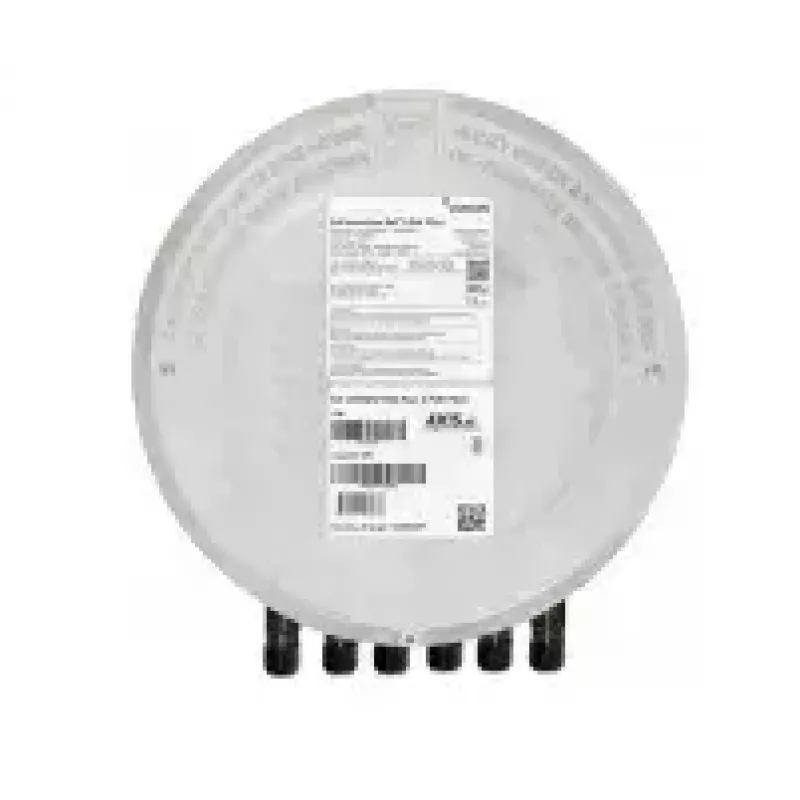

Ex Connection Rail 4-Port PoE is a high-performance PoE switch with a 24 V DC power supply designed for hazardous areas. It provides four Fast Ethernet (10/100) RJ-45 ports with Power over Ethernet (PoE) support and can connect explosion-protected network cameras over long distances using either copper Ethernet or optical fiber (single-mode or multi-mode). The integrated power supply supplies additional current to camera heaters to extend operating temperature range. The Ex d-rated enclosure is made from seawater-resistant, copper-free aluminium and is prepared for wall mounting.

Advantages

The unit combines network switching and a 24 V DC power source in a single, certified Ex d enclosure suitable for hazardous locations. Support for both copper Ethernet and fiber optics allows flexible installation over long distances. PoE capability according to IEEE standards supplies power and data over the same cable while the additional heater power helps maintain camera operation at low temperatures. Robust, corrosion-resistant aluminium housing ensures durability in harsh environments and simplifies wall-mounted deployment.

Suitable for

• Connecting explosion-protected network cameras in hazardous areas
• Long-distance network links using single-mode or multi-mode fiber
• Surveillance installations requiring PoE and extended-temperature operation
• Industrial or maritime sites needing corrosion-resistant, wall-mounted network equipment

Key specifications

• Model: Axis 01535-001
• Ports: 4 × Fast Ethernet (10/100) RJ-45 with PoE
• PoE standard: IEEE 802.3at (PoE+ compatible)
• Power supply: 24 V DC (integrated) with additional heater output for cameras
• Fiber support: single-mode and multi-mode options for long-distance links
• Enclosure: Ex d-rated, seawater-resistant copper-free aluminium, wall-mount ready
• Brand: AXIS
• MPN: 01535-001
• EAN: 7331021064676

How to use

Mount the Ex d-rated enclosure on a suitable wall surface following local installation and explosion-safety regulations. Connect network cameras and other devices to the RJ-45 ports using appropriate shielded Ethernet cabling; for long-distance links, connect fibre transceivers and use single-mode or multi-mode fibre as required. Provide the 24 V DC input per the installation guide and configure PoE settings according to connected device requirements. Ensure grounding and bonding are performed in accordance with hazardous-area electrical standards before powering the unit.

Recommendations

Install and commission the device only by qualified personnel familiar with explosive-atmosphere installations. Use compatible explosion-protected cameras and follow AXIS documentation for cabling, grounding, and PoE power budgets to ensure reliable operation and compliance with safety regulations.
