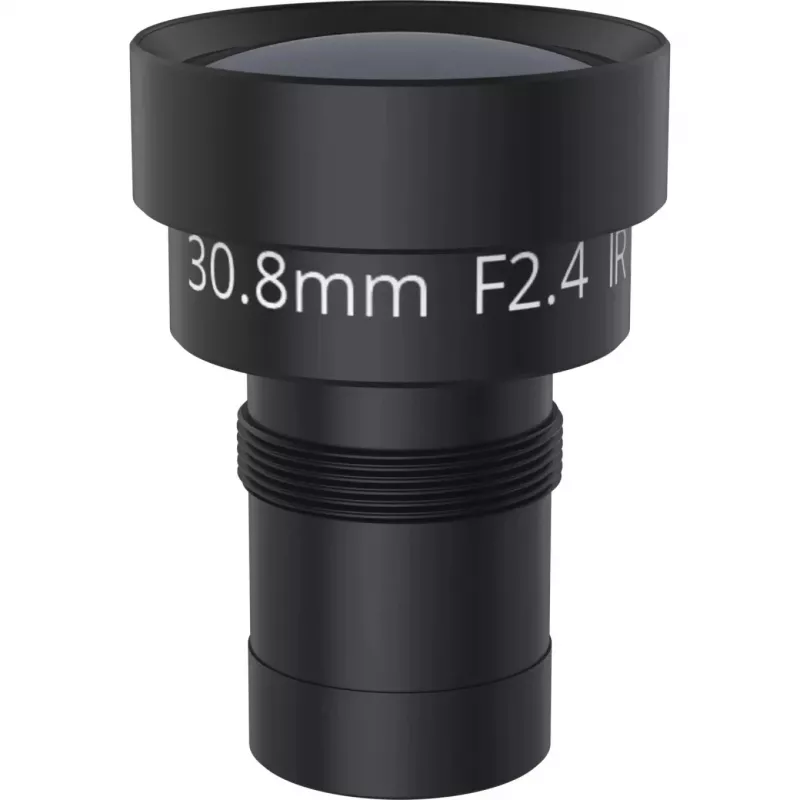

Axis objectief M14 30,8 mm F2.4 IR 4 stuks (03142-001)

For surveillance projects that demand a narrow, long-range view without distortion, this fixed focal lens set delivers a 30.8 mm focal length with F2.4 aperture and IR-optimized optics. Unlike standard M14 lenses that sacrifice sharpness at distance, the Axis 03142-001 is engineered for consistent clarity in both daylight and infrared conditions, making it a dependable choice for perimeter monitoring and corridor coverage.

Highlights

• Fixed 30.8 mm focal length for telephoto surveillance
• F2.4 aperture balances light intake and depth of field
• IR-corrected glass ensures sharp focus under infrared illumination
• M14 mount compatible with Axis F and P12 series sensor units
• Pack of 4 lenses for multi-camera installations

In daily use

Installation is straightforward: thread the lens onto any compatible Axis sensor unit and secure it. The fixed iris and focus are pre-set at the factory, eliminating field adjustments and reducing setup time. With a horizontal field of view of approximately 11° on a 1/2.8" sensor, you can monitor distant gates, long hallways, or fenced perimeters with minimal barrel distortion. The metal and glass construction withstands temperature swings from -30°C to 50°C, so it remains reliable in outdoor enclosures or unheated utility rooms.

Full specifications

• Lens type: Fixed focal, prime
• Focal length: 30.8 mm
• Aperture: F2.4 (fixed)
• Lens mount: M14
• IR correction: Yes
• Image sensor compatibility: 1/4", 1/2.8"
• Horizontal field of view: 11° (with 1/2.8" sensor)
• Vertical field of view: 6° (with 1/2.8" sensor)
• Optical zoom: None
• Operating temperature: -30°C to 50°C
• Storage temperature: -40°C to 65°C
• Material: Glass and metal
• Quantity per pack: 4

Final note

When your Axis F1005-E or P1244 sensor unit needs a longer reach, this four-pack of IR-corrected lenses delivers consistent, focused imagery without the cost of varifocal alternatives.
