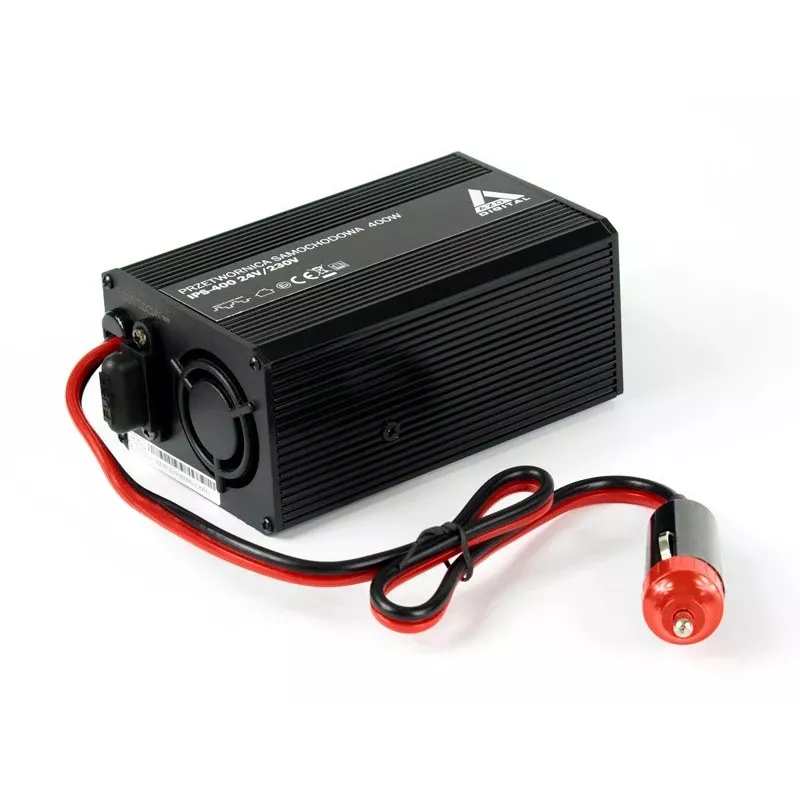

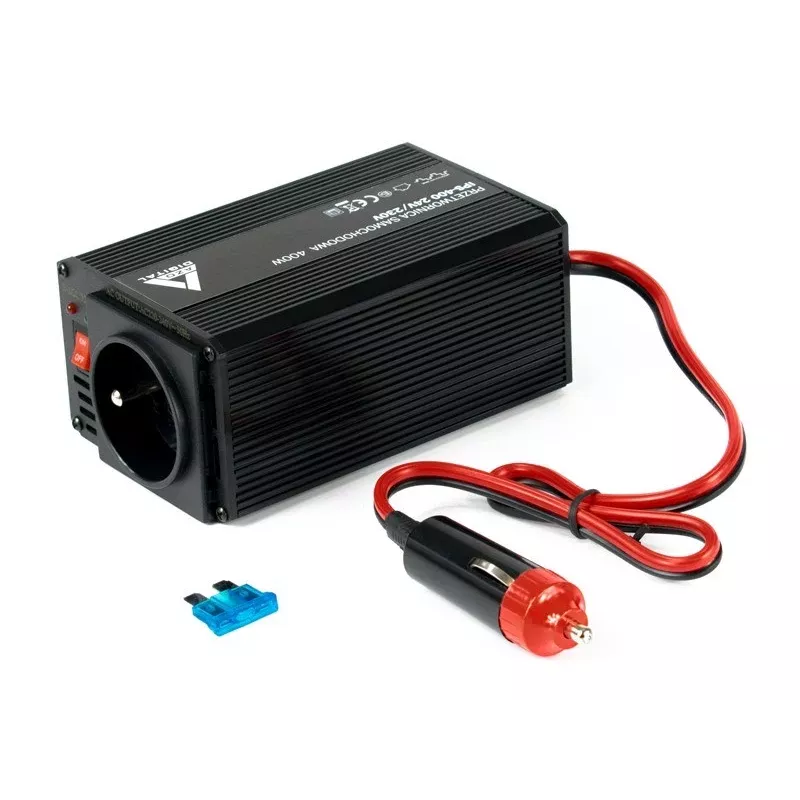

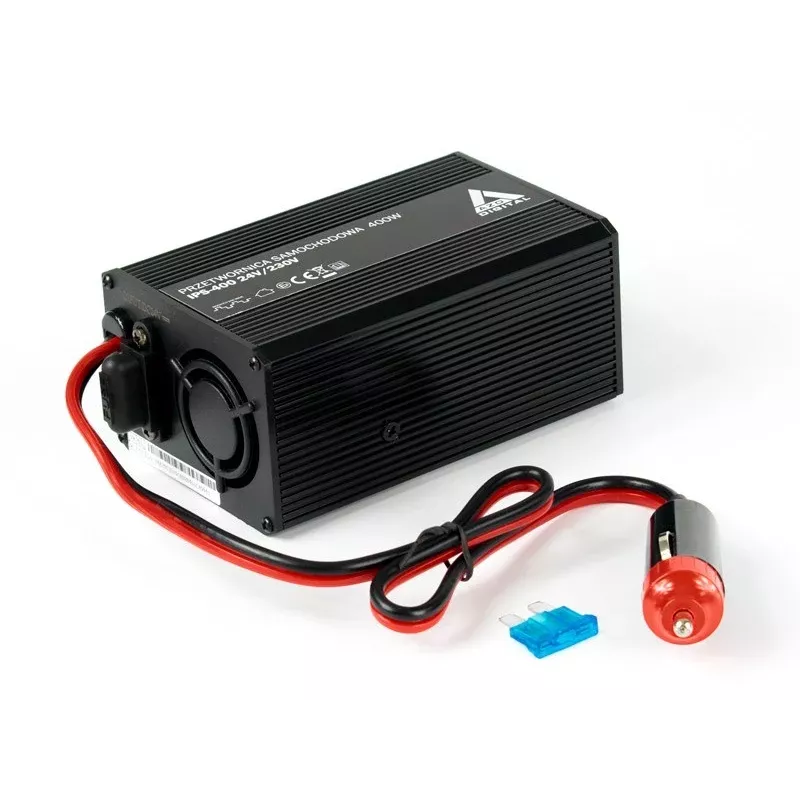

AZO Digital IPS-400 24V DC naar 230V AC gemodificeerde sinus omvormer 400W

The AZO Digital IPS-400 is a robust automotive inverter that converts 24V DC from a vehicle battery into 230V AC, delivering up to 400W of continuous power. With a peak surge capacity of 800W, it easily starts devices with high inrush currents such as power tools, small refrigerators, and pumps. The modified sine wave output is suitable for a wide range of electronics, and the built-in fan keeps the unit cool during extended operation.

Advantages

This inverter features a wide input voltage range of 21V to 31V DC, ensuring stable performance even with fluctuating battery levels. Comprehensive protection circuits guard against overload, short circuit, overheating, overvoltage, undervoltage, and reverse polarity, safeguarding both the inverter and connected devices. The low battery alarm at 21.4V and automatic shutdown at 20.4V prevent deep discharge of your battery. The compact design and included battery clamps allow for quick and secure installation in trucks, buses, boats, and off-grid setups.

Suitable for

• Powering laptops, chargers, and small appliances in commercial vehicles
• Running power tools and emergency equipment on construction sites
• Off-grid cabins and marine applications requiring 230V AC from a 24V battery bank
• Camping and outdoor activities where mains power is unavailable

Key specifications

• Input: 24V DC (range 21V - 31V DC)
• Output: 230V AC, 50 Hz, modified sine wave
• Continuous power: 400W, peak power: 800W
• Efficiency: >85%, no-load current: <300 mA
• Protections: overload, short circuit, thermal, overvoltage, undervoltage, reverse polarity
• Cooling: active fan, operating temperature: -10°C to +40°C
• Output socket: 1x Schuko (Type F)
• Certifications: CE, RoHS

Recommendations

For reliable mobile power conversion, the AZO Digital IPS-400 offers a balance of performance and safety. Ensure your battery is in good condition and use appropriate cable gauges for the input connection. Avoid exceeding the continuous power rating for prolonged periods, and provide adequate ventilation around the unit.
