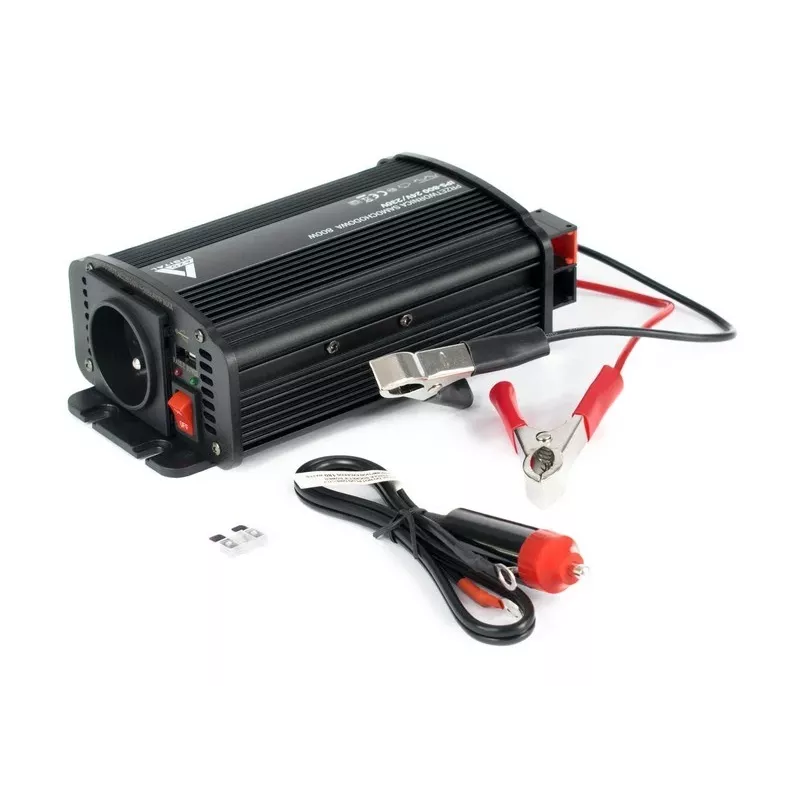

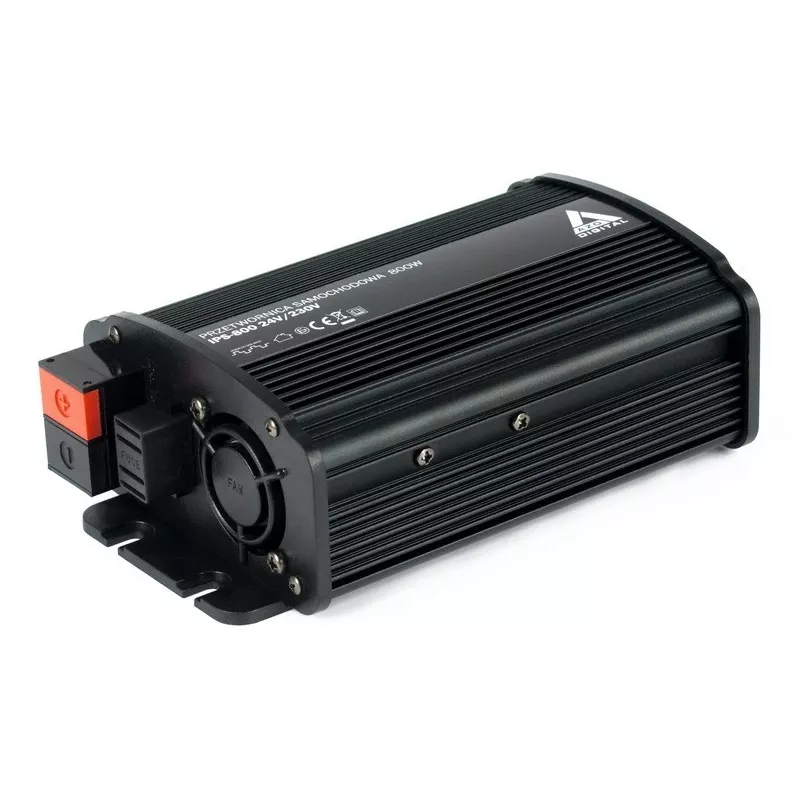

AZO Digital IPS-800U 800W 24V DC naar 230V AC omvormer met gemodificeerde sinusgolf, USB, Schuko-stopcontact, accuklemmen

Automotive power inverter delivering 800W continuous output from a 24V DC battery, converting it to 230V AC modified sine wave. Ideal for powering tools, appliances, and electronics on the road, at worksites, or during outages. Built-in USB port charges mobile devices directly, while the Schuko socket accommodates standard European plugs.

Advantages

High efficiency over 85% minimizes battery drain. Active fan cooling maintains reliable operation. Comprehensive protection against overload, short circuit, over-temperature, under-voltage, and over-voltage safeguards both inverter and connected devices. Low battery alarm and cut-off prevent deep discharge of the source battery.

Suitable for

• Powering laptops, TVs, small power tools, and household appliances from a 24V vehicle or battery bank.
• Mobile workshops, service vehicles, and emergency backup systems.
• Charging USB-powered devices such as phones, tablets, and cameras.

Key specifications

• Input: 21–30V DC (24V nominal)
• Output: 230V AC, 50Hz, modified sine wave
• Continuous power: 800W, peak power: 1600W
• USB output: 5V DC, 2.1A
• Efficiency: >85%
• Protections: overload, short circuit, over-temperature, under-voltage, over-voltage
• Cooling: active fan
• Output socket: 1x Schuko (Type F)

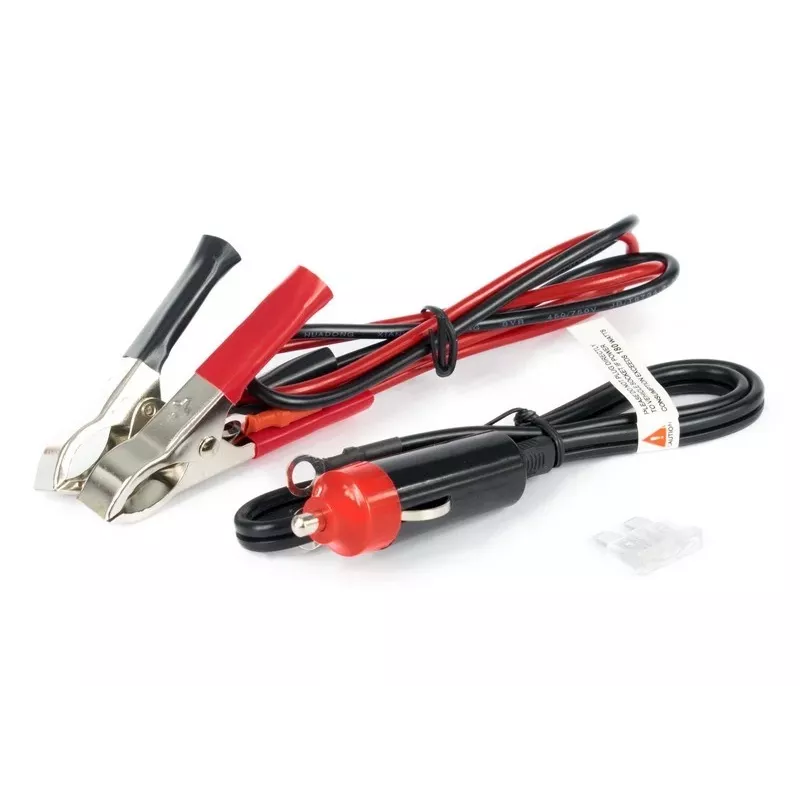

• Input connection: battery clamps
• Operating temperature: 0°C to +40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, connect directly to a 24V battery with sufficient capacity. Ensure proper ventilation around the inverter. Use the low battery alarm as a signal to recharge the source battery to avoid unexpected shutdown.
