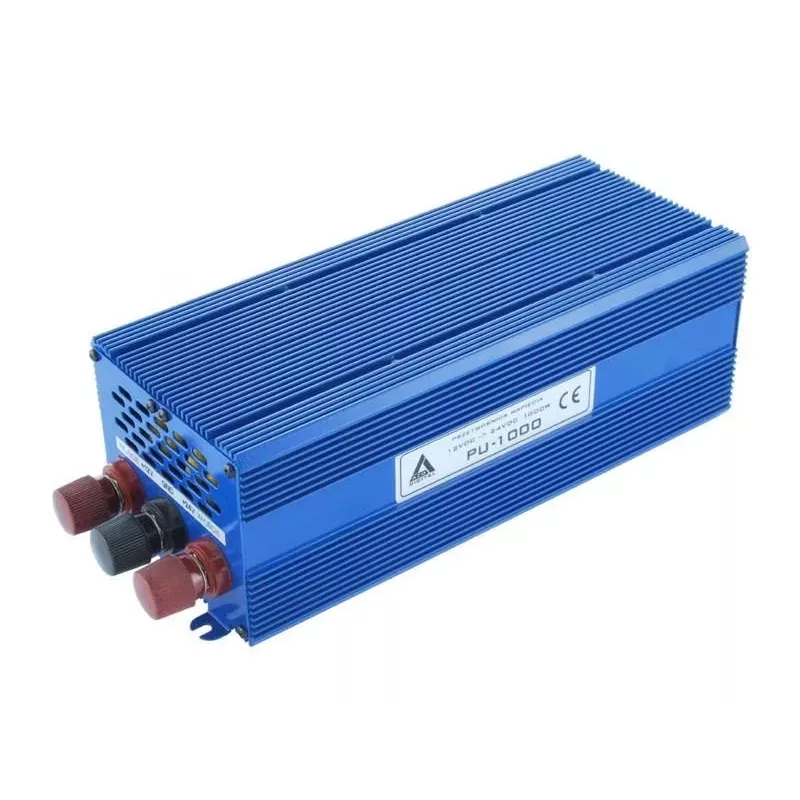

AZO Digital PU-1000 24V 1000W IP21 DC-DC step-up boost spanningsomvormer

The AZO Digital PU-1000 is a high-performance DC-DC step-up (boost) voltage converter designed to deliver a stable 24V DC output from a nominal 12V DC input. With a continuous output power of 1000W and peak power of 2000W, this converter is ideal for demanding industrial and commercial applications. Its robust aluminum housing and IP21 rating ensure reliable operation in various environments.

Advantages

High efficiency exceeding 90% minimizes energy loss and heat generation. Active fan cooling maintains optimal performance even under heavy loads. Comprehensive protection features including overload, short circuit, overvoltage, undervoltage, and overheating safeguard both the converter and connected equipment.

Suitable for

• Industrial automation systems requiring a stable 24V DC supply
• Telecommunications equipment
• LED lighting installations
• Security and surveillance systems
• Any application needing a reliable boost from 12V to 24V DC

Key specifications

• Converter Type: DC-DC Step-up (Boost) Converter
• Input Voltage Range: 10V - 16V DC
• Output Voltage: 24V DC
• Continuous Output Power: 1000W
• Peak Output Power: 2000W
• Continuous Output Current: 41.6A
• Efficiency: >90%
• Cooling Method: Active (Fan Cooled)
• Protection Features: Overload, Short Circuit, Overvoltage, Undervoltage, Overheating
• Input/Output Connection Type: Screw Terminals
• IP Rating: IP21
• Operating Temperature Range: -25°C to +55°C
• Housing Material: Aluminum
• Mounting Type: Surface Mount

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriately rated wiring and fuses. This converter is not galvanically isolated; verify system compatibility before installation.
