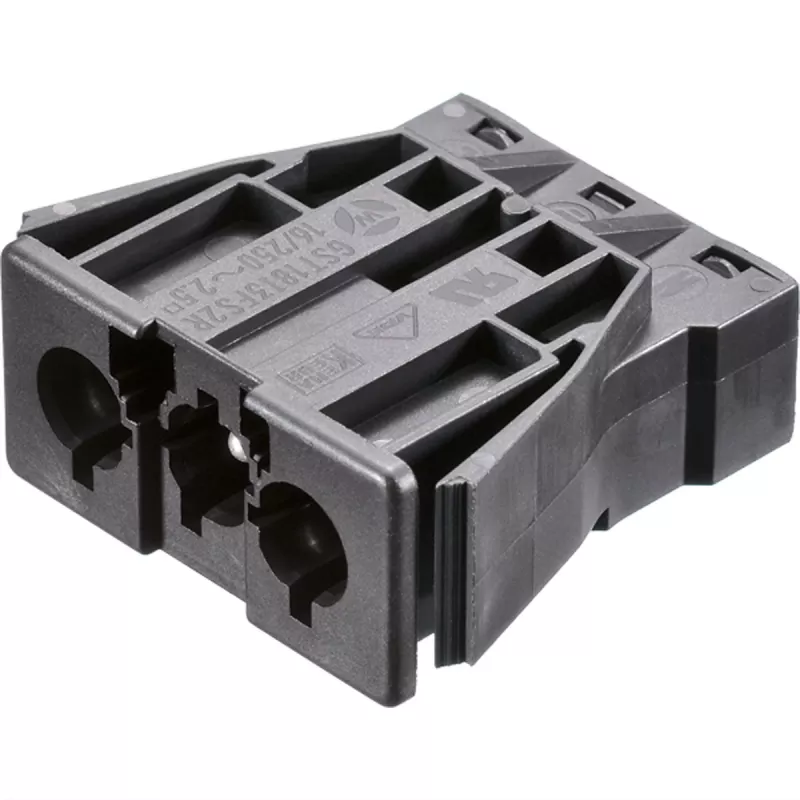

Bachmann power connector - GST18 (S) - zwart

The Bachmann Power Connector GST18 (S) in black is a high-quality male plug designed for modular wiring systems and office furniture power distribution. It features a GST18i3 connector type with screw terminal connection, ensuring reliable and secure electrical connections. Rated for 250 V AC and 16 A, this 3-pole connector is suitable for a wide range of commercial and industrial applications.

Advantages

This power connector offers easy installation with screw terminals, accommodating solid or stranded cables from 0.75 to 2.5 mm². Its robust polyamide housing provides IP20 protection and is rated UL94 V-0 for flammability, ensuring safety and durability. The compact straight form factor allows for space-saving integration into power distribution units.

Suitable for

• Modular wiring systems in offices and commercial buildings
• Power distribution in furniture systems (desks, workstations)
• Industrial control cabinets and panel building
• Replacement or extension of GST18i3 compatible connections

Key specifications

• Connector Type: GST18i3
• Gender: Male (Plug)
• Number of Poles: 3
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Connection Method: Screw terminal
• Cable Cross-Section (Solid/Stranded): 0.75 - 2.5 mm²
• Housing Material: Polyamide (PA)
• Protection Class: IP20
• Operating Temperature: -5°C to +40°C
• Flammability Rating: UL94 V-0
• Approvals: VDE, CE
• Colour: Black

Recommendations

For optimal performance, use with matching GST18i3 sockets and ensure proper cable stripping and tightening of screw terminals. Suitable for use in dry indoor environments only.
