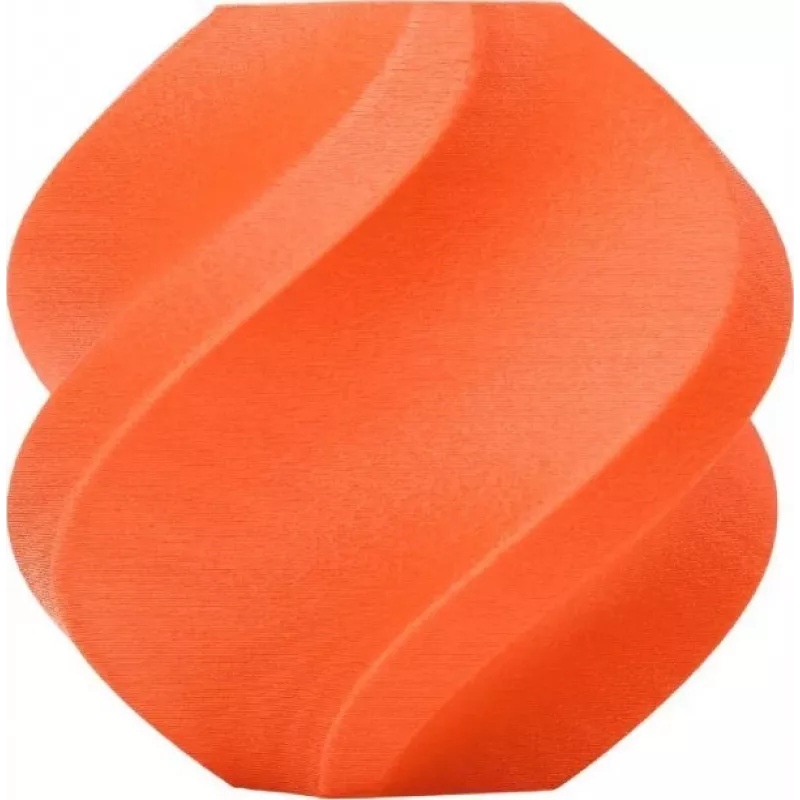

BambuLab PA6-GF oranje (72200) met spoel, 1kg

BambuLab PA6-GF is a glass fiber reinforced polyamide 6 filament, offering exceptional strength, stiffness, and heat resistance. This orange variant comes on a spool with 1kg net weight, ideal for functional prototyping and end-use parts.

Advantages

High tensile strength and flexural modulus, excellent heat deflection temperature up to 160°C, and good layer adhesion. The glass fiber content (~20%) enhances dimensional stability and reduces warping.

Suitable for

• Functional prototypes and jigs
• Fixtures and tooling
• High-strength mechanical parts
• Automotive components
• Enclosure-friendly with AMS compatibility

Key specifications

• Material: PA6-GF (Polyamide 6 Glass Fiber)
• Filament Diameter: 1.75 mm
• Net Weight: 1 kg
• Colour: Orange
• Spool Included: Yes
• Recommended Nozzle Temperature: 280-300 °C
• Recommended Bed Temperature: 80-100 °C
• Printing Speed: Up to 150 mm/s
• Glass Fiber Content: ~20%
• Tensile Strength (X-Y): 60 MPa
• Flexural Modulus (X-Y): 3000 MPa
• Heat Deflection Temperature (HDT @ 0.45 MPa): 160 °C
• Density: 1.25 g/cm³
• Moisture Sensitivity: High (dry before use)
• Abrasion Resistance: High (use hardened steel nozzle)
• AMS Compatibility: Yes
• Recommended Build Plate: Engineering Plate, High-Temp Plate
• Enclosure Recommended: Yes

Recommendations

For best results, dry the filament at 80°C for 8-12 hours before printing. Use a hardened steel nozzle due to abrasive glass fibers. An enclosure is recommended to maintain stable temperature and minimize warping.
