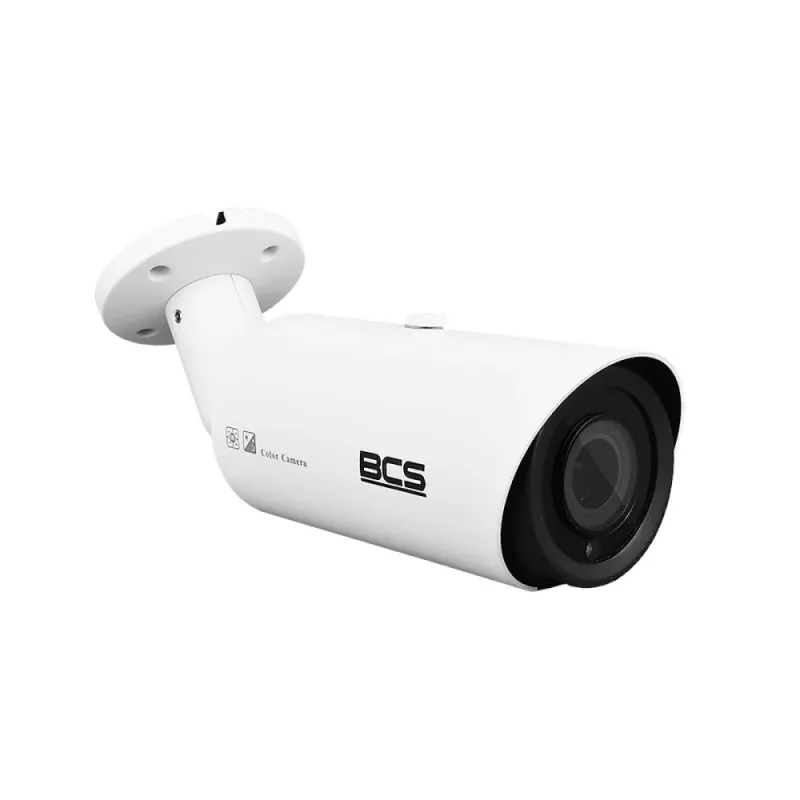

BCS analoge HD turret camera 8MP BCS-TA58VSR5(2)

The BCS-TA58VSR5(2) is a high-performance Analog HD turret camera delivering 8 Megapixel (4K UHD) resolution for exceptional surveillance clarity. Featuring a 1/2.8" CMOS sensor and a manual varifocal lens (2.8-12mm), this camera provides a wide horizontal angle of view from 105° to 33°, making it suitable for various monitoring scenarios. With switchable video output (AHD/TVI/CVI/CVBS) and advanced features like DWDR, 2D/3D DNR, and OSD menu control via Coaxitron, it ensures reliable and flexible operation. The IP67-rated metal housing and 4x array IR LEDs with up to 50m range guarantee robust performance in outdoor and low-light conditions.

Advantages

True 8MP 4K UHD resolution delivers crisp, detailed images. The varifocal lens allows precise field-of-view adjustment, while the switchable video output ensures compatibility with most DVRs. DWDR and 3D DNR enhance image quality in challenging lighting. IP67 protection and durable metal construction ensure long-term reliability in harsh environments.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Retail and commercial premises
• Warehouses and industrial sites
• Residential security

Key specifications

• Image Sensor: 1/2.8" CMOS
• Effective Pixels: 3840(H) × 2160(V)
• Resolution: 8 Megapixel (4K UHD)
• Video Output: AHD / TVI / CVI / CVBS (Switchable)
• Frame Rate: 8MP@15fps, 4MP@25/30fps, 2MP@25/30fps
• Lens: Manual Varifocal 2.8-12mm
• Horizontal Angle of View: 105° ~ 33°
• IR Illuminators: 4x Array IR LEDs, up to 50m
• Minimum Illumination: 0.001 Lux @ F1.2 (Color), 0 Lux (IR On)
• Day/Night: Auto (ICR) / Color / B/W
• WDR: DWDR (Digital WDR)
• Noise Reduction: 2D/3D DNR
• OSD Menu: Yes (Coaxitron)
• Ingress Protection: IP67
• Housing Material: Metal
• Power Supply: DC 12V ±10%
• Power Consumption: Max 6W (IR On)
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a high-quality DC 12V power supply and ensure proper cable connections. The camera supports up to 50m IR range; consider the mounting height and environment for best night vision. Compatible with most AHD/TVI/CVI/CVBS DVRs.
