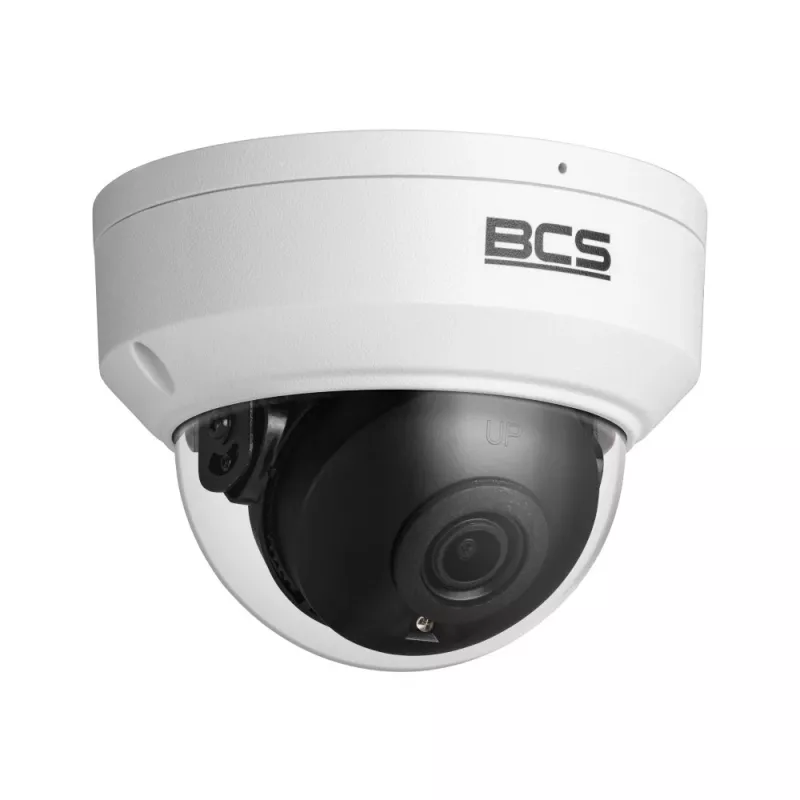

BCS-P-DIP14FWR3-Ai 4MP IP-domecamera

The BCS-P-DIP14FWR3-Ai is a 4 MP IP dome camera from the BCS POINT product line. It features a 1/3'' CMOS sensor, a fixed 2.8 mm lens, and IR illumination up to 30 m.

Key features

• 4 MP resolution (2560×1440)
• Fixed 2.8 mm lens, F2.0 aperture
• IR LED illumination up to 30 m
• H.265 / H.265+ / H.264 / MJPEG video compression
• Built-in microphone
• AI functions: perimeter protection, object recognition
• IP67 and IK10 rated
• PoE (802.3af) or 12V DC power

Specifications

• Brand: BCS
• MPN: P-DIP14FWR3-Ai
• Product line: BCS POINT
• NDAA: National Defense Authorization Act
• Cloud recording BCS: Yes
• Camera type: Dome
• Resolution: 4 MP
• Sensor: 1/3'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2560(H)×1440(V)
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F2.0
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Field of view: H: 101.5° V: 55.6° D: 111.6°
• DORI: Detect 63m / Observe 25m / Recognize 13m / Identify 6m
• Camera sensitivity: 0.01Lux(F2.0,AGC) 0Lux(B/W,IR)
• S/N ratio: 52dB
• White balance: (AWB) Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1~1/100000s
• Gain control: (AGC) Auto / manual
• Noise reduction: 2D/3D DNR
• RoI: Region of Interest
• Defog: Digital
• Image rotation: Mirror, Flip 0°/90°(corridor mode)/180°/270°
• Number of streams: 2
• Resolutions: 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 640×360 / 2CIF(704×288) / CIF(352×288)
• Main stream: 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps
• Second stream: 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
• Bitrate: 128Kbps~6144kbps
• Video compression: H.265 / H.265+ / H.264 / MJPEG
• Day/night: ICR
• Illuminator type: IR LED
• IR range: 30m
• Microphone: Yes
• Audio compression: G.711A / G.711U
• Storage: NAS(NFS)
• Memory card slot: microSD 512GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100Mbps
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication RTSP, Digest Authentication HTTP, TLS 1.2, WSSE, Digest Authentication ONVIF, IP adress filtering
• Power supply: 12V DC / PoE(802.3af)
• Power consumption: max 4W
• Housing colour: White
• Ingress protection: IP67
• IK10: Yes
• Surge protection: 4kV
• Operating conditions: -30°C~+60°C max 95% RH
• Dimensions: Ø109×83mm
• Weight: 0.36kg
• Housing: Metal
• Ai - Built-in intelligent functions
• Ai - Perimeter protection: Area intrusion, line crossing
• Ai - Object recognition: Human recognition for area intrusion, line crossing reduces false alarms
