BCS-P-DPIP24FSR3-Ai2 4MP IP-domecamera

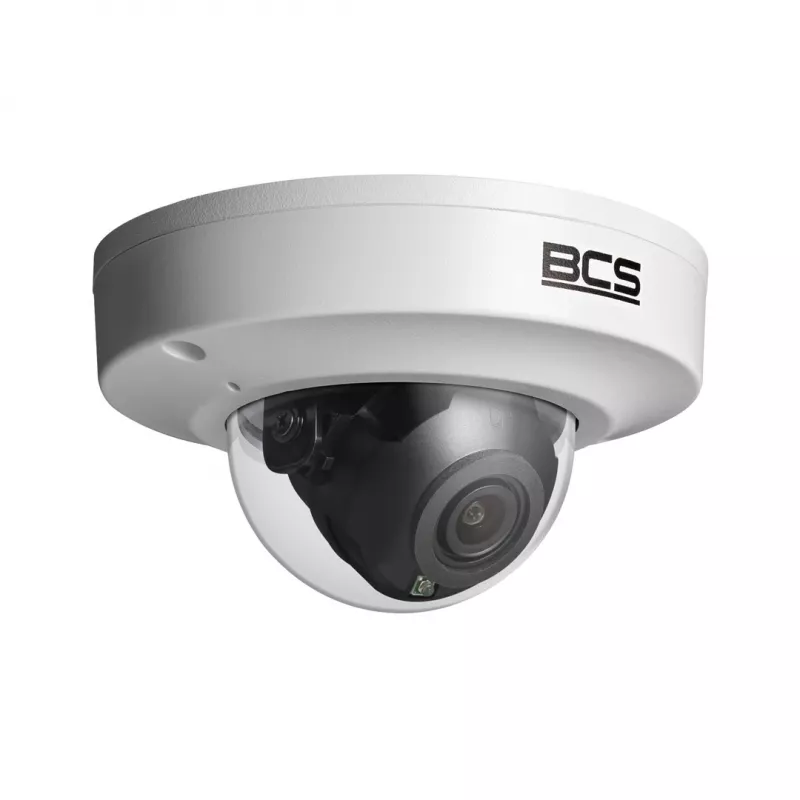

The BCS-P-DPIP24FSR3-Ai2 is a 4MP IP dome camera from the BCS POINT product line. It features a 1/2.7'' CMOS sensor with Progressive Scan and a fixed 2.8 mm lens with F1.6 aperture. The camera supports H.265/H.265+/H.264/H.264+/MJPEG video compression and offers IR illumination up to 30m.

Key features

• 4 Mpx resolution
• 1/2.7'' CMOS sensor, Progressive Scan
• Fixed 2.8 mm lens, F1.6 aperture
• IR LED illumination up to 30m
• H.265 / H.265+ / H.264 / H.264+ / MJPEG compression
• Built-in microphone
• AI functions: perimeter protection, object recognition, face detection
• microSD card slot up to 256GB
• PoE (802.3af) or 12VDC power

Specifications

• Brand: BCS
• MPN: P-DPIP24FSR3-Ai2
• Product line: BCS POINT
• NDAA: National Defense Authorization Act
• Camera type: Dome
• Resolution: 4 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2688(H)×1520(V)
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Angle of view: H: 101.1° V: 55.3° D: 111.1°
• DORI: Detect 63m / Observe 25m / Recognize 13m / Identify 6m
• Camera sensitivity: 0.002Lux(F1.6,AGC) 0Lux(B/W,IR)
• White balance: Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1~1/100000s
• Gain control: Auto / manual
• Noise reduction: 2D/3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 3
• Resolutions: 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
• Main stream: 2688×1520@30fps 2560×1440@30fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps
• Second stream: 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
• Third stream: 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
• Bitrate: 128Kbps~16Mbps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night: ICR
• Illuminator type: IR LED
• Illumination: 30m
• Microphone: Yes
• Audio input: 1
• Audio output: 1
• Audio compression: G.711
• Alarm input: 1
• Alarm output: 1
• Memory card slot: microSD 256GB
• Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100Mbps
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
• Power supply: 12VDC / PoE(802.3af)
• Power consumption: max 4.5W
• Housing color: White
• Operating conditions: -30°C~+55°C max 95% RH
• Dimensions: Ø109×62mm
• Weight: 0.22 kg
• AI - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• AI - Perimeter protection: Area intrusion, line crossing
• AI - Object recognition: Person/vehicle recognition for area intrusion, line crossing reduces false alarms
• AI - Face detection: Face detection and tracking, face capture
