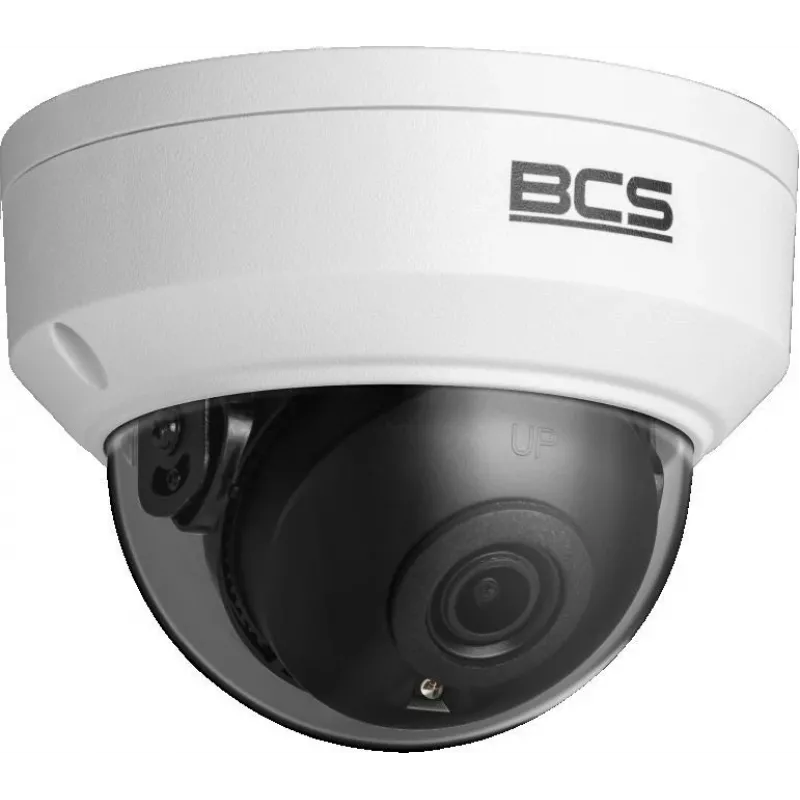

BCS POINT BCS-P-DIP15FSR3-Ai 5MP IR netwerkcamera

The BCS POINT BCS-P-DIP15FSR3-Ai is a high-performance 5MP IR network camera designed for professional surveillance. Featuring advanced AI analytics, true WDR, and robust IP67/IK10 construction, it delivers reliable 24/7 security in demanding environments.

Advantages

Equipped with Smart IR for up to 30m night vision, 120dB True WDR for clear imaging in high-contrast scenes, and AI-powered detection including Smart Motion Detection Plus (SMD+), Perimeter Protection, and Face Detection. The metal casing ensures durability, while PoE support simplifies installation.

Suitable for

• Outdoor perimeter surveillance
• Retail and commercial premises
• Industrial sites and parking lots
• Smart city and traffic monitoring

Key specifications

• Sensor: 1/2.7" 5MP Progressive Scan CMOS
• Max Resolution: 2592x1944 (5MP)
• Lens: 2.8mm fixed focal, 103° HFOV
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• AI Features: SMD+, Perimeter Protection, Face Detection
• Power: DC 12V, PoE (802.3af), max 5.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100Mbps
• WDR: 120dB True WDR
• Min. Illumination: 0.005 Lux @ F1.6 (Color)
• Operating Temperature: -30°C to +60°C
• Material: Metal casing

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is rated for continuous recording (e.g., high endurance).
