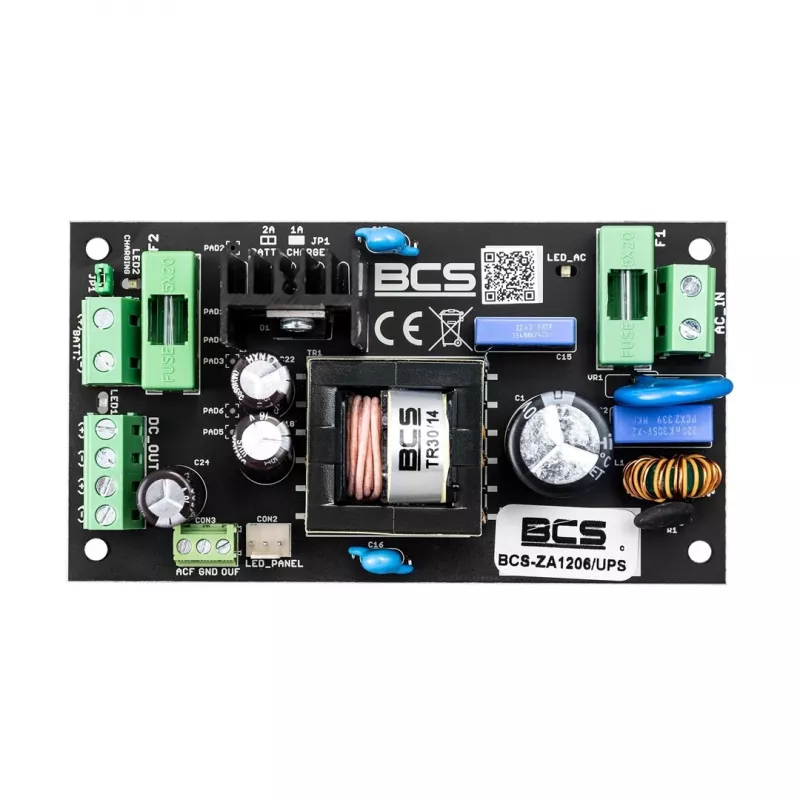

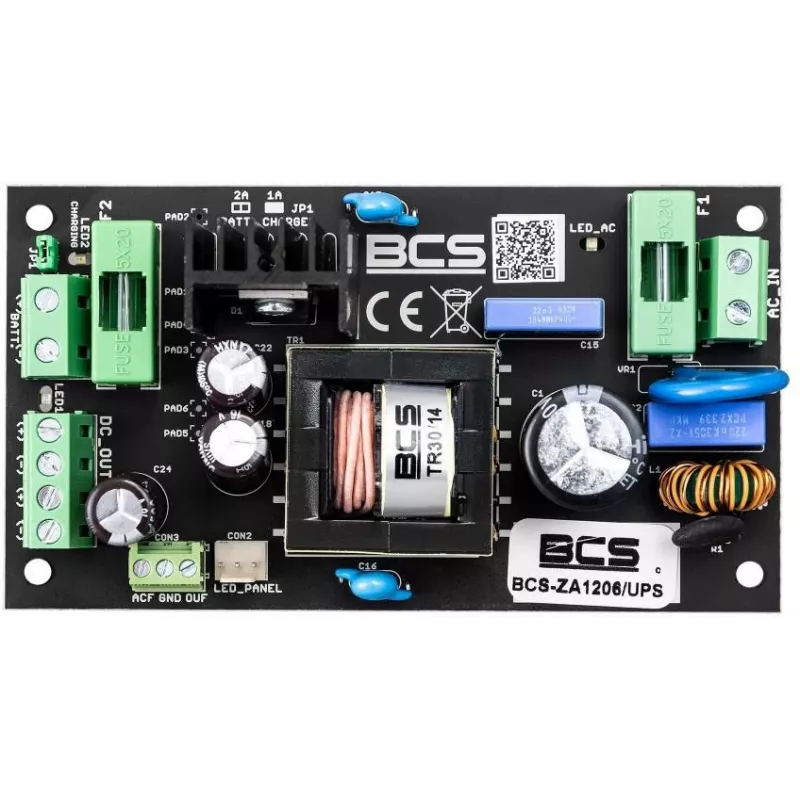

BCS-ZA1206/UPS 12V 6A 72W AC/DC-voeding met batterijbuffering (UPS)

Uninterruptible 12V DC power supply with integrated UPS function, delivering a continuous 6A output (72W) and automatic switchover to battery backup during mains failure. Ideal for security, networking, and industrial systems requiring uninterrupted operation.

Advantages

Intelligent charging circuit for lead-acid batteries (AGM/Gel) from 7Ah to 24Ah, with max 1.5A charge current. Passive convection cooling and durable metal housing ensure silent, maintenance-free operation indoors. Comprehensive protection against short circuits, overload, over-voltage, deep discharge, and reverse polarity safeguards both the power supply and connected devices.

Suitable for

• CCTV cameras and video surveillance systems
• Network switches, routers, and IP devices
• Access control and security systems
• Any 12V DC application requiring uninterrupted power

Key specifications

• Input: 230V AC, 50/60Hz
• Output: 12V DC, 6A (72W)
• Battery charging current: max. 1.5A
• Battery types: Lead-acid (AGM/Gel), 7Ah, 17Ah, 24Ah
• Protection: Short-circuit, Overload, Over-voltage, Deep discharge, Reverse polarity
• LED indicators for AC input, DC output, and battery status
• Wall-mountable metal enclosure
• Operating temperature: -10°C to +40°C
• Efficiency: >80%
• Ripple and noise: <100mV

Recommendations

For reliable backup power in low-voltage systems, pair this unit with a compatible 12V lead-acid battery (7Ah to 24Ah) to ensure seamless operation during outages.
