Behringer WAHWAH optisch wah-effectpedaal met boost

Optical control delivers a wear-free wah sweep with zero scratchy-pot noise, while the built-in +15 dB boost kicks in via a dedicated switch for instant lead volume.

Overview

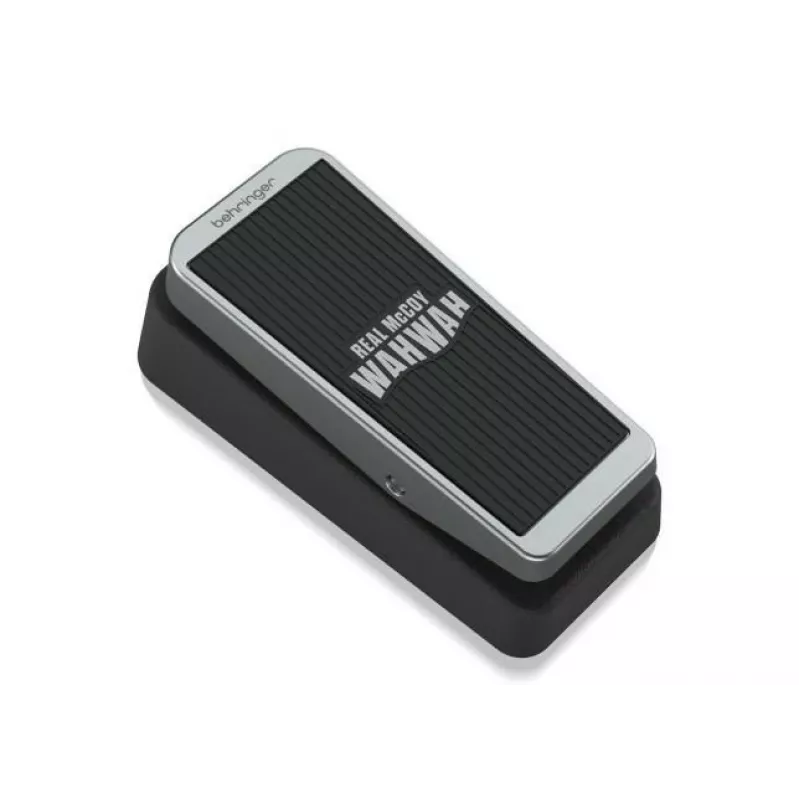

The Behringer WAHWAH is a high-performance wah effects pedal built around a precision optical control system. Unlike traditional potentiometer-based wahs, the optical mechanism eliminates mechanical wear, ensuring consistent performance and a long lifespan. The pedal features a spring-back mechanism that automatically returns to the heel-down position when you lift your foot, making it ideal for quick, expressive playing. Two adjustable controls—Q and frequency range—let you shape the wah character from subtle to aggressive, while the heel-down and toe-down frequencies can be fine-tuned to match your instrument and style.

What stands out

• Wear-free optical control for noise-free, reliable operation
• Built-in boost function with up to +15 dB gain, activated by a kick-down switch
• Adjustable Q and frequency range for custom wah voicing
• Spring-back pedal mechanism for instant return to heel-down position
• Buffered bypass preserves signal integrity when the effect is off
• Dual LED indicators for effect on/off and boost on/off status
• High-impact plastic enclosure for durability without excessive weight

Technical details

• Effect type: Wah
• Control type: Optical (wear-free)
• Input connector: 1/4" TS jack
• Output connector: 1/4" TS jack
• Power supply: 9V DC (battery or optional adapter)
• Power connector: 2.1mm barrel, center negative
• Current draw: approx. 20 mA
• Input impedance: 270 kOhm
• Output impedance: 1 kOhm
• Bypass type: Buffered bypass
• Pedal mechanism: Spring-back (auto-return)
• Pedal resistance: Adjustable
• Enclosure material: High-impact plastic
• LED indicators: Effect On/Off, Boost On/Off

Our verdict

The Behringer WAHWAH combines modern optical technology with classic wah tones, plus a handy boost for solos. Its adjustable parameters and spring-back action make it a versatile and reliable choice for guitarists and bassists alike.
