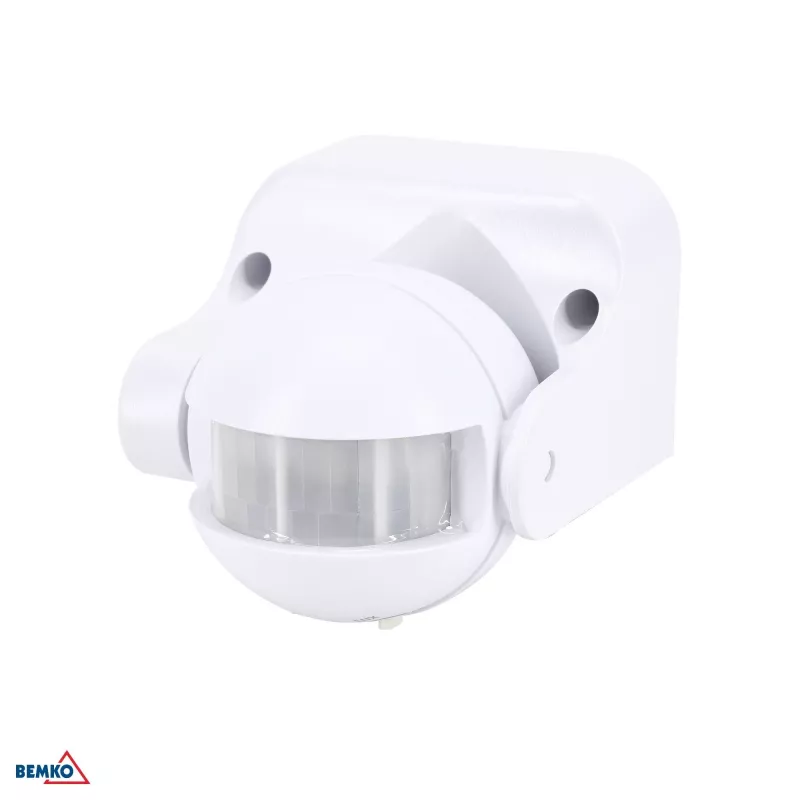

BEMKO PIR-bewegingsmelder 1200W 180° wit

The BEMKO PIR Motion Sensor 1200W 180° White is a high-performance passive infrared sensor designed for automatic lighting control in both indoor and outdoor environments. With a wide 180° detection angle and adjustable range up to 12 meters, it ensures reliable motion detection for enhanced security and energy efficiency.

Advantages

Energy-saving automatic lighting control; adjustable time delay and ambient light threshold; robust IP44 weatherproof design for outdoor use; easy wall or surface mounting.

Suitable for

• Corridors, staircases, and hallways
• Garages, basements, and storage rooms
• Garden paths, patios, and entrances
• Office and commercial spaces

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Incandescent Load: 1200W
• Max LED/Fluorescent Load: 300W
• Power Supply: 220-240V AC, 50/60Hz
• Detection Range: 5-12m (Adjustable)
• Ambient Light Setting: <3-2000 LUX (Adjustable)
• Time Delay Setting: 10s (±3s) to 7min (±2min) (Adjustable)
• Installation Height: 1.8-2.5m
• IP Rating: IP44
• Colour: White
• Material: ABS
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Power Consumption (Operating): 0.45W
• Power Consumption (Standby): 0.1W
• Mounting Type: Wall / Surface Mount
• Application: Indoor & Outdoor Lighting Control

Recommendations

For optimal performance, install at a height of 1.8-2.5m and avoid direct exposure to heat sources or HVAC vents. Adjust the LUX and time delay settings according to your environment.
