Platte kabel 4 geleiders ACT Modular TD604Z zwart 100m

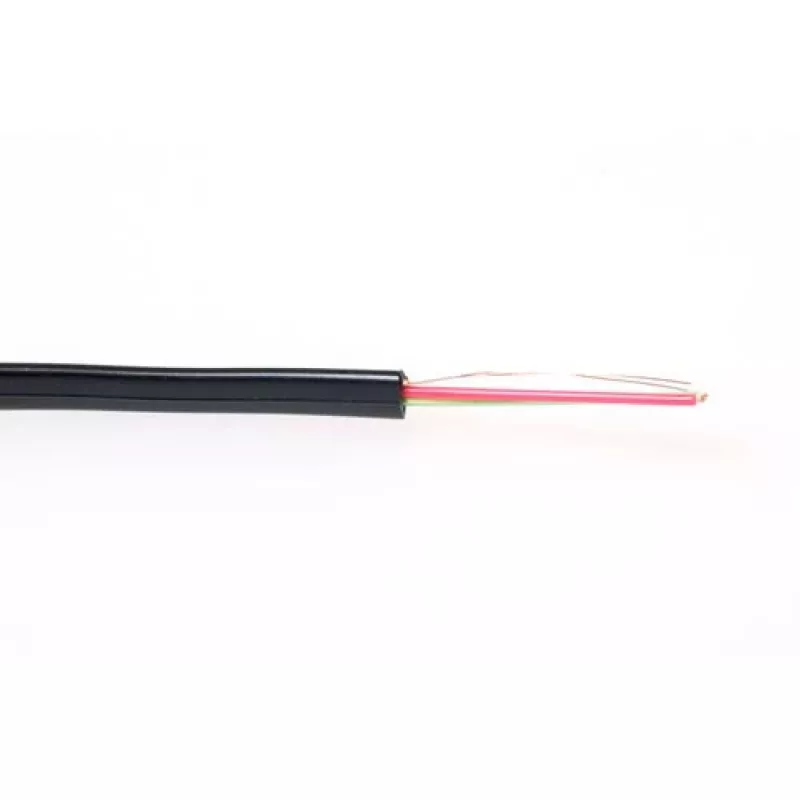

Modular Flatcable in black with 4 conductors, supplied on a 100 metre drum. Each conductor is a 7x0.16 mm stranded wire (AWG26), designed for signal and low-voltage applications in modular systems where a flat cable format is required.

Advantages

The ACT Modular flat cable offers a compact, flat profile that simplifies routing in tight spaces and panels. Stranded 7x0.16 mm conductors provide improved flexibility compared with solid cores, while the AWG26 gauge suits many low-voltage signal and control uses. The black jacket gives a neutral appearance and helps conceal the cable in installations.

Suitable for

• Modular patch panels and backplanes
• Control and signal wiring in equipment racks
• DIY electronics and low-voltage installations
• Wire harnesses where flat profile is required

Key specifications

• Brand: ACT
• Model / MPN: TD604Z
• Conductors: 4 (each 7x0.16 mm stranded)
• Conductor gauge: AWG26
• Colour: Black
• Length: 100 m (drum)
• EAN: 8716065132052

How to use

Cut the required length from the 100 m drum and strip the jacket and conductor insulation according to the connector or terminal specifications being used. Route the flat cable along the shortest path that preserves bend radius and secures it with appropriate clips or cable ties. Terminate conductors to modular connectors, crimp terminals or solder points following standard wiring practices and applicable safety rules.

Recommendations

For reliable performance, avoid repeated sharp bends and excessive tensile load. Verify conductor identification before termination and use suitable strain relief where the cable exits enclosures or connects to moving parts.
