Biamp Commercial Audio ALINP volumeregelaar

In lots of applications a local input control can be a useful and above all a timesaving product. No complex devices with multiple buttons to control -- just plug in and control the volume, nothing more, nothing less!

Especially in rooms where very often a music source or microphone is used, the ALINP plays its role. Think of classrooms where each hour a different teacher uses the classroom and wants to plug in his laptop or meeting rooms where presentations are given on a regular basis. What about multi-function rooms, bars, restaurants or banquet rooms? With the ALINP you can connect your device in a blink of an eye!

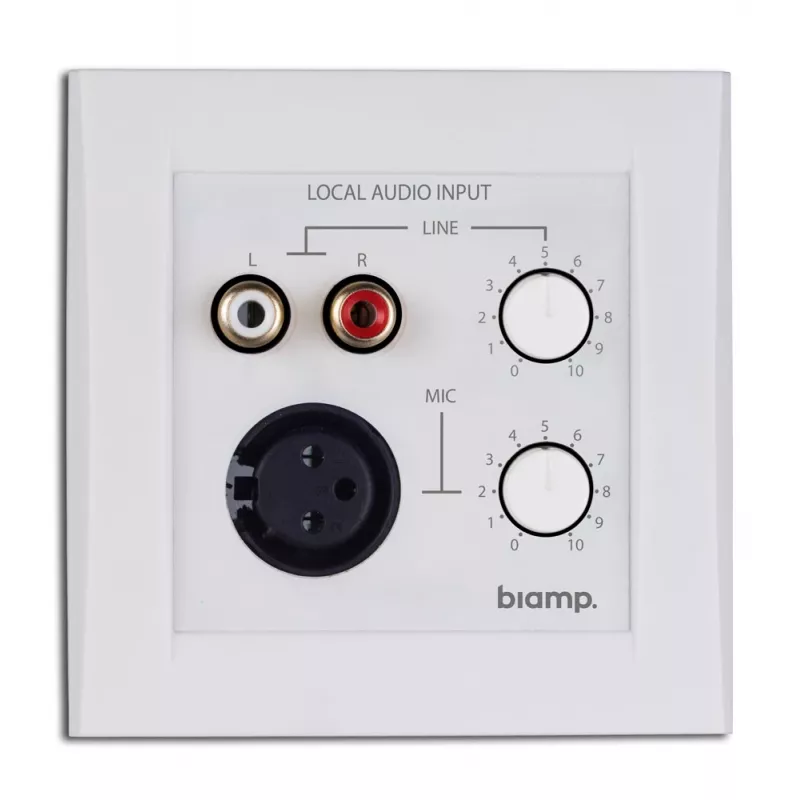

The ALINP is a local input wall control panel that makes it possible to connect a music source and/or dynamic microphone. The connected music source (via stereo line-in summed to mono internally) and microphone (via XLR-input) have individual volume control. The built-in mic pre-amplifier and high-quality input transformer (to avoid ground loops) guarantees an exceptional audio quality. The line and microphone input are automatically mixed together so that only one input at your pre-amplifier or mixing amplifier is used. The XLR microphone input is not providing phantom power.

Biamp Commercial Audio ALINP. Type: Rotary volume control, Mounting type: Wall-mounted, Product colour: White. Frequency range: 50 - 20000 Hz, Input impedance: 8500 Ω, Signal-to-Noise Ratio (SNR): 86 dB. Export Control Classification Number (ECCN): EAR99. Width: 93 mm, Depth: 45 mm, Height: 83 mm. Package width: 75.9 mm, Package depth: 86.1 mm, Package height: 97 mm
