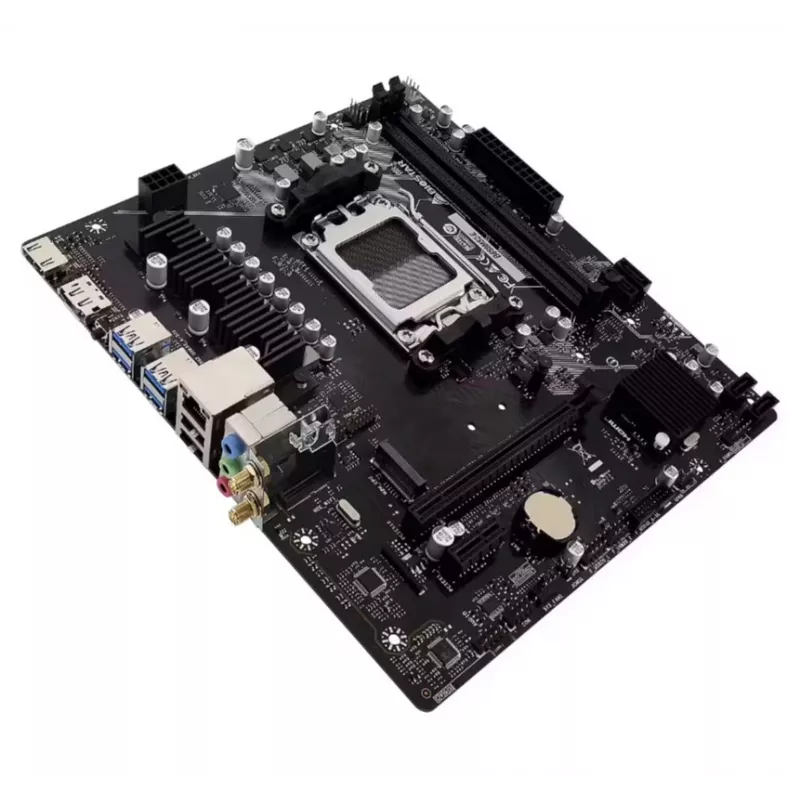

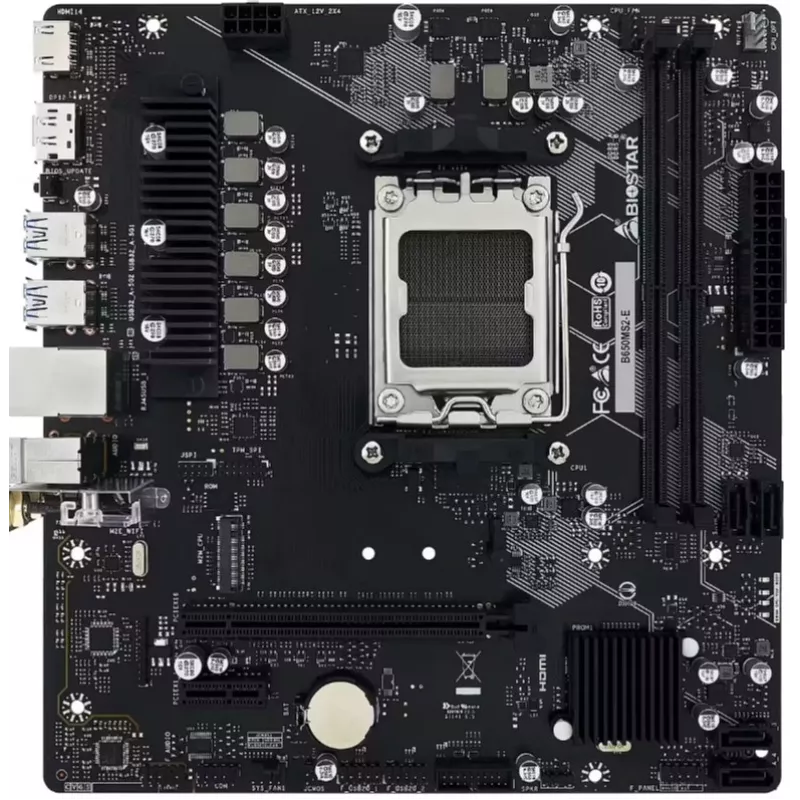

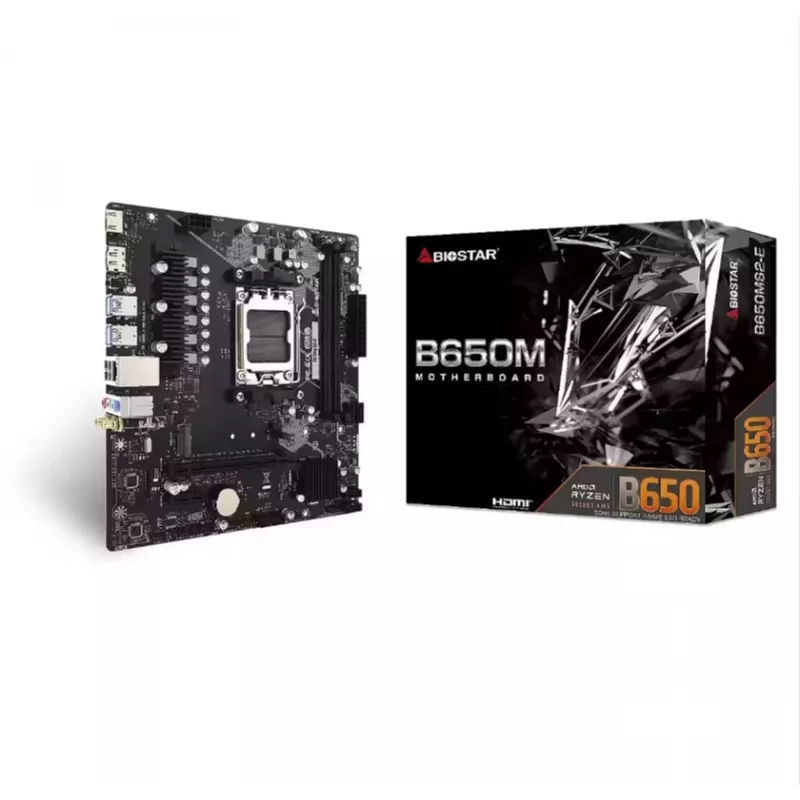

BIOSTAR B650MS2-E moederbord, AMD AM5, DDR5, Micro ATX

The BIOSTAR B650MS2-E is a high-performance Micro ATX motherboard built on the AMD B650 chipset, supporting AMD Ryzen 7000 Series processors with the AM5 socket. It offers a robust feature set including DDR5 memory support, PCIe 5.0 for M.2 storage, and 2.5 Gigabit Ethernet, making it an ideal foundation for a powerful and reliable desktop system.

Advantages

This motherboard delivers excellent performance and connectivity for modern computing needs. With support for DDR5 memory up to 6000+ MHz (OC), it ensures fast data access and smooth multitasking. The inclusion of PCIe 5.0 for one M.2 slot provides ultra-fast storage speeds, while the Realtek 2.5 Gigabit LAN offers low-latency networking for gaming and content creation. The Micro ATX form factor fits a wide range of cases without sacrificing expandability.

Suitable for

• Gaming enthusiasts building a mid-range to high-end AMD Ryzen 7000 series system
• Content creators requiring fast storage and memory performance
• Home and office users seeking a reliable and upgradeable platform
• Compact PC builds where Micro ATX form factor is preferred

Key specifications

• Chipset: AMD B650
• CPU Socket: AMD AM5 (LGA 1718)
• Memory: 4 x DIMM, DDR5, up to 128 GB, max speed 6000+ MHz (OC)
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
• Storage: 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA III 6Gb/s
• LAN: Realtek RTL8125B 2.5 Gigabit Ethernet
• Audio: Realtek ALC897 7.1-Channel HD Audio
• Rear I/O: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, HDMI, DisplayPort
• Form Factor: Micro ATX

Recommendations

For optimal performance, pair this motherboard with an AMD Ryzen 7000 series processor and DDR5 memory. Ensure your power supply has an 8-pin CPU connector. The board supports Windows 10 and Windows 11 (64-bit).
