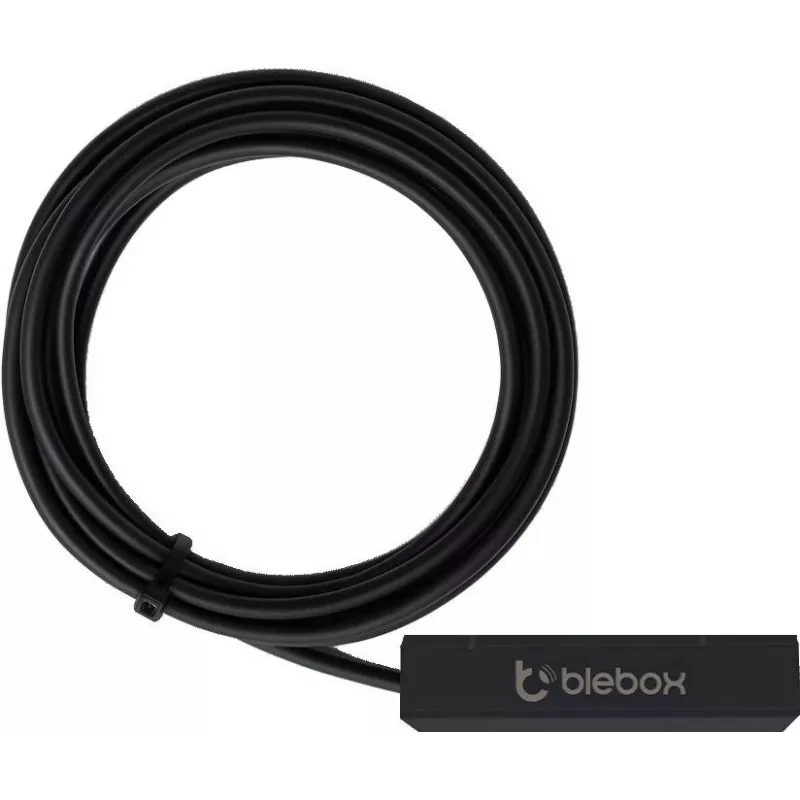

BleBox openSensor magneetcontactsensor antraciet 2m

The BleBox openSensor is a Wi-Fi-enabled magnetic contact sensor designed for monitoring doors, windows, gates, drawers, and cabinets. With a 2-meter cable and a sleek anthracite finish, it integrates seamlessly into the BleBox smart home ecosystem, allowing remote monitoring and automation via the wBox app, web browser, or REST API.

Advantages

Easy to install with adhesive or screw-mount options, the openSensor provides real-time alerts and can trigger other smart devices. Its low power consumption (<1W) and flexible power supply (5V DC microUSB or 12-24V DC) make it suitable for various applications. Compatible with Home Assistant, OpenHAB, and Domoticz for advanced automation.

Suitable for

• Monitoring doors and windows for security
• Automating lighting or alarms when a gate opens
• Detecting drawer or cabinet openings
• Integrating with existing smart home systems

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Sensor type: Magnetic contact (reed switch)
• Cable length: 2 meters
• Power: 5V DC (microUSB) or 12-24V DC
• Power consumption: <1W
• Operating temperature: -20°C to 50°C
• Enclosure material: ABS plastic
• Protection class: IP20 (main module)
• Mounting: Adhesive or screw-mount
• Color: Anthracite

Recommendations

For optimal performance, ensure a stable Wi-Fi network. Use the wBox app for easy setup and configuration. The sensor is ideal for enhancing home security and automating daily routines.
