Bloeddrukmeter Esperanza ECB005 automatische meting met LCD-display

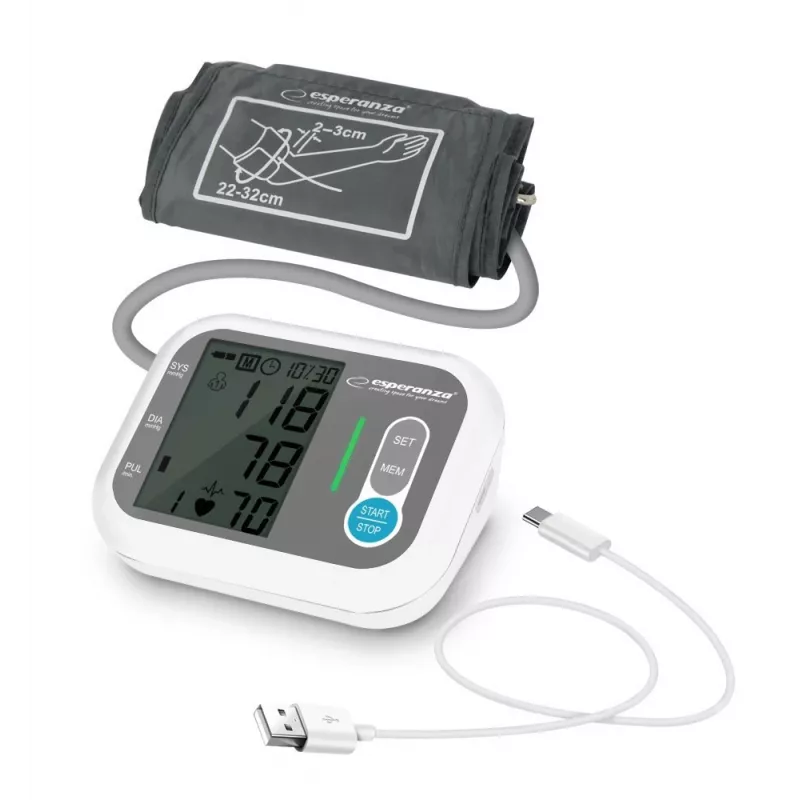

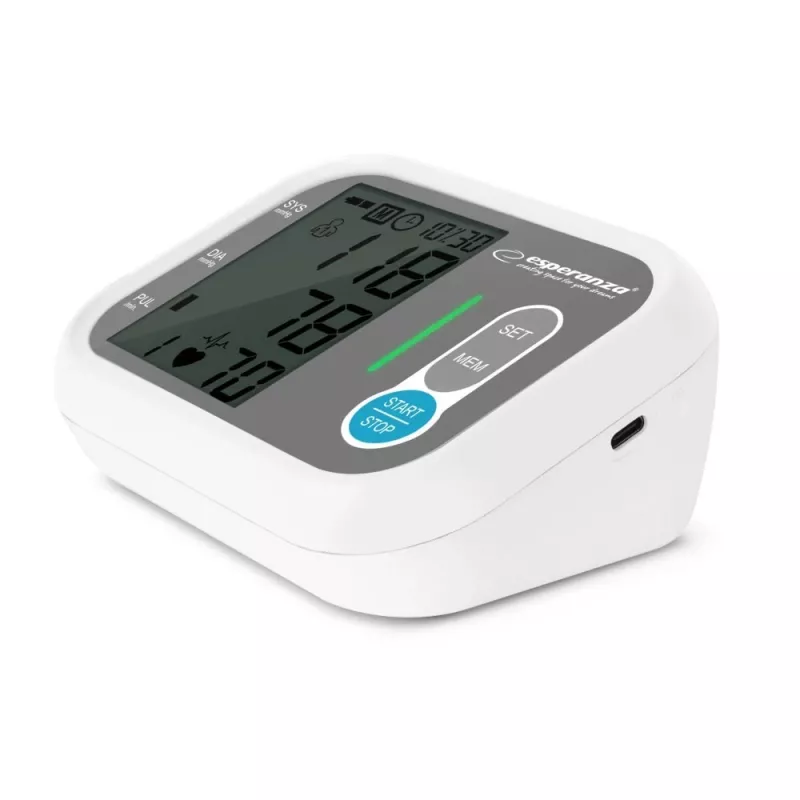

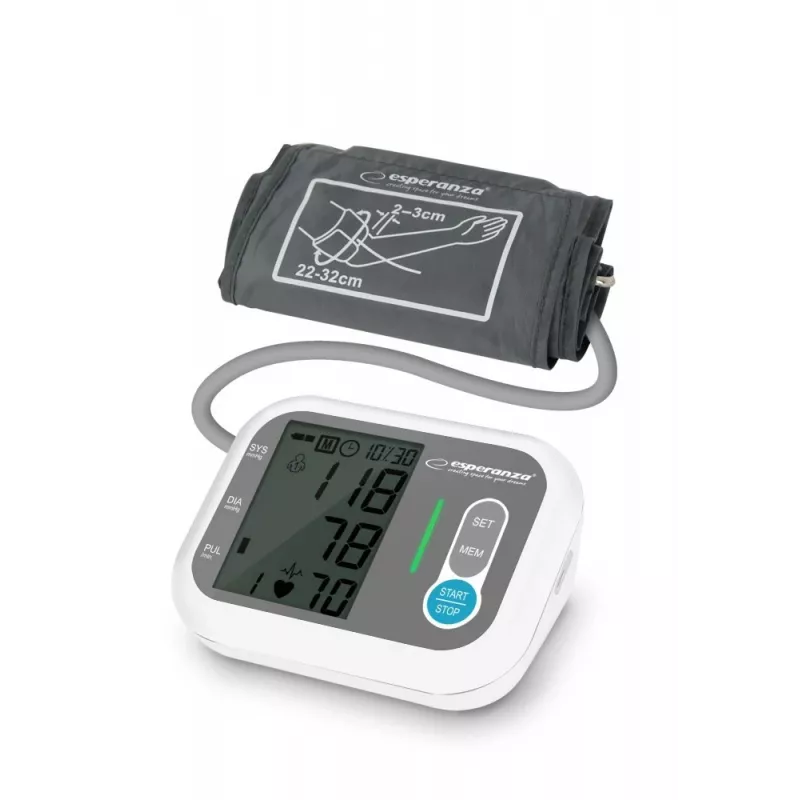

The Esperanza ECB005 automatic blood pressure monitor is an arm-type device with an ultra-slim housing and a large LCD display that shows systolic, diastolic and pulse readings. It stores measurements with date and time, allowing monitoring of changes over time and supporting home use and telemedicine consultations.

Advantages

The device uses an oscillometric measurement method with a resistive pressure sensor to deliver readings with 1 mmHg resolution and pressure accuracy within ±3 mmHg; pulse accuracy is ±5% of the reading. The large 52 x 70 mm LCD and one-button operation simplify reading results, while automatic memory stores up to 90 measurements per user (180 total). The unit supports power from 4×AA batteries or a 5V DC adapter and includes auto power-off after 60 seconds of inactivity.

Suitable for

• Home monitoring of blood pressure for adults
• Tracking systolic/diastolic pressure and pulse over time
• Preparing data for medical consultations or remote care

Key specifications

• Measurement method: oscillometric
• Pressure sensor: resistive
• Measurement ranges: DIA 40–190 mmHg, SYS 60–250 mmHg, pulse 40–180 /min
• Display: LCD 52 x 70 mm
• Product dimensions: 101 x 133 x 58 mm
• Cuff size: 22–32 cm
• Memory: 90 measurements per user (2 users, 180 total)
• Resolution: 1 mmHg; accuracy: pressure ±3 mmHg, pulse ±5%

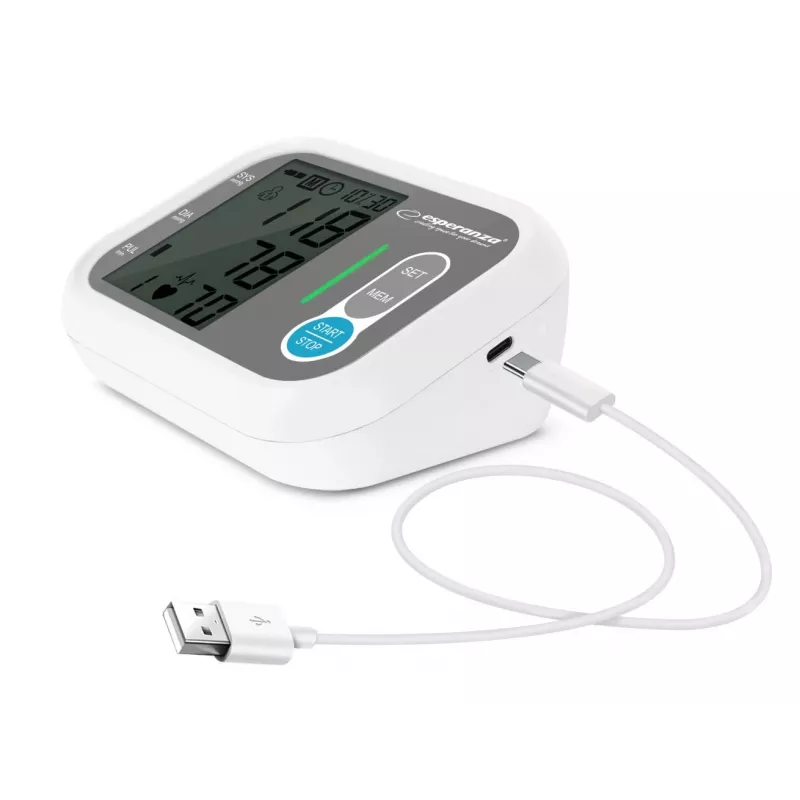

• Power: 4×AA 1.5V (not included) or AC adapter 5V DC 1A (not included); USB‑C cable 50 cm
• Operating conditions: temperature 5–40 °C, humidity 15–80% RH
• Storage/shipping conditions: temperature -25–55 °C, humidity 10–93% RH
• Atmospheric pressure range: 86–106 kPa
• Auto power off: 60 seconds

How to use

Place the cuff on the upper arm following the printed guide so the cuff edge is about 2–3 cm above the elbow crease. Sit upright with the arm supported at heart level and press the single operation button to start measurement. The device will inflate the cuff automatically, display systolic/diastolic pressure and pulse on the LCD, and save the result with date and time. Remove the cuff after deflation.

Recommendations

For consistent measurements, take readings at the same time of day, avoid exercise, caffeine and smoking 30 minutes before measurement, and rest for 5 minutes while seated. Use the cuff size 22–32 cm provided and consult a healthcare professional for interpretation of results outside normal ranges.
