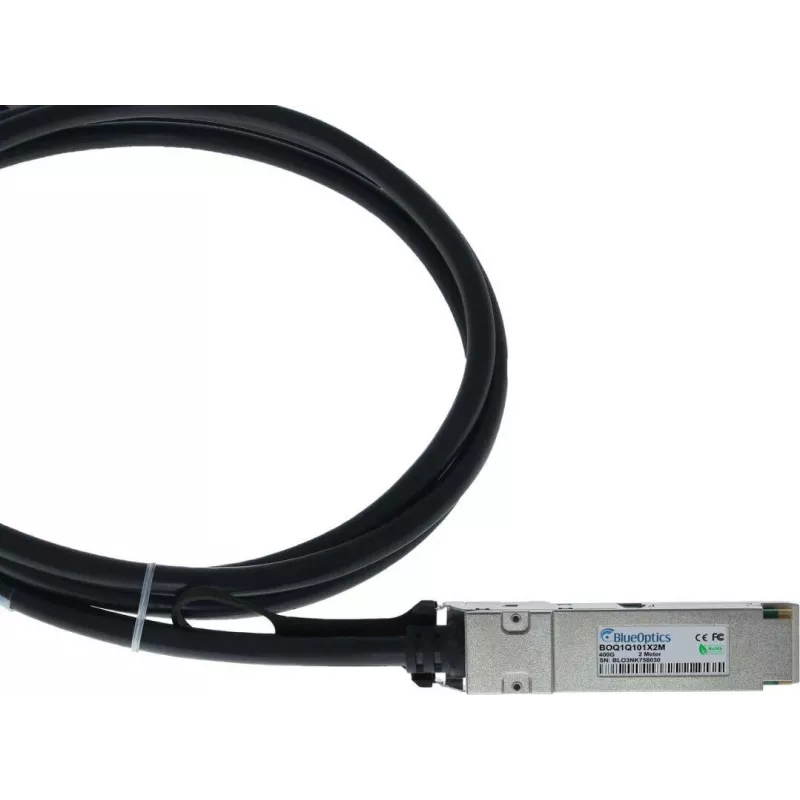

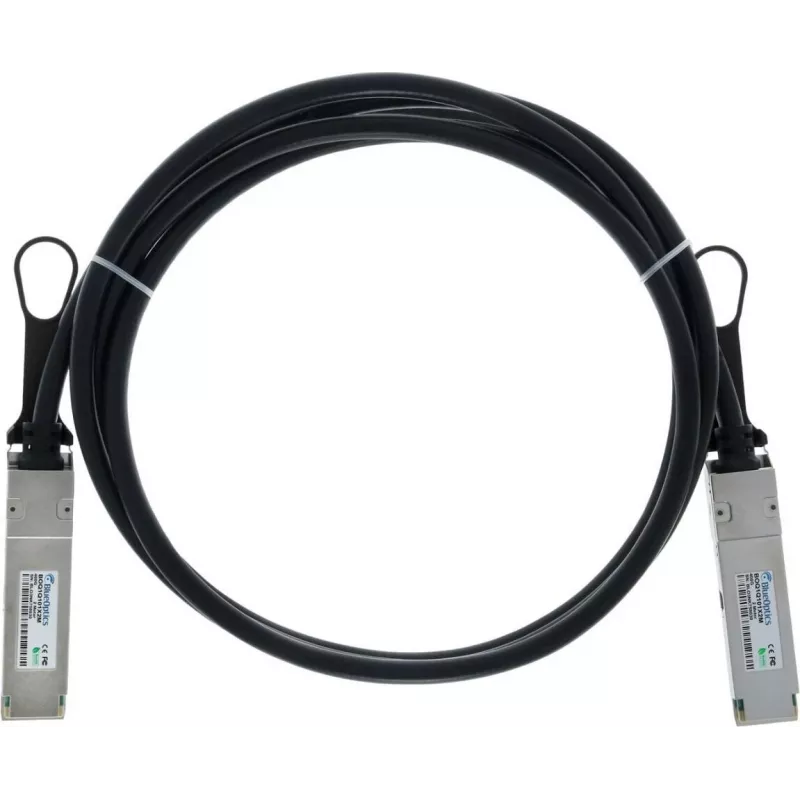

BlueLAN 400G QSFP112 Direct Attach koperkabel, 0,5 m, compatibel met Amphenol NJAAKK-0006 NJAAKK-0006-BL

High-density data centers and HPC clusters need reliable, low-latency 400G links without the cost and power draw of optical transceivers. This BlueLAN passive Direct Attach Copper (DAC) cable delivers 400GBASE-CR4 connectivity in a compact 0.5 m length, engineered for top-of-rack and adjacent-rack interconnects.

Who is it for

Network architects and data center operators deploying 400G Ethernet or InfiniBand NDR fabrics who want a plug-and-play, zero-power copper solution. It is a compatible replacement for Amphenol NJAAKK-0006 assemblies.

Main features

• QSFP112 to QSFP112 connectors, passive copper construction
• Supports 400G Ethernet (400GBASE-CR4) and InfiniBand NDR
• PAM4 signaling, 4x 100G lanes, IEEE 802.3ck compliant
• Hot-swappable, no power consumption (passive)

Specifications

• Cable length: 0.5 m
• Data rate: 400 Gbps
• Connector type: QSFP112 (both ends)
• Cable material: Copper
• Protocol support: Ethernet, InfiniBand NDR
• Form factor: QSFP112
• Signaling: PAM4
• Voltage supply: 3.3V
• Channel configuration: 4x 100G lanes
• Application: Data center interconnect, HPC

Tips

For best signal integrity, keep bend radius above the manufacturer's minimum and avoid stretching the cable. Passive DACs are ideal for short reaches; for longer distances consider active optical cables.
