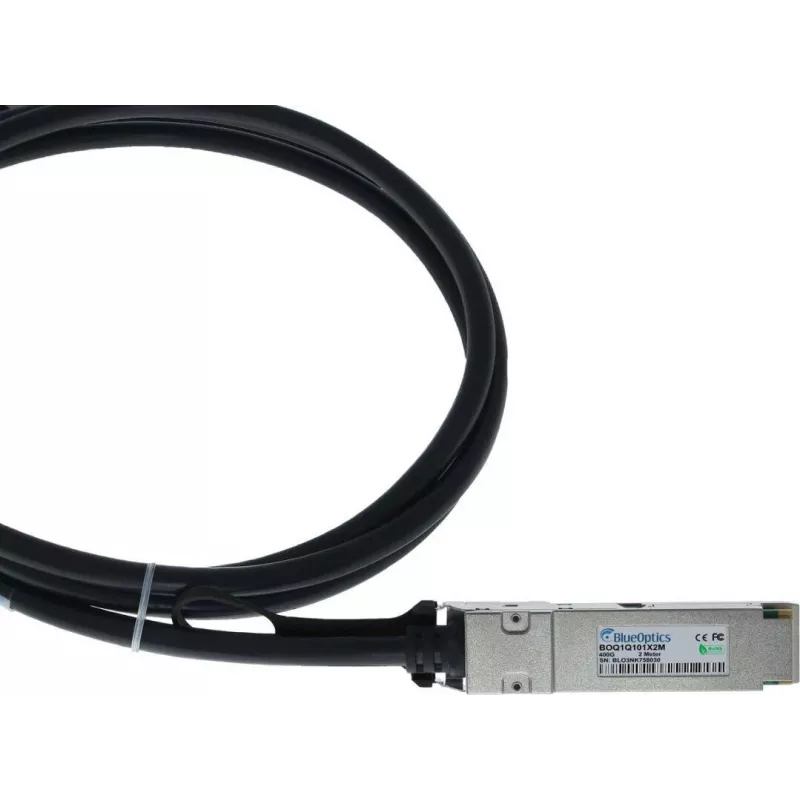

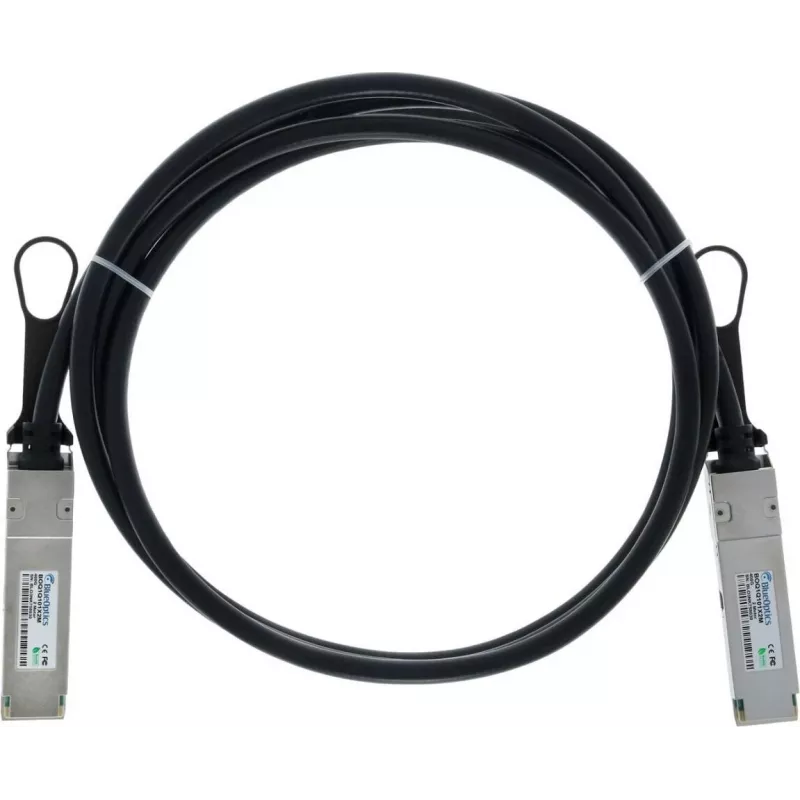

BLUELAN compatibele Amphenol NJAAKK-0007 QSFP112 Direct Attach-kabel, 400GBASE-CR4, Infiniband, 1,5 m (NJAAKK-0007-BL)

High-density data centers and HPC clusters need reliable, low-latency 400G links without the cost and power draw of optical transceivers. This BLUELAN direct attach copper cable replaces the Amphenol NJAAKK-0007, delivering full 400GBASE-CR4 and Infiniband NDR performance over a 1.5-meter passive QSFP112 assembly.

Who is it for

Network engineers and data center operators deploying 400G Ethernet or Infiniband NDR in racks and adjacent cabinets. It is a drop-in compatible alternative to the Amphenol original, ideal for top-of-rack to server or storage connections.

Main features

• QSFP112 to QSFP112 passive copper DAC
• 400 Gbps data rate, 400GBASE-CR4 Ethernet standard
• Infiniband NDR compatible
• 1.5 meter cable length
• Hot swappable, EMI/RFI shielded
• Power consumption under 0.5 W
• Operating temperature 0°C to 70°C

Specifications

• Cable type: Direct Attach Copper (DAC)
• Connector A: QSFP112
• Connector B: QSFP112
• Data rate: 400 Gbps
• Ethernet standard: 400GBASE-CR4
• Infiniband support: NDR compatible
• Length: 1.5 m
• Material: Copper
• Transceiver type: Passive
• Compatible original part: Amphenol NJAAKK-0007
• Application: Data center interconnect, HPC, network storage
• Power consumption: < 0.5 W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Hot swappable: Yes
• EMI/RFI protection: Yes (shielded)

Tips

Passive DACs are best for short reaches up to 3 meters; for longer distances consider active optical cables. Ensure both switch and NIC ports support QSFP112 and 400G signaling before deployment.
