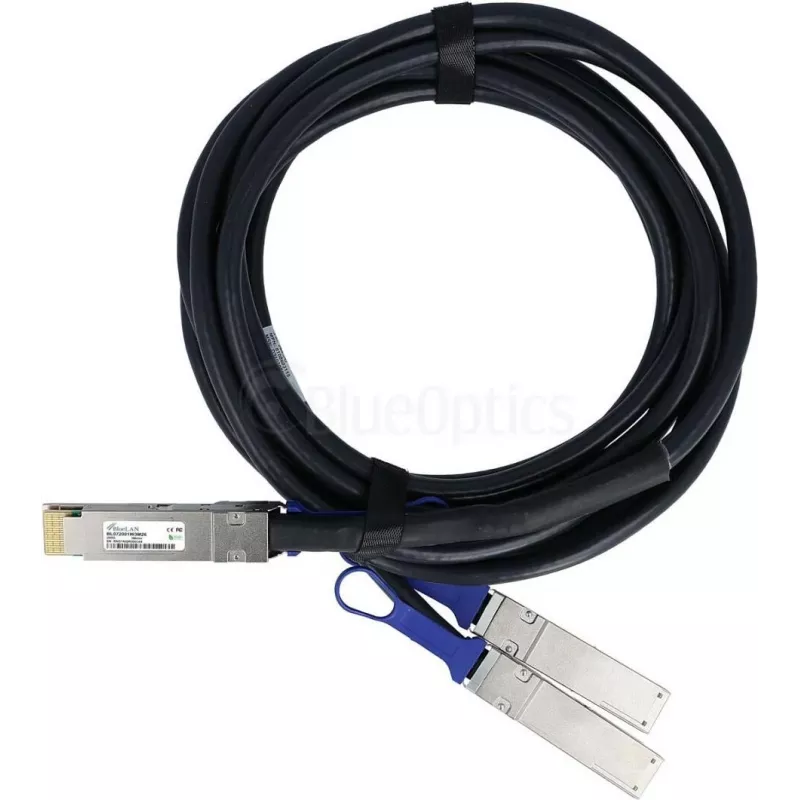

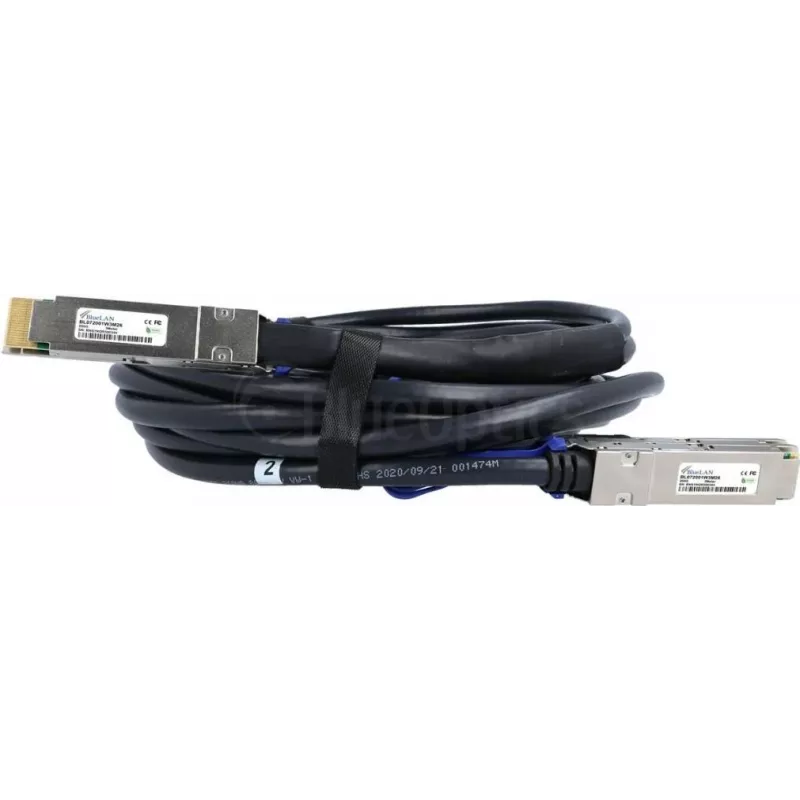

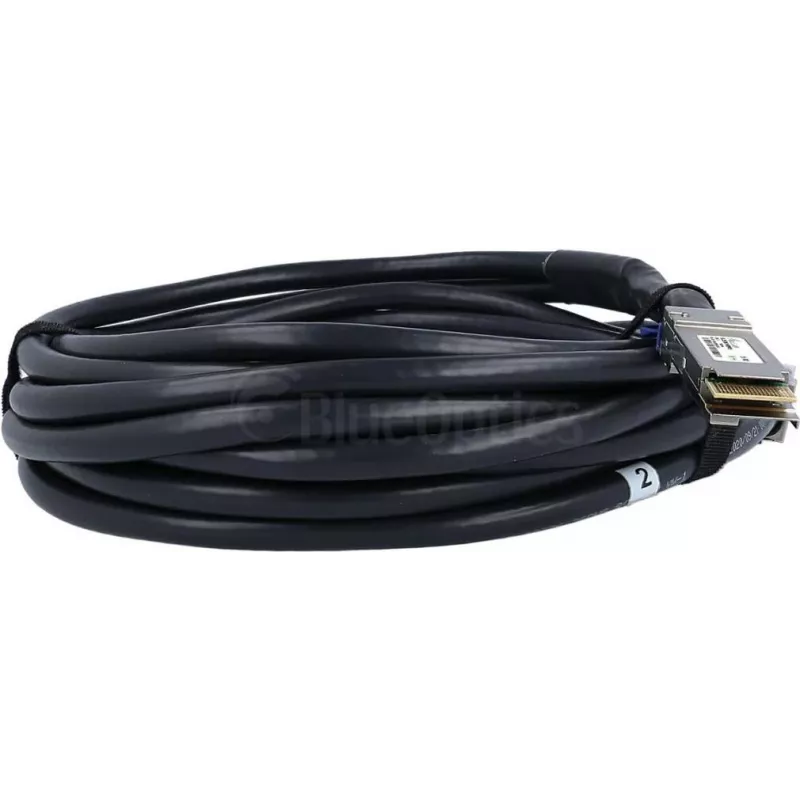

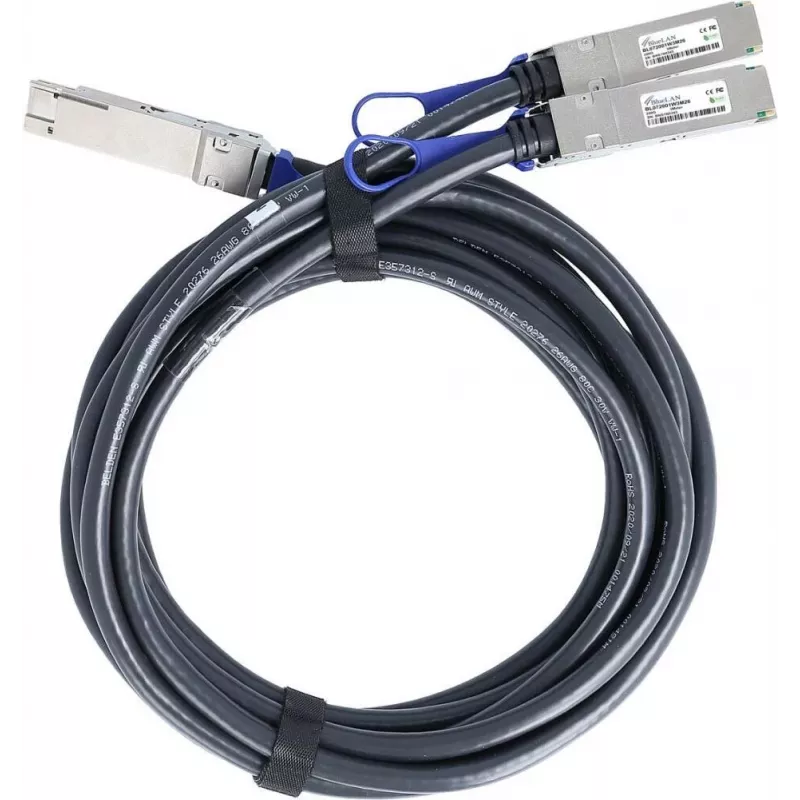

BlueLAN 980-9I99F-00H002-BL Compatibele NVIDIA 200G QSFP56 naar 2x100G QSFP56 passieve DAC breakout-kabel

High-density InfiniBand HDR clusters often require a reliable way to connect a single 200G QSFP56 port to two 100G QSFP56 ports without adding active components. This BlueLAN passive direct attach copper (DAC) breakout cable solves that problem by providing a direct, low-latency link between compatible NVIDIA Mellanox switches and network adapters.

Who is it for

System integrators and data center operators deploying NVIDIA Mellanox InfiniBand HDR equipment who need a cost-effective, low-power interconnect for short reaches within racks or adjacent racks. It is suitable for high-performance computing (HPC), AI/ML clusters, and enterprise data centers.

Main features

• Compatible with NVIDIA Mellanox part number 980-9I99F-00H002
• Passive copper cable – no signal regeneration, minimal power draw
• Aggregate data rate: 200 Gbps (2x 100 Gbps breakout)
• QSFP56 to 2x QSFP56 connectors, hot-swappable
• Low power consumption: less than 0.5 W
• Operating temperature range: 0°C to 70°C

Tips

Verify the exact reach required for your rack layout. Passive DAC cables are intended for short distances (typically up to a few meters) and are not suitable for long-haul connections. Ensure both ends are firmly seated to maintain signal integrity.
