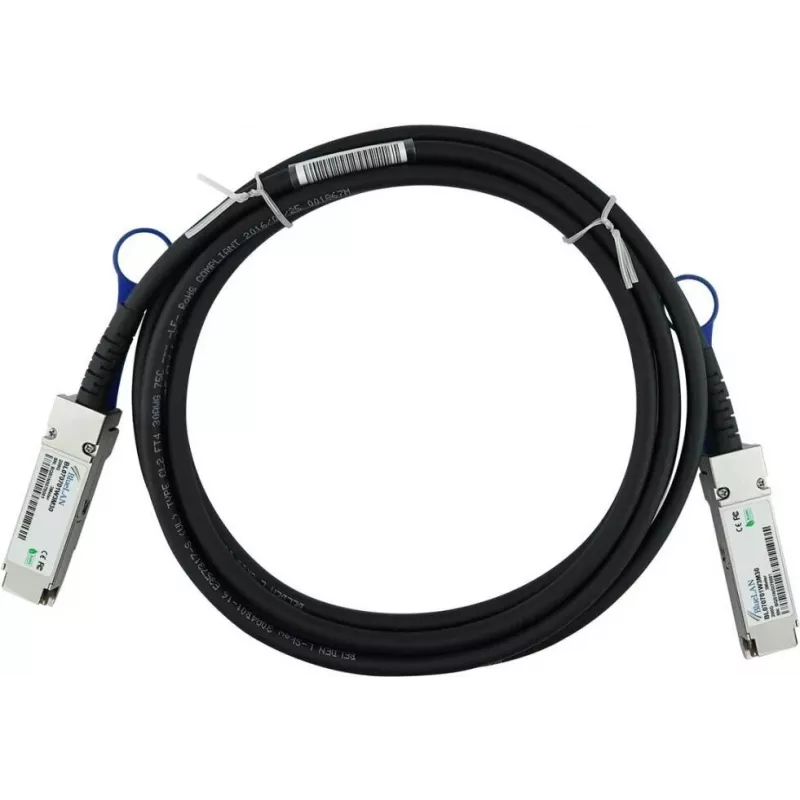

BLUELAN BlueOptics Alcatel-Lucent QSFP-200G-C2M QSFP56 Direct Attach Copper-kabel, 200Gb/s, 30AWG, 2 meter

The BLUELAN BlueOptics Alcatel-Lucent QSFP-200G-C2M is a high-performance QSFP56 Direct Attach Copper (DAC) cable designed for 200 Gigabit Ethernet and InfiniBand HDR applications. This passive copper cable assembly provides a cost-effective, low-power solution for short-reach interconnects in data centers and high-performance computing environments. With a length of 2 meters and 30 AWG construction, it ensures reliable signal integrity and minimal latency.

Advantages

This DAC cable offers several key benefits: it consumes less than 0.5W power, eliminating the need for active components; it is fully MSA compliant, ensuring interoperability with Alcatel-Lucent and other standard equipment; and it supports PAM4 modulation across 4 lanes at 50 Gb/s per lane, delivering 200 Gb/s aggregate bandwidth. The passive design also reduces cost and complexity compared to active optical cables.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise networking within racks
• InfiniBand HDR environments

Key specifications

• Data Rate: 200 Gb/s
• Cable Type: Direct Attach Copper (DAC)
• Connector Type: QSFP56 to QSFP56
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Form Factor: QSFP56
• Compatibility: Alcatel-Lucent (MSA Compliant)
• Protocol Support: Ethernet, InfiniBand HDR
• Transceiver Type: Passive
• Number of Lanes: 4 lanes
• Lane Speed: 50 Gb/s per lane
• Modulation: PAM4
• Impedance: 100 Ohm Differential
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W
• Compliance: RoHS, CE, FCC, MSA Compliant

Recommendations

For optimal performance, use this cable with compatible QSFP56 ports on switches, routers, and servers. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is ideal for short-distance, high-bandwidth links within a rack or between adjacent racks.
