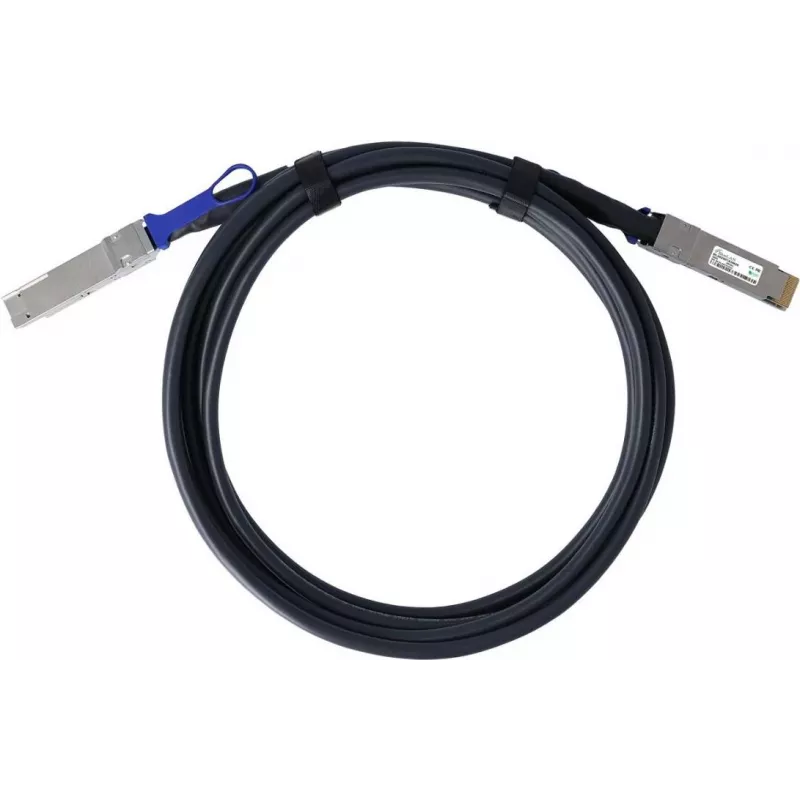

BlueOptics Fortinet FN-CABLE-QSFPDD-DAC-01 QSFP-DD BlueLAN Direct Attach-kabel, 400GBASE-CR4, Ethernet, 26 AWG, 1 meter

The BlueOptics Fortinet FN-CABLE-QSFPDD-DAC-01 is a high-performance QSFP-DD Direct Attach Copper (DAC) cable designed for 400 Gigabit Ethernet networks. This passive twinax cable provides a cost-effective and low-power solution for short-reach interconnects in data centers and high-speed networking environments. With a length of 1 meter and 26 AWG wire gauge, it ensures reliable signal integrity for 400GBASE-CR4 applications.

Advantages

This DAC cable offers several benefits: it is hot-swappable, consumes very low power, and provides a simple plug-and-play installation without the need for optical transceivers. The passive design ensures zero power consumption at the cable level, reducing overall system power and heat. It is fully compatible with Fortinet equipment and meets industry standards for performance and reliability.

Suitable for

• Data center top-of-rack to server connections
• High-speed networking within racks
• 400GBASE-CR4 Ethernet links
• Fortinet switches and routers with QSFP-DD ports

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-CR4
• Connector Type (End A): QSFP-DD
• Connector Type (End B): QSFP-DD
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Cable Material: Copper Twinax
• Transceiver Type: Passive
• Compatibility: Fortinet FN-CABLE-QSFPDD-DAC-01 (OEM Equivalent)
• Form Factor: QSFP-DD
• Number of Lanes: 4
• Data Transfer Protocol: Ethernet
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP-DD ports. This cable is ideal for short-distance, high-bandwidth connections within a data center. Always handle with care to avoid damage to the connectors.
