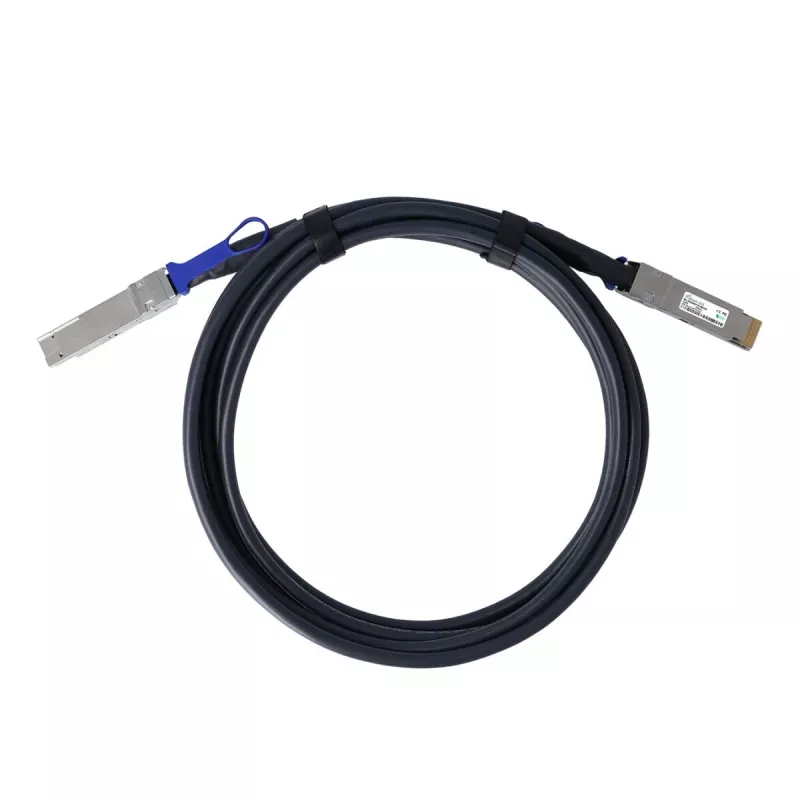

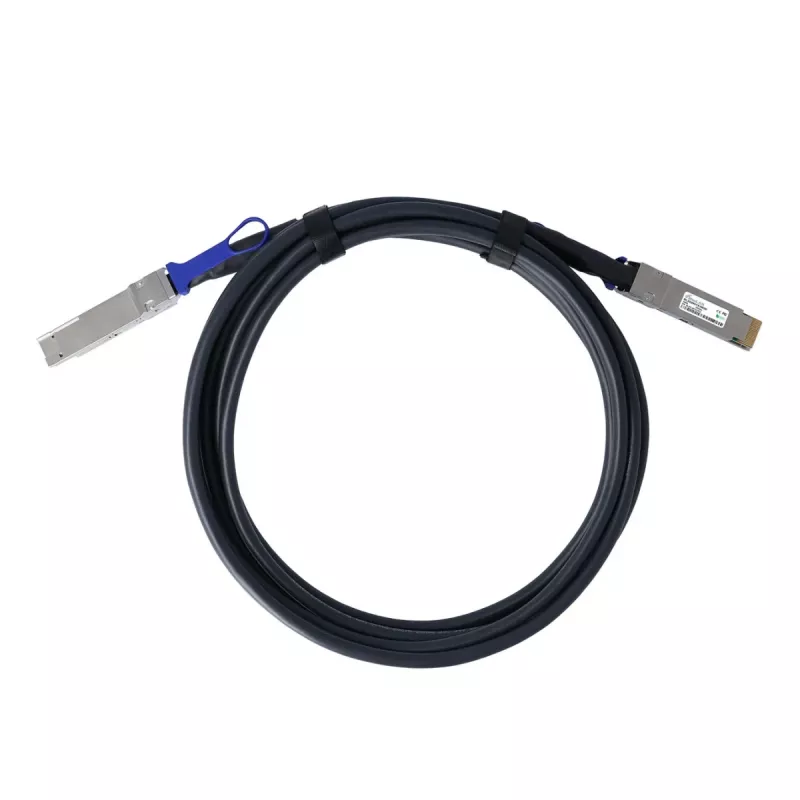

BlueOptics Fortinet FN-CABLE-QSFPDD-DAC-02 Compatible BlueLAN BL292901X2M26 QSFP-DD Direct Attach Copper-kabel, 400GBASE-CR4, 26 AWG, 2 meter

The BlueOptics Fortinet FN-CABLE-QSFPDD-DAC-02 compatible BlueLAN BL292901X2M26 is a high-performance QSFP-DD Direct Attach Copper (DAC) cable designed for 400GBASE-CR4 Ethernet applications. This passive twinax cable delivers reliable, low-latency connectivity for data center interconnects and high-performance networking environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed links. With a passive design, it consumes minimal power while providing full 400 Gbps throughput. The 26 AWG construction ensures signal integrity over the 2-meter length, making it ideal for top-of-rack and server-to-switch connections.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise networking
• Fortinet compatible equipment requiring QSFP-DD interfaces

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Cable Type: Passive Twinax
• Connector Type (End A): QSFP-DD
• Connector Type (End B): QSFP-DD
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-CR4
• Cable Length: 2 Meter
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure your network equipment supports QSFP-DD interfaces and 400GBASE-CR4 standards. This cable is a direct replacement for Fortinet FN-CABLE-QSFPDD-DAC-02 and is part of the BlueLAN product line.
